Icom IC-F3021T/S Instruction Manual page 25

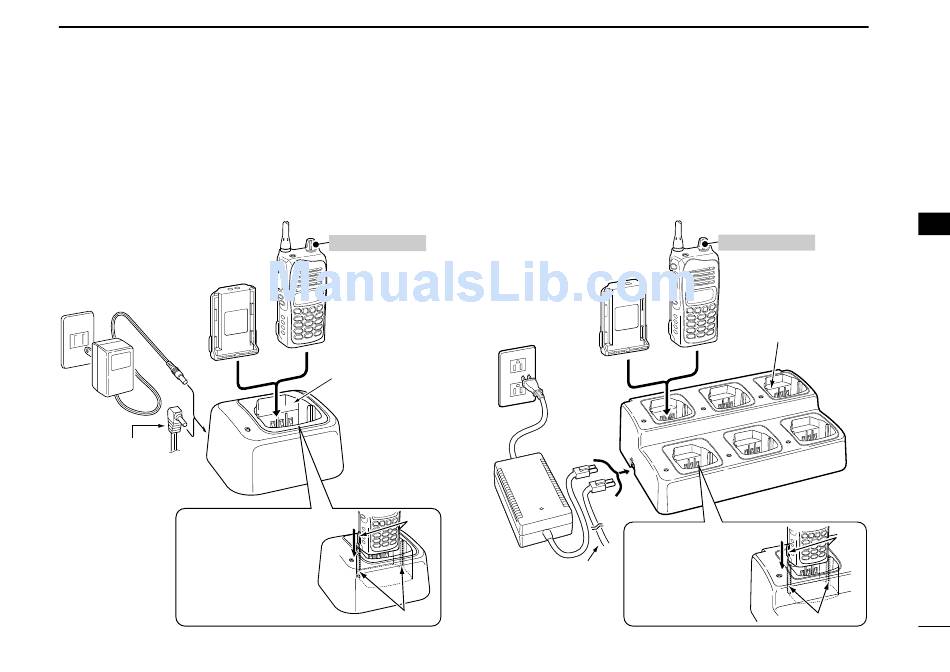

D Rapid charging with the BC-119N+AD-106
The optional BC-119N provides rapid charging of battery
packs. The following items are additionally required.
• AD-106 charger adapter
• An AC adapter (may be supplied with BC-119N depending
on version) or the DC power cable (OPC-515L/CP-17L).
Battery
AC adapter
pack
(Not supplied with
some versions.)
Optional OPC-515L
(for 13.8 V power
source) or CP-17L
(for 12 V cigarette
lighter socket) can
be used instead of
IMPORTANT!:
the AC adapter.
Ensure the guide lobs
on the battery pack are
correctly aligned with
the guide rails inside
the charger adapter.
Transceiver
Turn power OFF
AD-106 charger
adapter is installed
in BC-119N.
Lobs
Guide rails
BATTERY CHARGING
D Rapid charging with the BC-121N+AD-106
The optional BC-121N allows up to 6 battery packs to be
charged simultaneously. The following items are additionally
required.
• Six AD-106 charger adapters
• An AC adapter (BC-157) or the DC power cable (OPC-656)
Battery
pack
AC adapter
(Purchased
separately)
IMPORTANT!:
Ensure the guide lobs
on the battery pack are
DC power cable
(OPC-656) correctly aligned with
(Connect with the the guide rails inside
DC power supply; the charger adapter.
13.8 V/at least 7 A)
5
Transceiver
Turn power OFF
AD-106 charger
adapters are installed
in each slot.
Lobs
Guide rails
