Page 1: User Manual

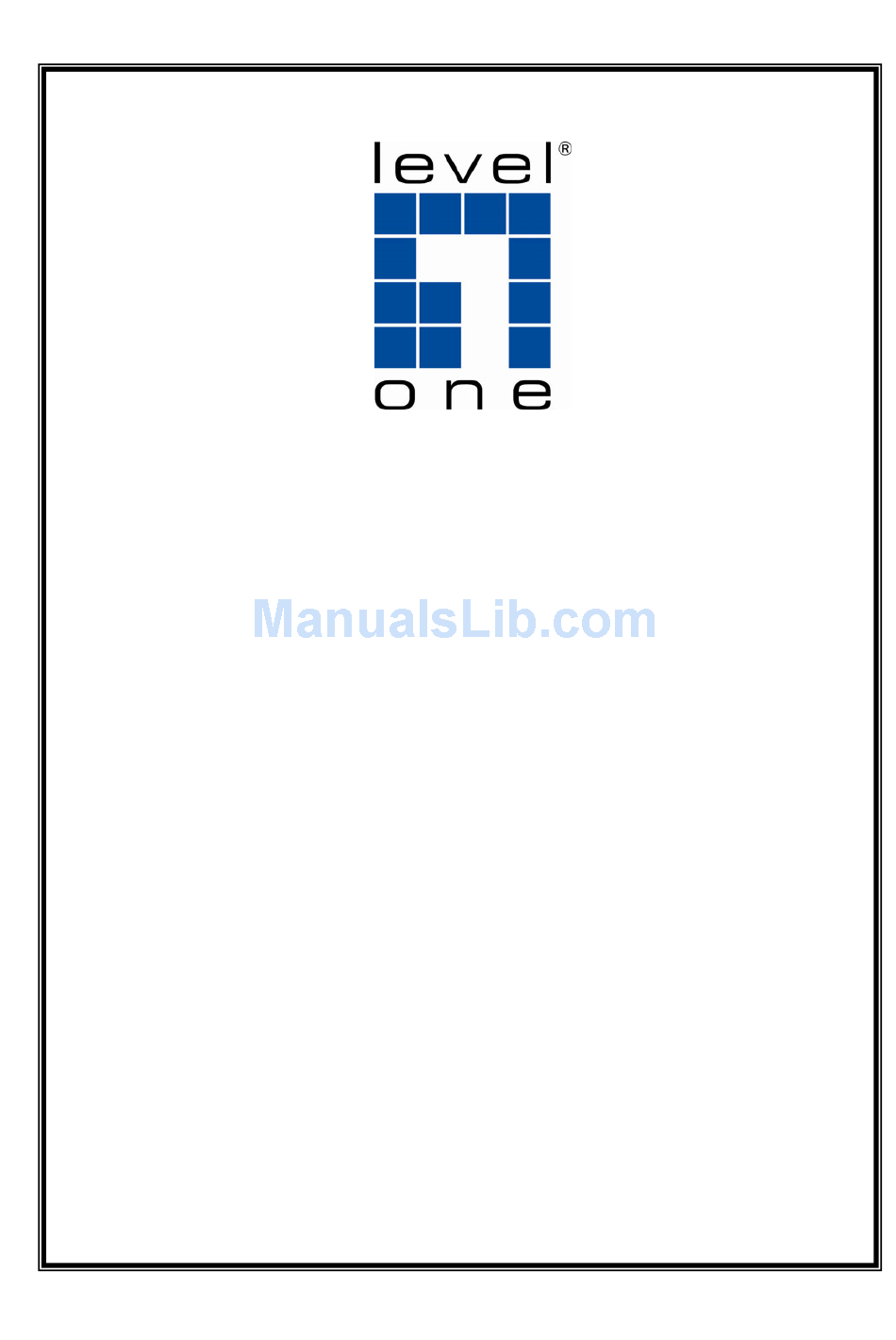

LevelOne User Manual GSW-2650 24-Port Fast Ethernet TP + 2-Port Gigabit Ethernet TP Switch Ver. 1.0.0-0712... -
Page 2: Fcc Warning
FCC Warning This Equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 3: Table Of Contents
Content INTRODUCTION..............1 Features........................ 1 Package Contents....................2 HARDWARE DESCRIPTION ..........3 Physical Dimensions..................... 3 Front Panel ......................3 LED Indicators ...................... 4 Gigabit Port LED Indicator ..................5 Rear Panel......................6 Desktop Installation....................6 Attaching Rubber Pads ..................6 Rack-mounted Installation .................. -
Page 4: Introduction
Introduction LevelOne GSW-2650 is a multi-port Switch that can be used to build high-performance switched workgroup networks. This switch store-and-forward device that offers low latency for high-speed networking. The switch is targeted at workgroup, department or backbone computing environment. LevelOne GSW-2650 Switch has 24 auto-sensing 10/100Base-TX RJ-45 ports and 2 auto-detect Giga port for higher connection speed. -
Page 5: Package Contents
Pause-frame for full duplex mode Back-pressure for half duplex mode Fan free design Package Contents Unpack the contents of the GSW-2650 Switch and verify them against the checklist below: GSW-2650 Power Cord Rack-mounted Kit Four Rubber Pads User Manual Compare the contents of the GSW-2650 Switch package with the standard checklist above. -
Page 6: Hardware Description
This section mainly describes the hardware of the GSW-2650 Switch and gives a physical and functional overview on the certain switch. Physical Dimensions The GSW-2650 Switch physical dimensions is 440mm x 120mm x 44mm (W x D x H). Front Panel... -
Page 7: Led Indicators
LED Indicators The LED Indicators display real-time information of systematic operation status. The following table provides descriptions of LED status and their meaning. Status Description Green Power On Power Power is not connected Green The port works in 10/100 Full-duplex mode Blinks Networking is active (continuously) -
Page 8: Gigabit Port Led Indicator
Gigabit Port LED Indicator The following table provides descriptions of Gigabit ports’ LEDs status and their meaning. Status Description The port works in 10/100 Full-duplex or gigabit Green mode Blinks Networking is active (continuously) Blinks Act/Duplex (off for about 2 The port works in 10/100 Half-duplex mode seconds and on alternatively) -
Page 9: Rear Panel
Rear Panel The 3-pronged power plug is located at the rear panel of GSW-2650 as shown in Figure. The switch will work with AC in the voltage range of AC 100-240V and Frequency of 50-60Hz. The Rear Panel of GSW-2650 Desktop Installation Set the switch on a sufficiently large flat space with a power outlet nearby. -
Page 10: Power On
Then attach the remaining bracket to the other side of the switch. After having attached mounting brackets, position the GSW-2650 Switch in the rack by lining up the holes in the brackets with the appropriate holes on the rack. -
Page 11: Network Application
This section provides you a few samples of network topology in which the switch is used. In general, LevelOne GSW-2650 is designed as a segment switch which with its large address table (4k MAC address) and high performance, it is ideal for interconnecting networking segments. -
Page 12: Segment Uplink
Segment Uplink For enterprise networks where large data broadcasts are constantly processed, this switch is an ideal solution for department users to connect to the corporate backbone. For example, two Ethernet switches (with PCs, print server, and local server attached) are connected via 10/100/1000Base-TX cable. All the devices in this network can communicate with each other through the switches. -
Page 13: Troubleshooting
Troubleshooting This section is intended to help the user solve the most common problems on the GSW-2650. Incorrect connections The switch port can auto-detect straight or crossover cable when the user links switch with other Ethernet device. The RJ-45 connector should use correct UTP or STP cable;... -
Page 14: Improper Network Topologies
Improper Network Topologies It is important to make sure that users have a valid network topology. Common topology faults include excessive cable length and too many repeaters (hubs) between end nodes. In addition, the user should make sure that the network topology contains no data path loops. -
Page 15: Technical Specification
Technical Specification This section provides the specifications of GSW-2650. IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX Standard IEEE802.3ab 1000BASE-T IEEE802.3x Flow control and Back pressure System power (Green) LED Indicators Activity/Duplex (Green) Speed (Yellow) 10/100TX: 24 x RJ-45 with Auto MDI/MDI-X function Connector... - Page 16 Operation Humidity 10% ~ 90% (Non-condensing) Storage Temp. C ~ 70 Dimensions 440mm x 120mm x 44mm (W x D x H) FCC Class A EMI & Safety CE, CE/EN60950...
