Black Box LPB1308A User Manual

8-Port Gigabit 802.3at/af PoE Switch
Ethernet
switch
Mac ® PC Workstation PC PC Server Server PC PC

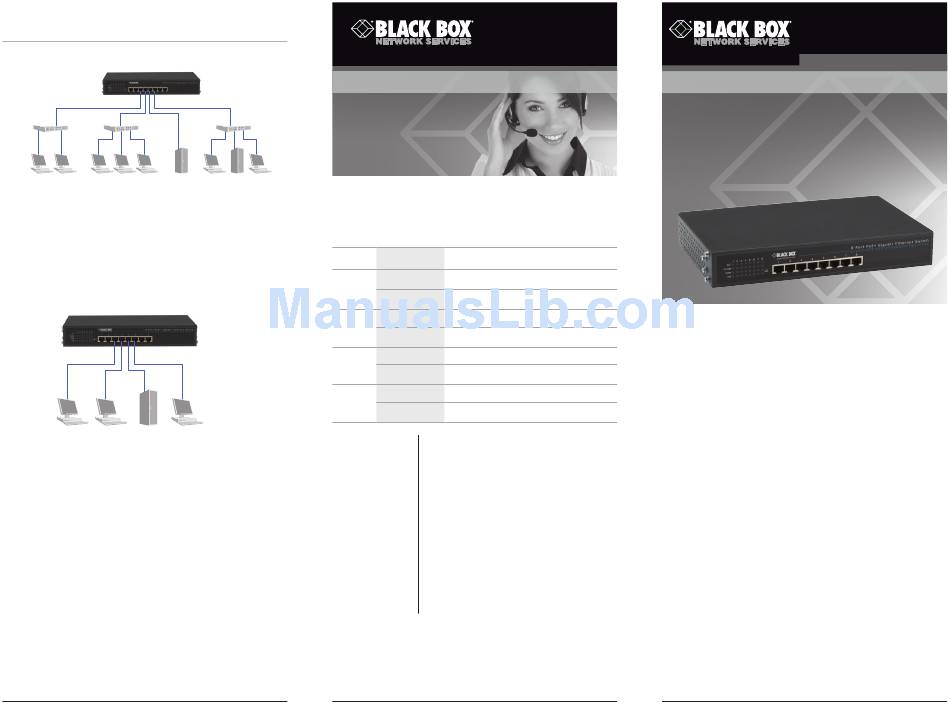

Figure 3-1. Application #1.
3.2 PC/Other Devices to 8-Port Gigabit
802.3at/af PoE Switch
You can connect this switch to PCs, servers, and other
network devices using a straight-through Ethernet
cable.
PC Mac Server Workstation
Figure 3-2. Application #2.
3.3 Connecting a Powered Device to the
Switch Using Power over Ethernet (PoE)
Using a CAT5 cable, connect the powered device (PD)
to any of the eight ports on the switch. The switch will
detect the PD and supply 48-V power to the device
over the CAT5 cable.
NOTE: The PD must comply with the IEEE 802.3at/af
standard.

4. Operation

LED indicators on the 8-Port Gigabit 802.3at/af PoE
Switch's front panel show status.
724-746-5500 | blackbox.com
LPB1308A
Ethernet
Black Box Tech
switch
Support: FREE! Live.
24/7. Tech support
the way it should be.
Great tech support is just 30 seconds
away at 724-746-5500 or blackbox.com.
Table 4-1. LEDs and their Functions.
LED Status
On
ACT
Off
Off
10/100
On
On
1000
Off
On
PoE
Off
Customer
Support
Information
© Copyright 2011. Black Box Corporation. All rights reserved.
Black Box and the Double Diamond logo are registered trademarks of
BB Technologies, Inc. Mac is a registered trademark of Apple Computer,
Inc. Any other trademarks mentioned in this manual are acknowledged
to be the property of the trademark owners.
LPB1308A, rev. 1
724-746-5500 | blackbox.com
Page 5

BLACK BOX

Description
Port is connected
No connection to port
Port is connected to 10 Mbps
Port is connected to 100 Mbps
Port is connected to 1000 Mbps
—
Port is linked to powered device (PD)
No powered device (PD) is connected
Order toll-free in the U.S.:
Call 877-877-BBOX
(outside U.S. call 1-724-746-5500)
FREE technical support
24 hours a day, 7 days a week:
Call 724-746-5500 or
fax 724-746-0746
Mailing address:
Black Box Corporation
1000 Park Drive
Lawrence, PA 15055-1018
Web site: www.blackbox.com
E-mail: info@blackbox.com
Page 6
8-Port Gigabit 802.3at/af PoE Switch
Add 8 PoE devices to your
®
existing Gigabit LAN.

1. Specifications

Buffer Memory — 1.625 Mbits
Certifications — FCC Class A
Filtering/Forwarding Rates —
1000-Mbps port: 1,488,000 pps;
100-Mbps port: 148,800 pps;
10-Mbps port: 14,880 pps
MAC Address — 4 K
Transmission Method — Store-and-forward
Transmission Media —
10BASE-T: CAT3, 4, 5 UTP/STP;
100/1000BASE-TX: CAT5 UTP/STP
Standards — IEEE 802.3at/802.3af, IEEE 802.3i
10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.ab
1000BASE-TX, IEEE 802.3x flow control
Connectors — (8) RJ-45 PSE/PoE
Indicators — (33) LEDs: Per port: (1) ACT, (1) 10/100,
(1) 1000, (1) PoE;
Per unit: (1) Power LED
