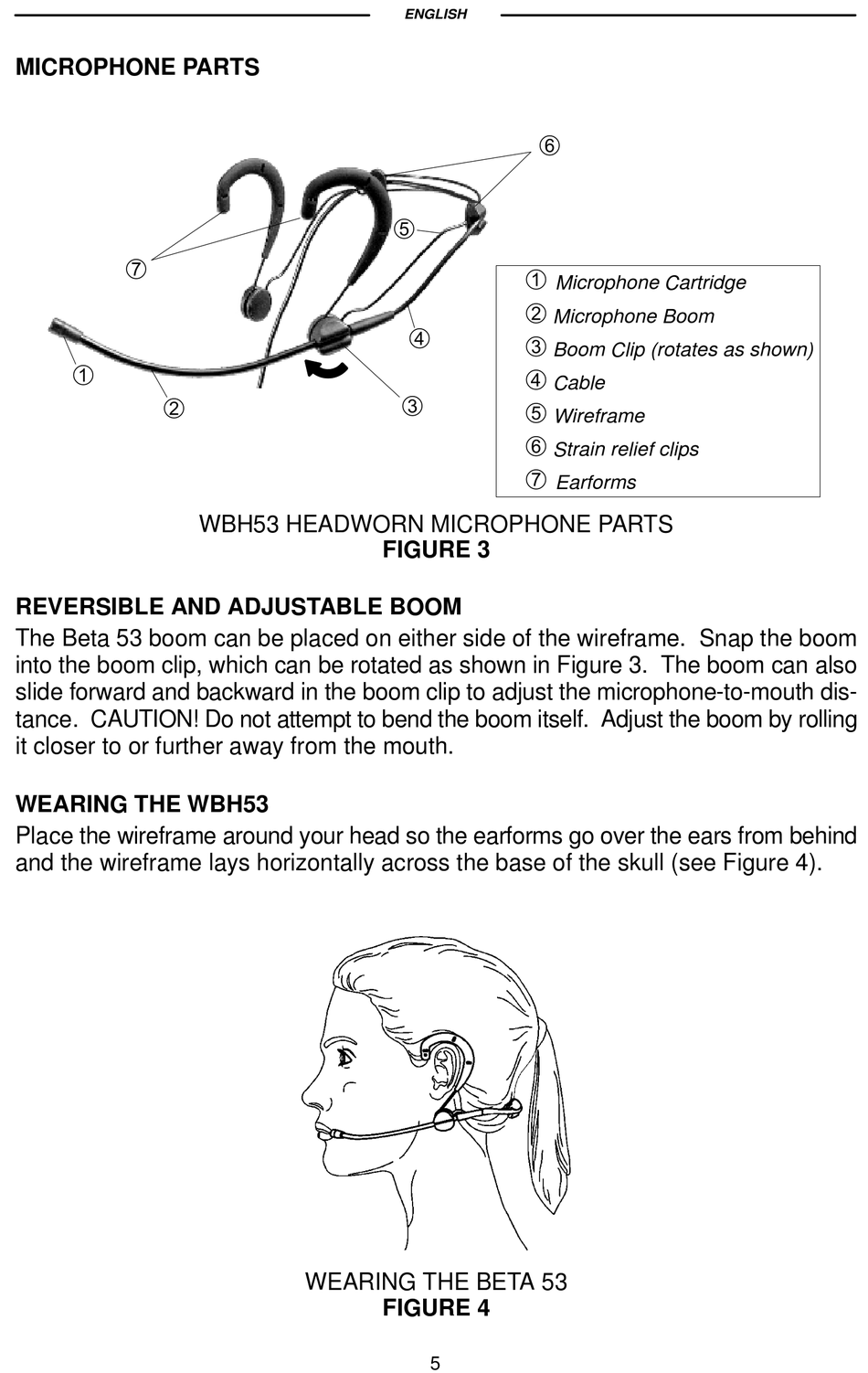

MICROPHONE PARTS
Æ
À
Á
REVERSIBLE AND ADJUSTABLE BOOM
The Beta 53 boom can be placed on either side of the wireframe. Snap the boom
into the boom clip, which can be rotated as shown in Figure 3. The boom can also
slide forward and backward in the boom clip to adjust the microphone-to-mouth dis-
tance. CAUTION! Do not attempt to bend the boom itself. Adjust the boom by rolling
it closer to or further away from the mouth.
WEARING THE WBH53
Place the wireframe around your head so the earforms go over the ears from behind
and the wireframe lays horizontally across the base of the skull (see Figure 4).
WBH53 HEADWORN MICROPHONE PARTS
WEARING THE BETA 53
ENGLISH
Å
Ä
À
Á
Ã
Â
Ã
Â
Ä
Å
Æ
FIGURE 3
FIGURE 4
5
Microphone Cartridge
Microphone Boom
Boom Clip (rotates as shown)
Cable
Wireframe
Strain relief clips
Earforms
