Summary of Contents for Shure BETA54

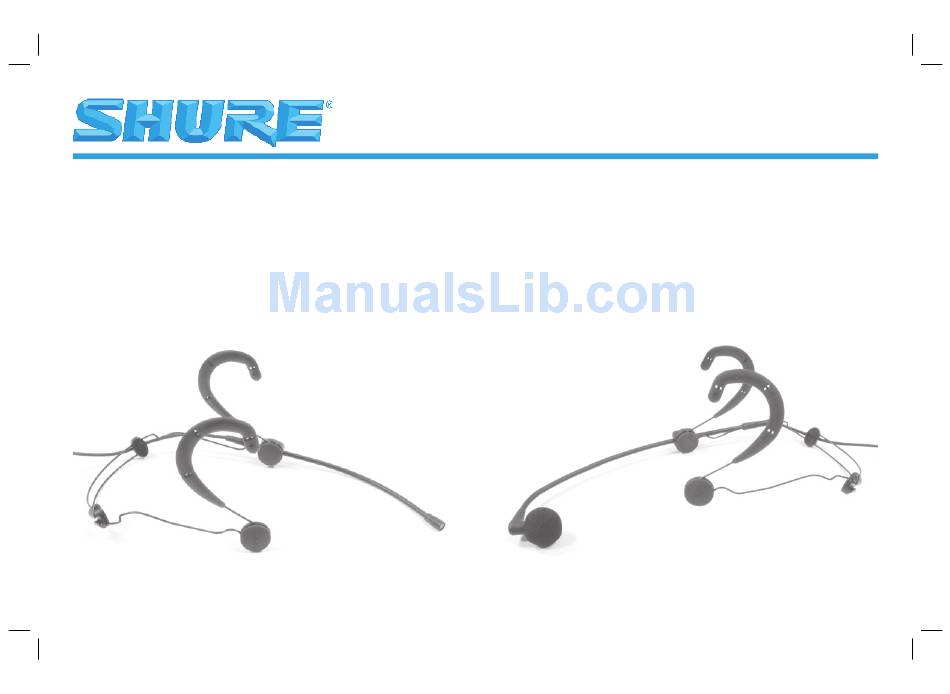

- Page 1 ™ ™ Models BETA 53 , BETA 54 User Guide Subminiature Condenser Headworn Microphones BETA 53 BETA 54...
- Page 2 English: page 1 Français: page 11 Deutsch: Seite 21 Español: Página 31 Italiano: Pagina 41...
- Page 3 Despite their small size, each microphone’s condenser element delivers full, clear, and natural reproduction of speech and vocals. The microphone features a durable, low-profi le wire frame headband which is fully adjustable for stability and comfort. A plastic carrying case protects the microphone and its accessories.
-
Page 4: Available Models
• Tan fi nish • TA4F connector for wireless applications All models include: microphone and headband (1 each), snap-fi t foam windscreens (2), standard protective cap (2), swiveling lapel clip (1), boom holder (2), logo pad (1) and plastic carrying case (1). - Page 5 Adjusting the Headband and M icrophone Adjust headband width Adjust boom height Adjust boom length Do not attempt to bend the microphone boom! “Roll” the boom for subtle adjustments of microphone position...
- Page 6 • To remove, pull the windscreen directly off of the cartridge. Always use the BETA 54 with the standard protective cap only. Using the microphone with no cap, or with the fi ltered cap, will degrade sound quality and alter...
- Page 7 Wearing the BE TA 53 and BE TA 54...
-
Page 8: Positioning The M Icrophone
• If necessary, roll the boom to avoid contact with skin and facial hair Positioning the M icrophone 13 mm (.5 in.) BETA 54 • Point the unidirectional BETA 54 microphone at the corner of the mouth 13 mm (.5 in.) - Page 9 Wearing the M icrophone on Either Side All models may be worn with the microphone on the left or the right. • Carefully detach the boom holder (1), logo pad (2), and • Reattach the boom holder to the opposite side of the wire frame (4).
- Page 10 Foam Windscreen (5 pieces) RPM304 Standard Protective Cap (gold mesh) (5 pieces) RPM208 Filtered Protective Cap* (silver mesh) (5 pieces) RPM220 Microphone/Boom Assembly with TA4F Con- RPM132 nector (1 piece) Swiveling Lapel Clip (5 pieces) RPM510 Boom Holder and Logo Pad (2 each)
- Page 11 BE TA 54 Replacement Par ts and Accessories Component Black Microphone/Boom Assembly with TA4F Con- RPM646 nector (1 piece) Standard Protective Cap (gold mesh) (5 pieces) RPM208 Snap-fi t Foam Windscreen (4 pieces) RPM316 Swiveling Lapel Clip (5 pieces) RPM510...
-
Page 12: Specifications
Level Dynamic Range 108 dB (max. SPL with 1k load, minus typical A-wt. noise) Current Drain 4.6 mA (preamp and microphone) Output Polarity Pin 2 relative to pin 3 at the output Positive pressure on the connector of the preamp... - Page 13 Polar Patterns and Frequenc y Response BETA 53 –20 dB –15 dB –10 dB –5 dB 250 Hz 500 Hz 1000 Hz –10 –20 1000 Standard Cap Filtered Cap Capuchon standard Standardmäßige Kappe Tapa estándar Capuchon à fi ltre Gefi lterte Kappe Tapa con fi...
- Page 14 1 et 2 pour les environnements Meets applicable test and performance résidentiels (E1) et d’industrie légère (E2). criteria in European wireless microphone Conforme aux critères applicables de test EMC standard EN 301 489 Parts 1 and 9. et de performances de la norme CEM européenne EN 301 489 Parties 1 et 9.
- Page 15 United States, Canada, Latin America, Caribbean: 5800 W. Touhy Avenue, Niles, IL 60714-4608, U.S.A. Phone: 847-600-2000 U.S. Fax: 847-600-1212 Int’l Fax: 847-600-6446 Europe, Middle East, Africa: Shure Europe GmbH, Phone: 49-7131-72140 Fax: 49-7131-721414 Asia, Pacific: Shure Asia Limited, Phone: 852-2893-4290 Fax: 852-2893-4055...
