Shure BETA 52 User Manual

MODEL BETA 52
SUPERCARDIOID DYNAMIC
INSTRUMENT MICROPHONE
GENERAL

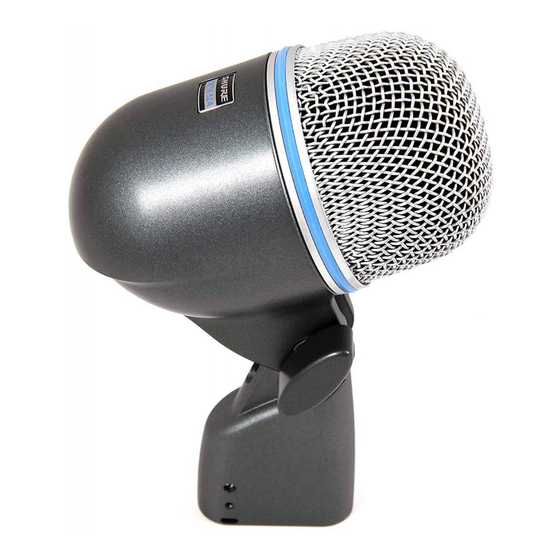

The Shure BETA 52 is a high output dynamic microphone
with a tailored frequency response designed specifically for
kick drums and other bass instruments. It provides superb at-
tack and "punch," and delivers studio quality sound even at ex-
tremely high sound pressure levels.
The BETA 52 features a modified supercardioid pattern
throughout its frequency range to insure high gain before feed-
back and excellent rejection of unwanted sound. A built–in dy-
namic locking stand adapter with an integral XLR connector
simplifies installation, particularly if the microphone is to be
placed inside a kick drum. The stand adapter keeps the micro-
phone position fixed and resists slipping, even when subjected
to sharp blows and strong vibrations. A hardened steel mesh
grille protects the BETA 52 from the abuse and wear associat-
ed with touring.
FEATURES
Frequency response shaped specifically for kick drums and
bass instruments
Built–in dynamic locking stand adapter with integral XLR
connector simplifies setup, especially inside a kick drum
Studio quality performance, even at extremely high sound
pressure levels
Supercardioid pattern for high gain before feedback and
superior rejection of unwanted noise
Hardened steel mesh grille that resists wear and abuse
Advanced pneumatic shock mount system that minimizes
transmission of mechanical noise and vibration
Neodymium magnet for high signal–to–noise ratio output
Low sensitivity to varying load impedance
Legendary Shure quality and reliability
2001, Shure Incorporated
27B2799 (AA)
Model BETA 52 User Guide
APPLICATIONS AND PLACEMENT
The most common BETA 52 applications and placement
techniques are listed in the following table. Keep in mind that
microphone technique is largely a matter of personal taste–
there is no one "correct" microphone position.
APPLICATION SUGGESTED
MICROPHONE
PLACEMENT
Kick Drum 5 to 7.5 cm (2 to 3 in.)
away from beater head,
slightly off–center from
beater.
20 to 30 cm (8 to 12 in.)
from beater head, on–
axis with beater.
20 to 30 cm (8 to 12 in.)
from beater head, 15 to
20 cm (6 to 8 in.) from
edge of head.
5 to 7.5 cm (2 to 3 in.)
away from outside head,
on–axis with
(double head kickdrum
only).
Electric Bass 2.5 cm (1 in.) from
Amplifier speaker, on–axis with
center of speaker cone.
2.5 cm (1 in.) from
speaker, at edge of
speaker cone.
10 to 15 cm (4 to 6 in.)
from speaker, on–axis
with center of speaker
cone.
60 to 90 cm (2 to 3 ft.)
from speaker, on–axis
with center of speaker
cone.
MOUNTING THE BETA 52 ON A MICROPHONE STAND
The built–in stand adapter features a dynamic locking sys-
tem that permits adjustments to the microphone's position, but
resists slipping when struck or bumped. To mount the BETA 52
on a stand and adjust its position, proceed as follows:
1. Screw the integral stand adapter onto the end of a micro-
phone stand (see Figure 3). Adjust the stand height and
position as necessary.
2. Pivot the BETA 52 until it is in the desired position relative to
the drum head or loudspeaker.
3. Lock the BETA 52 in place by rotating the adjustment knob
on the stand adapter clockwise until it is tight. Do NOT over-
tighten the knob with tools.
4. If necessary, make minor adjustments to the microphone
position without loosening the adjustment knob.
5. Connect an audio cable to the integral XLR connector.
TONE QUALITY
Sharp attack; maximum
bass sound, highest sound
pressure level.
Medium attack; balanced
sound.
Medium attack; thin, re-
duced bass sound.
Softer attack; balanced,
resonant sound.
beater
NOTE: To "tighten" the
beat, place a pillow or blan-
ket on bottom of drum
.
against beater head
Sharp attack; emphasized
bass.
Sharp attack; higher fre-
quency sound.
Sharp attack; full, balanced
sound.
Soft attack; mellow, higher
frequency sound.
Printed in Mexico
