General Description

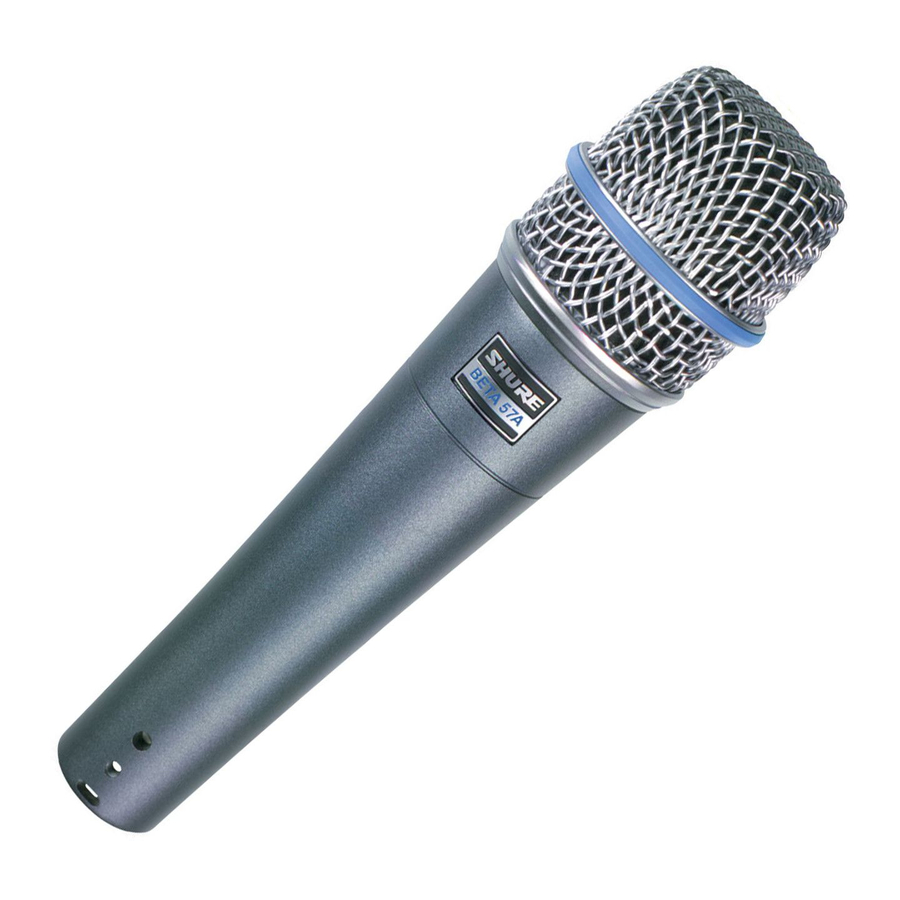

The Shure BETA 57^®A is a precision-engineered, dynamic microphone designed for professional live sound reinforcement and studio recording. A tight, supercardioid pattern delivers high gain before feedback, maximum sound isolation, and minimum offaxis tone coloration.
The tailored frequency response of the versatile Beta 57A accentuates the fine details of amplified and acoustic instruments, especially in high sound pressure level(SPL) environments. A proven shock mount system, hardened steel-mesh grille, and superior build quality withstand the rigors of daily sound reinforcement.

Features

Premier live performance microphone with Shure quality, ruggedness, and reliability
Uniform supercardioid pick-up pattern for maximum gain before feedback and superior rejection of off-axis sound
Tailored frequency response specifically shaped for guitars, drums and vocals
Neodymium magnet for greater sensitivity and higher output
Advanced pneumatic shock mount system that minimizes transmission of mechanical noise and vibration
Dent-resistant steel mesh grille and enamel coated die-cast metal construction resist wear and abuse

Applications

General Rules for Use

Do not cover any part of the microphone grille with your hand, as this will adversely affect microphone performance.
Aim the microphone toward the desired sound source (such as the talker, singer, or instrument) and away from unwanted sources.
Place the microphone as close as practical to the desired sound source.
Work close to the microphone for extra bass response.
Use only one microphone to pick up a single sound source.
For better gain before feedback, use fewer microphones.
Keep the distance between microphones at least three times the distance from each microphone to its source ("three to one rule").
Place microphones as far as possible from reflective surfaces.
Add a windscreen when using the microphone outdoors.
Avoid excessive handling to minimize pickup of mechanical noise and vibration.

Applications and Placement

The following table lists the most common applications and placement techniques. Keep in mind that microphone technique is largely a matter of personal taste; there is no one "correct" microphone position.

Application	Suggested Microphone Placement	Tone Quality
Guitar & Bass Ampli fiers	2.5 cm (1 in.) from speaker, on-axis with center of speaker cone.	Sharp attack; emphasized bass.
	2.5 cm (1 in.) from speaker, at edge of speaker cone.	Sharp attack; higher frequency sound.
	15 to 30 cm (6 to 12 in.) away from speaker and on-axis with speaker cone.	Medium attack; full, balanced sound.
	60 to 90 cm (2 to 3 ft.) back from speaker, on-axis with speaker cone.	Softer attack; reduced bass.
Snare Drum	2.5 to 7.5 cm (1 to 3 in.) above rim of top head of drum. Aim mic at drum head.	Most "snap" from drumstick.
Tom-Toms	One mic on each tom, or between each pair of toms, 2.5 to 7.5 cm (1 to 3 in.) above drum heads. Aim each microphone at top drum heads. On double head toms, you can also remove bottom head and place a mic inside pointing up toward top drum head.	Medium attack; full, balanced sound.
Brass & Woodwinds	Brass: 30 to 90 cm (1 to 3 ft.) away, on-axis with bell of instrument.	Bright, clear sound.
	Woodwinds: 2.5 to 15 cm (1 to 6 in.) away, on-axis with bell of instrument.	Bright, clear sound.
	Bell of instrument 90° off-axis from front of mic.	Softer, mellow sound.

Avoiding Pickup of Unwanted Sound Sources

A supercardioid microphone has the greatest sound rejection at points 120° toward the rear of the microphone. Place the microphone so that unwanted sound sources, such as monitors and loudspeakers, are at these angles, not directly behind it. To minimize feedback and ensure optimum rejection of unwanted sound, always test microphone placement before a performance.
Recommended Loudspeaker Locations for Supercardioid Microphones
Avoiding Pickup of Unwanted Sound Sources

Proximity Effect

Unidirectional (cardioid) microphones progressively boost bass frequencies by 6 to 10 dB below 100 Hz when the microphone is at a distance of about 6 mm (1/4 in.) from the sound source. This phenomenon, known as proximity effect, can be used to create a warmer, more powerful sound. To prevent explosive low frequency sound during close-up use, the bass response gradually rolls off. This provides greater control and helps the user take advantage of proximity effect.

Specifications

Type
Dynamic (moving coil)

Frequency Response
50 to 16,000 Hz

Polar Pattern
Supercardioid

Output Impedance
290 Ω

Sensitivity
at 1kHz, open circuit voltage
-51 dBV/Pa (2.8 mV) [1]
[1] 1 Pa=94 dB SPL

Weight
Net
0.275 kg (0.6 lbs)

Connector
Three-pin professional audio (XLR), male, balanced

Housing
Silver blue enamel-painted die cast metal with hardened, matte-finished steel mesh grille

Overall Dimensions

Typical Frequency Response

Typical Polar Pattern

Wiring Diagram

Accessories

Furnished Accessories

Microphone Clip for SM58, SM57, SM87A, BETA87A, BETA87C, PGA57, PGA58, PGA48, PGA81	A25D
5/8" to 3/8" (Euro) Threaded Adapter	95A2050
Zippered Carrying Bag	95A2314

Optional Accessories

Black Locking Foam Windscreen for BETA57 and BETA57A	A57AWS
Shock Stopper Isolation Mount^®	A55HM
25 foot (7.5m) Triple-Flex^® Microphone XLR Cable with Switchcraft connectors	C25E

Replacement Parts

Cartridge for BETA56, BETA56A, and BETA57A	R174
Grille for BETA56A and BETA57A	RK320
Plug (Connector) Assembly	90J1984
