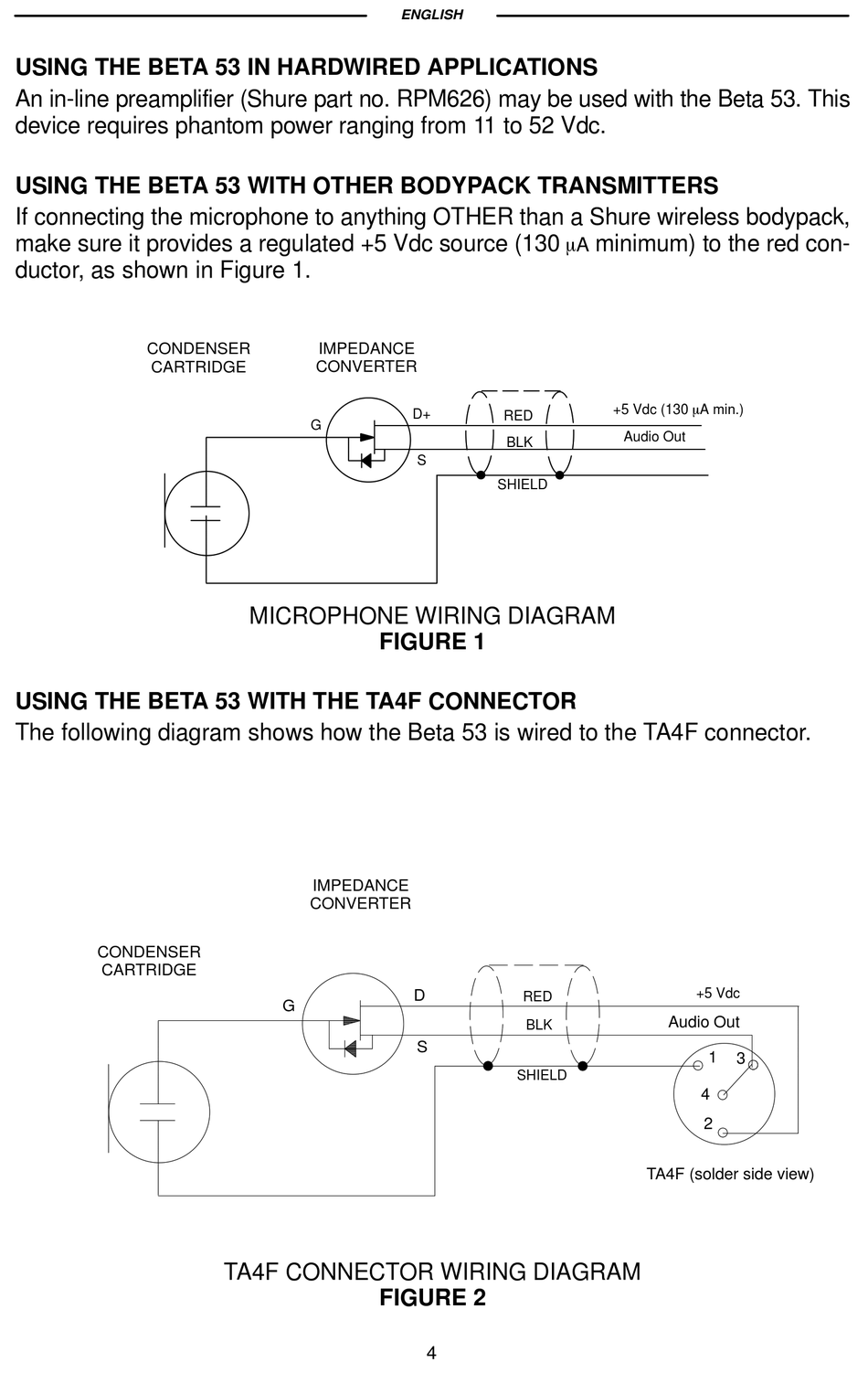

USING THE BETA 53 IN HARDWIRED APPLICATIONS
An in-line preamplifier (Shure part no. RPM626) may be used with the Beta 53. This
device requires phantom power ranging from 11 to 52 Vdc.
USING THE BETA 53 WITH OTHER BODYPACK TRANSMITTERS
If connecting the microphone to anything OTHER than a Shure wireless bodypack,
make sure it provides a regulated +5 Vdc source (130
ductor, as shown in Figure 1.
CONDENSER
CARTRIDGE
USING THE BETA 53 WITH THE TA4F CONNECTOR
The following diagram shows how the Beta 53 is wired to the TA4F connector.
CONDENSER
CARTRIDGE
IMPEDANCE
CONVERTER
G
MICROPHONE WIRING DIAGRAM
FIGURE 1
IMPEDANCE
CONVERTER
G
TA4F CONNECTOR WIRING DIAGRAM
FIGURE 2
ENGLISH
D+
RED
BLK
S
SHIELD
D
RED
BLK
S
SHIELD
4
mA
minimum) to the red con-
+5 Vdc (130 mA min.)
Audio Out
+5 Vdc
Audio Out
1
4
2
TA4F (solder side view)
3
