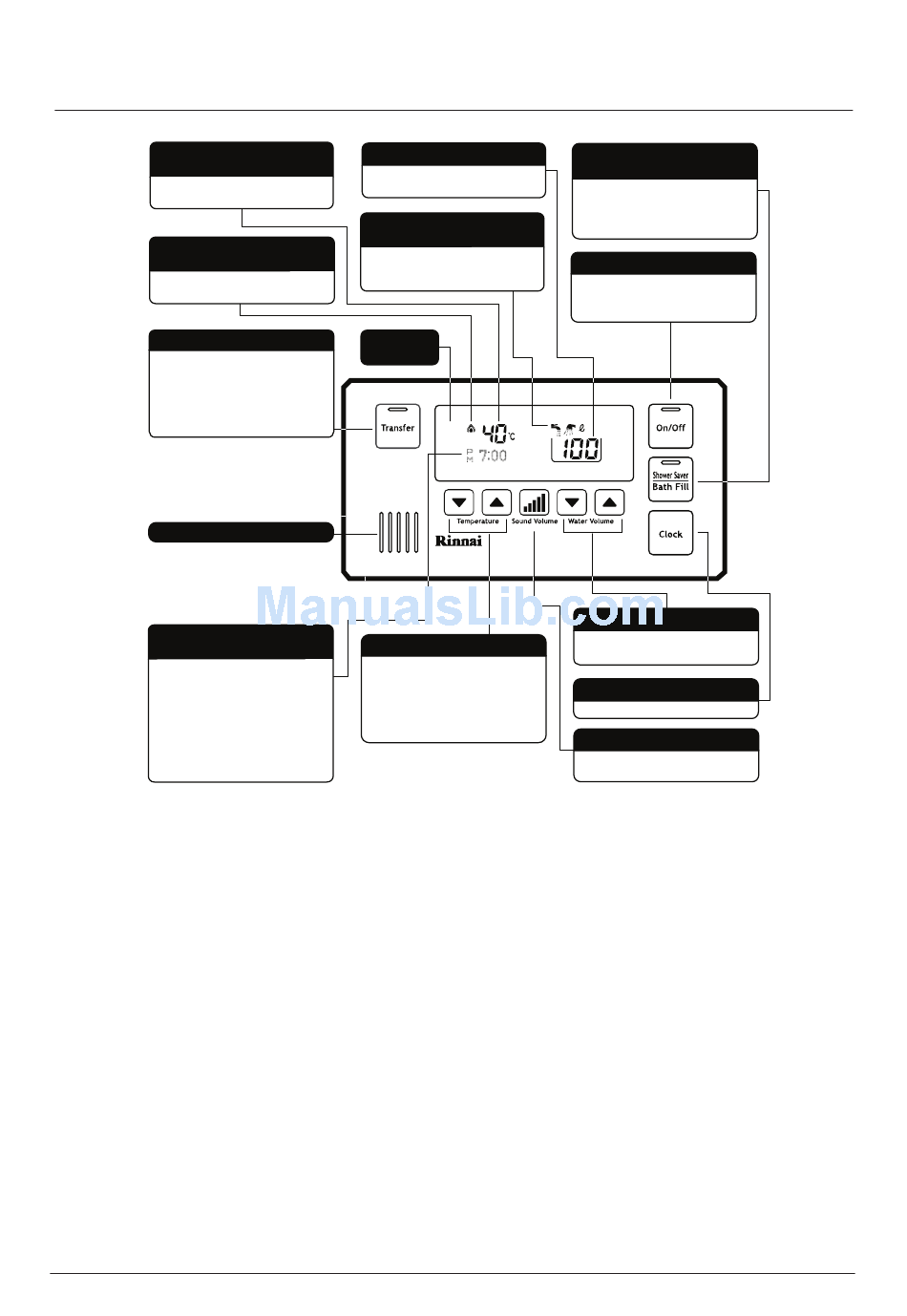

Bathroom Deluxe controller
WATER TEMPERATURE
INDICATOR
Indicates the selected hot water
temperatures.
WATER HEATER 'In Use'
INDICATOR
Indicates the water heater is in
operation and delivering hot water.
TRANSFER BUTTON
Used to transfer priority between
controllers. The controller with priority
has command of the hot water
temperature. This button is illuminated
when the controller has priority.
SPEAKER
CLOCK & REMINDER VOLUME
INDICATOR
12 hour AM/PM clock display.
Indicates how much water still needs to
flow for the selected Shower Saver/Bath
Fill volume, decreasing while the shower
runs or the bath fills.
In the event of a fault, error message
codes will flash here.
Avoid getting water directly into the speaker as this may cause damage.
Turning on If the water controller is switched off (no digits displayed in the digital
window) press the On/Off button once.
The On indicator will illuminate, indicating the continuous flow water heater
will be ready to supply hot water once a hot water tap is opened.
If more than one controller is fitted press the 'Transfer' button once to
transfer priority to the desired controller.
Rinnai New Zealand Ltd
WATER VOLUME INDICATOR
Indicates Shower Saver/Bath Fill volume
selected.
SHOWER SAVER / BATH FILL
INDICATOR
Indicates the Shower Saver/Bath Fill
function has been selected and that a
shower is running or the bath is filling.
DIGITAL
MONITOR
TEMPERATURE BUTTONS
In normal Shower Saver/Bath Fill modes
these buttons are used to select the
water temperature.
In clock mode these buttons are used to
set the clock.-
Continuous Flow Water Heater Operation Manual
17
SHOWER SAVER
/ BATH FILL BUTTON
Used to selected Shower Saver/Bath Fill
function.This button is illuminated when
this function is selected.
ON/OFF BUTTON
Used to switch the water heater on and
off. This button is illuminated when the
water heater is on.
WATER VOLUME BUTTONS
Used to select Shower Saver/Bath Fill
volumes.
CLOCK SETTING BUTTON
Used to select clock setting mode.
SOUND VOLUME BUTTON
Used to select voice and audible tone
options.
