DELUXE BATHROOM WATER CONTROLLER

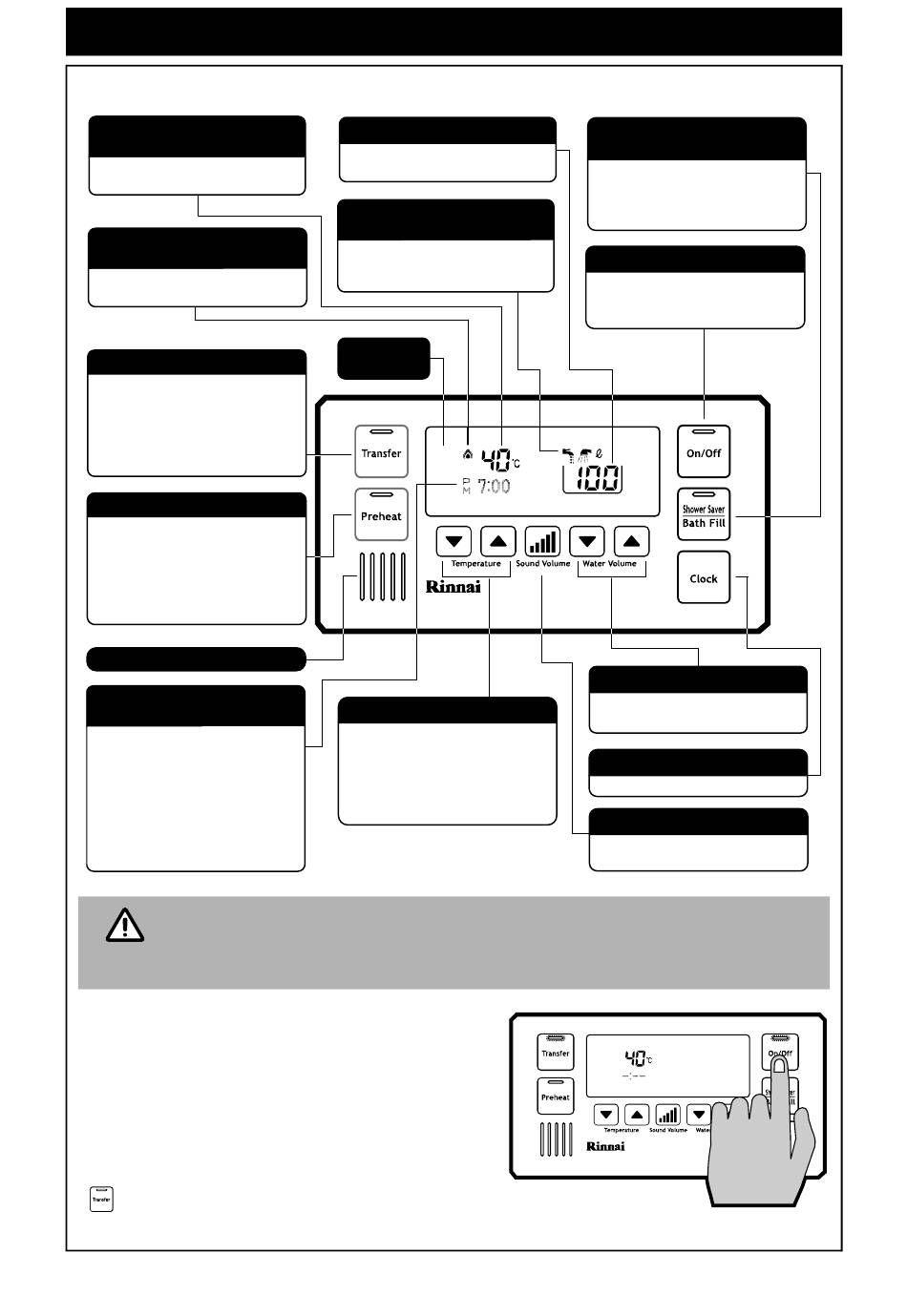

ABOUT THE DELUXE BATHROOM WATER CONTROLLER (BC-100V)

WATER TEMPER ATURE
INDICATOR
Indicate s the selecte d hot water
temperature.
WATER HEATER
'In Use' INDICATOR
Indicates that the water heater is in
operation and delivering hot water.
TRANSFER BUTTON
Used to transfer control priority between
the Water Controllers. The controller with
priority has command of the hot water
delivery temperature. This button is
illuminated when this controller has
priority.
PREHE AT BUTTON
Used to start and stop the preheat
function of the appliance. See Smartstart
preheat operation on page 14.
This button is illuminated when the the
preheat function is activated.
SPEAKER
CLOCK & REMAINING WATER
VOLUME INDICATOR
12 Hour AM / PM clock display.
Indicates how much water remains to
flow for the selected Shower Saver /
Bath Fill volume, decreasing while
shower runs or bath fills.
In the event of a fault, error message
codes will flash here.
Refer to page 5 to confirm the maximum number and combination of controllers
that can be fitted to your Water Heater model.
NOTE
Avoid getting water directly in the speaker as this may cause damage.

TURNING ON THE CONTROLLER

If the controller is switched off (No digits other than the
clock digits displayed in the digital monitor) press the
On/Off button once.
The On/Off and Transfer buttons illuminate to indicate
that the hot water unit will be ready to supply hot water
once a hot water tap is opened.
If more than one controller is fitted press the 'Transfer'
button to transfer priority to the desired controller.
Rinnai Australia
WATER LEVEL INDICATOR
Indicates Shower Saver / Bath Fill volume
selected.
SHOWER SAVER /
BATH FILL INDICATOR
Indicates that the Shower Saver / Bath
Fill function has been selected and that
a shower is running or the bath is filling.
DIGITAL
MONITOR
TEMPER ATURE BUTTONS
In Normal and Shower Saver / Bath Fill
modes these buttons are used to select
the water temperature.
In 'Clock' mode these button are used to
set the clock.
10
SHOWER SAVER /
BATH FILL BUTTON
Used to select Shower Saver / Bath Fill
function. This button is illuminated when
the Shower Saver / Bath Fill function is
selected.
ON/OFF BUTTON
Used to switch the water heater on and
off. This button is illuminated when the
hot water heating system is on.
WATER VOLUME BUTTONS
Used to select Shower Saver / Bath Fill
volumes.
CLOCK SETTING BUTTON
Used select clock setting mode.
SOUND VOLUME BUTTON
Used to select the voice and audible tone
options.
Operation Manual
