Tone control on acoustic

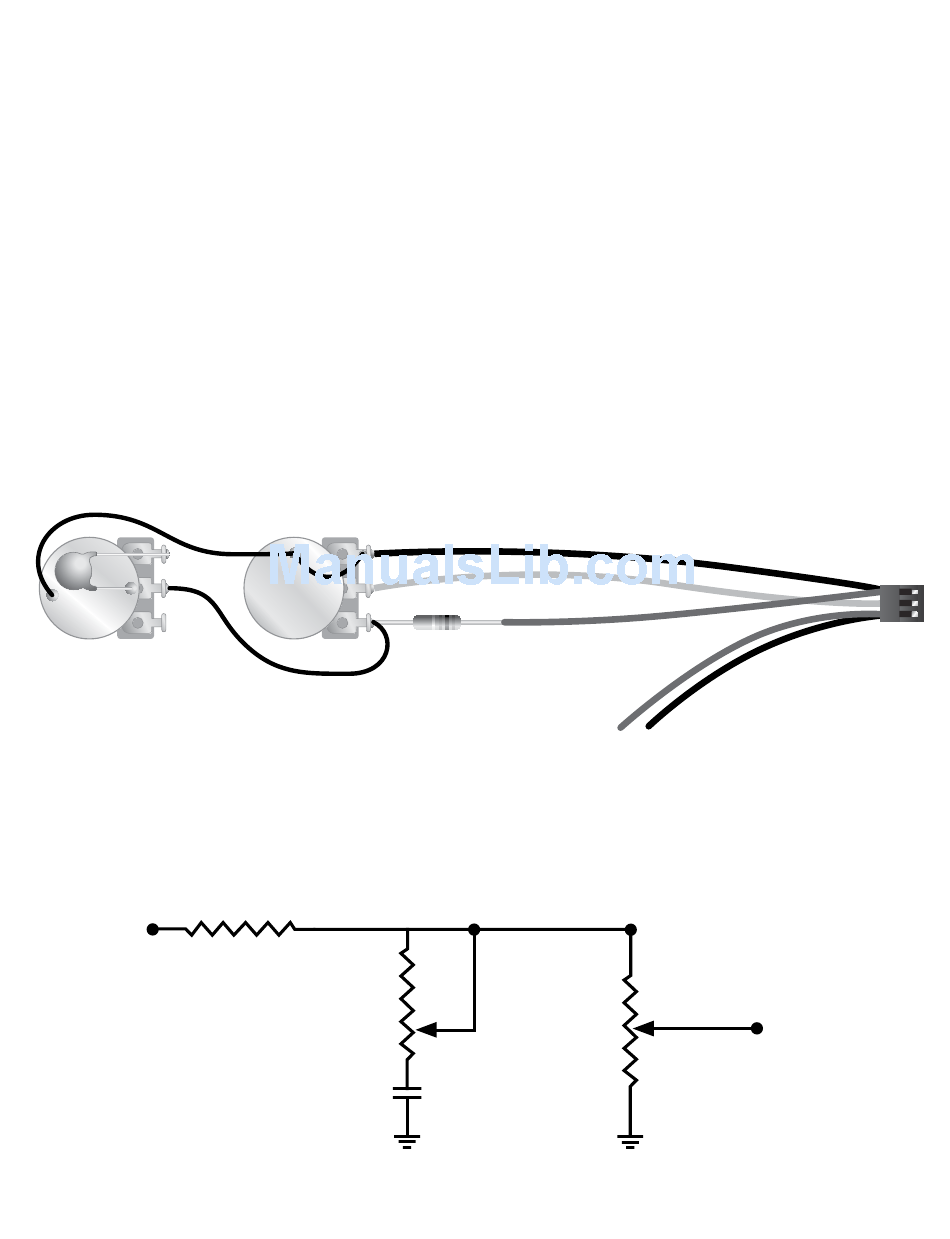

You can add a tone control to the Acousti-Phonic volume circuit to
attenuate the high frequencies, the same as you would on your
magnetic circuit. Be forewarned that a lot of players think they
will need this, but discover they never use it because they prefer
the EQ' d acoustic sound the way it is. Try your ghost® system first
without the added tone pot, and install it if you really need it.
Bk
Y
250K
250K
Vi
22K
Gn
Bk
Mags
Tone
Volume
22K
GHST
(violet)
250K 250K
VOL
(yellow)
.022uF
(22nF)
