Acoustic volume with Mid/Dark switch
*optional*
This switch selects either the EQ'd ghost® acoustic sound, or a
second EQ curve with a boost in the mid range. It can be installed
either as a mini-toggle switch, or as a switch incorporated
in a pot. A push-on/push-off pot is available as part of the
ghost® system, which controls acoustic volume and the Mid/
Dark switching, or we can provide the harness with a mini-
toggle switch for you to convert one of your tone pots. The
green wire is the input from your magnetic pickups; solder it to
the middle lug of your magnetic volume pot. Unsolder the wire
that runs from your 1/4" jack to the magnetic pickup system.

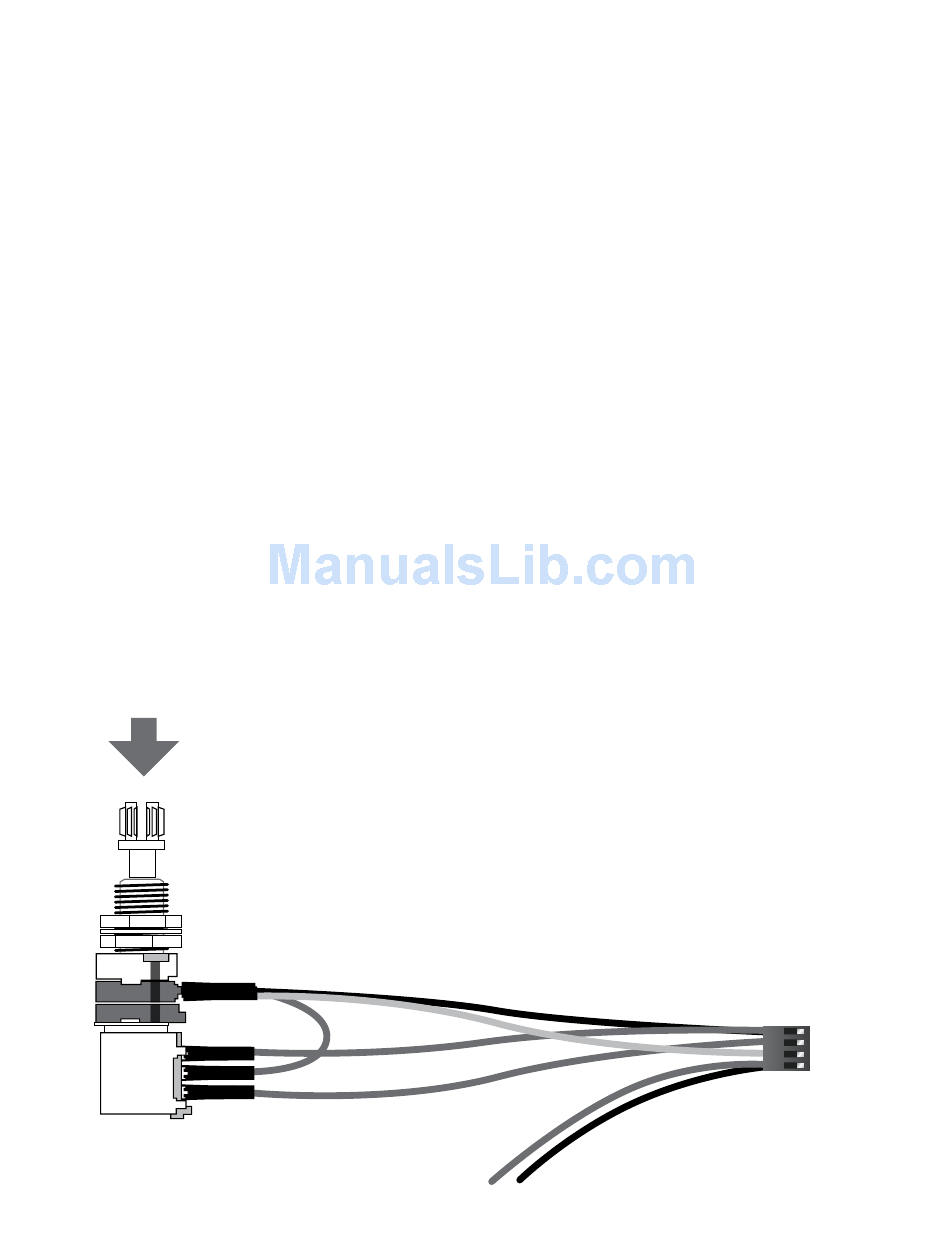

mid/dark
