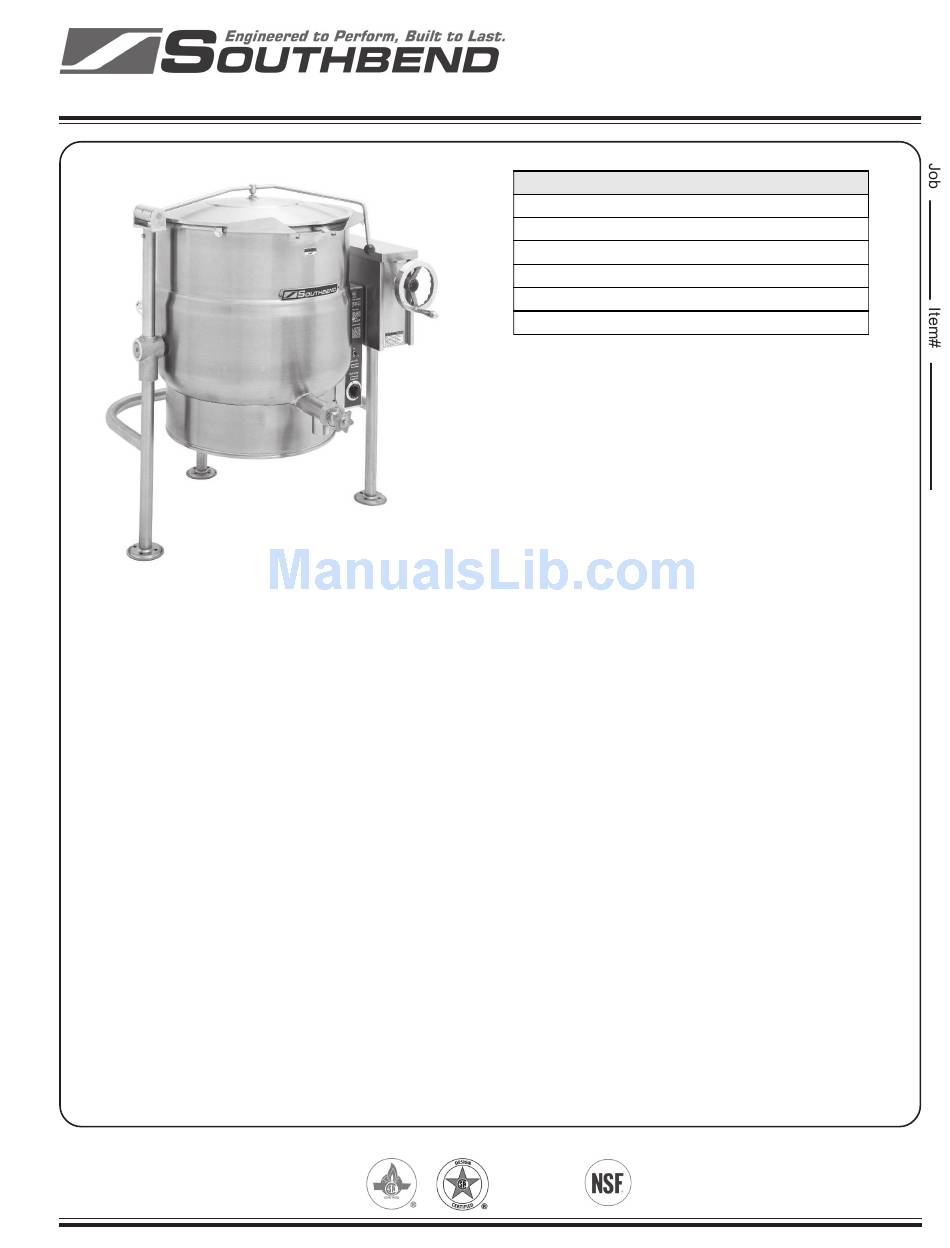

Southbend KELT-20 Specifications

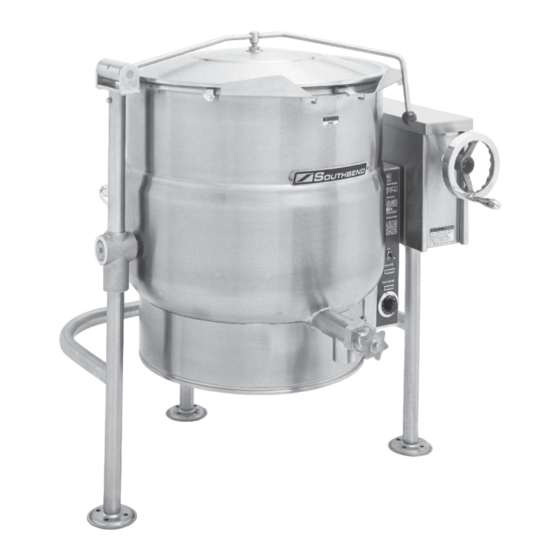

*Kettle shown with
Optional Spring Assist Cover
SPECIFICATIONS:
Shall be a Model__________________________________ ,
self-generating, electric tilting kettle. A double wall kettle interior
shall form a steam jacket around the lower 2/3 of the kettle.
The jacket enclosure shall contain distilled water which is factory
sealed. The bottom of the kettle shall be of hemispherical design
for superior heat circulation.
The console shall be drip proof, stainless steel clad and shall
be supported on all welded, 1-5/8" (41mm) diameter stainless
steel frame and legs fitted with 4 hole adjustable flanged feet
for securing to floor.
The kettle shall pivot on trunnions connected to the tilt
mechanism and the outbore bearing connected to the frame
and shall permit the kettle to tilt forward a full 90 for complete
emptying. The tilt mechanism shall be self locking for positive
stop action.
Construction shall be all welded #4 finish stainless steel, type
304. The controls shall be integrally mounted and shall include
a power switch, thermostat, pilot light, low water light, vacuum/
pressure gauge, safety relief valve, and low water shut off.
The kettle shall be standard with removable elements.
The kettle shall operate in a temperature range of 100°F to
290°F (38°C to 144°C) at a maximum pressure of 50 psi
(345kPa).
Form KELT Rev 0 (01/07)
www.yatesgd.com www.yatesgraphicdesign.com
M
ODEL
KELT-20 20 Gallon
KELT-30 30 Gallon
KELT-40 40 Gallon
KELT-60 60 Gallon
KELT-80 80 Gallon
KELT-100 100 Gallon
OPERATION SHALL BE BY:
Electrically, self-generating closed steam system operating at 50 psi
equipped for operation on:
❑ 208 VAC, 3 Phase, 50/60 Hz
❑ 208 VAC, 1 Phase, 50/60 Hz*
❑ 240 VAC, 3 Phase, 50/60 Hz
❑ 240 VAC, 1 Phase, 50/60 Hz*
OPTIONAL ITEMS AT EXTRA COST:
❑ Type 316 stainless steel liner for high acid content products
❑ 1-1/2" (38 mm) draw off valve
❑ 2" (50 mm) draw off valve
❑ 3" (76 mm) draw off valve
❑ 2" (50 mm) dairy valve
❑ 3" (76 mm) dairy valve
❑ 24 kw on 40, 60, 80 gallon
❑ 33 kw on 60, 80, 100 gallon
❑ 220 VAC, 1 Phase, 50/60 Hz*
❑ 220 VAC, 3 Phase, 50/60 Hz
❑ 380 VAC, 3 Phase, 50/60 Hz
❑ 415 VAC, 3 Phase, 50/60 Hz
❑ 480 VAC, 3 Phase, 50/60 Hz
❑ 220/380 VAC, 3 Phase, 4 wire
❑ 240/415 VAC, 3 Phase, 4 wire
❑ One piece lift off stainless steel cover
❑ Spring assist hinged stainless steel cover
❑ Etched gallon markings
❑ Etched litre markings
❑ Correctional package
*20 and 30 gallon only
ACCESSORIES:
ˆ Triple basket assembly
ˆ Perforated strainer for draw off
ˆ Solid stainless steel disc for draw off valve
ˆ Graduated measuring stick
ˆ Strainer hook
ˆ Double pantry faucet with swing spout
ˆ Single pantry faucet with swing spout
ˆ Pan support
ˆ Pour strainer
ˆ Calibrated thermostat dial "C"
ˆ Calibrated thermostat dial "F"
E S
LECTRIC TEAM
T K
ILTING ETTLE
C
APACITY
76 Liter
114 Liter
152 Liter
227 Liter
303 Liter
379 Liter
Printed in USA
