    SELF-GENERATING COUNTER TOP INDEX STEAM JACKETED KETTLES CROWN suggests that this entire manual be read thoroughly and that all instructions be followed carefully. SECTION PAGE DESCRIPTION Inside Front Cover Warranty, Damages, etc. Introduction - Description - Capacities - Functioning Mode Operating Controls and Indicators Installation Instructions Operating and Cleaning Instructions...
  • Page 3: Capacities

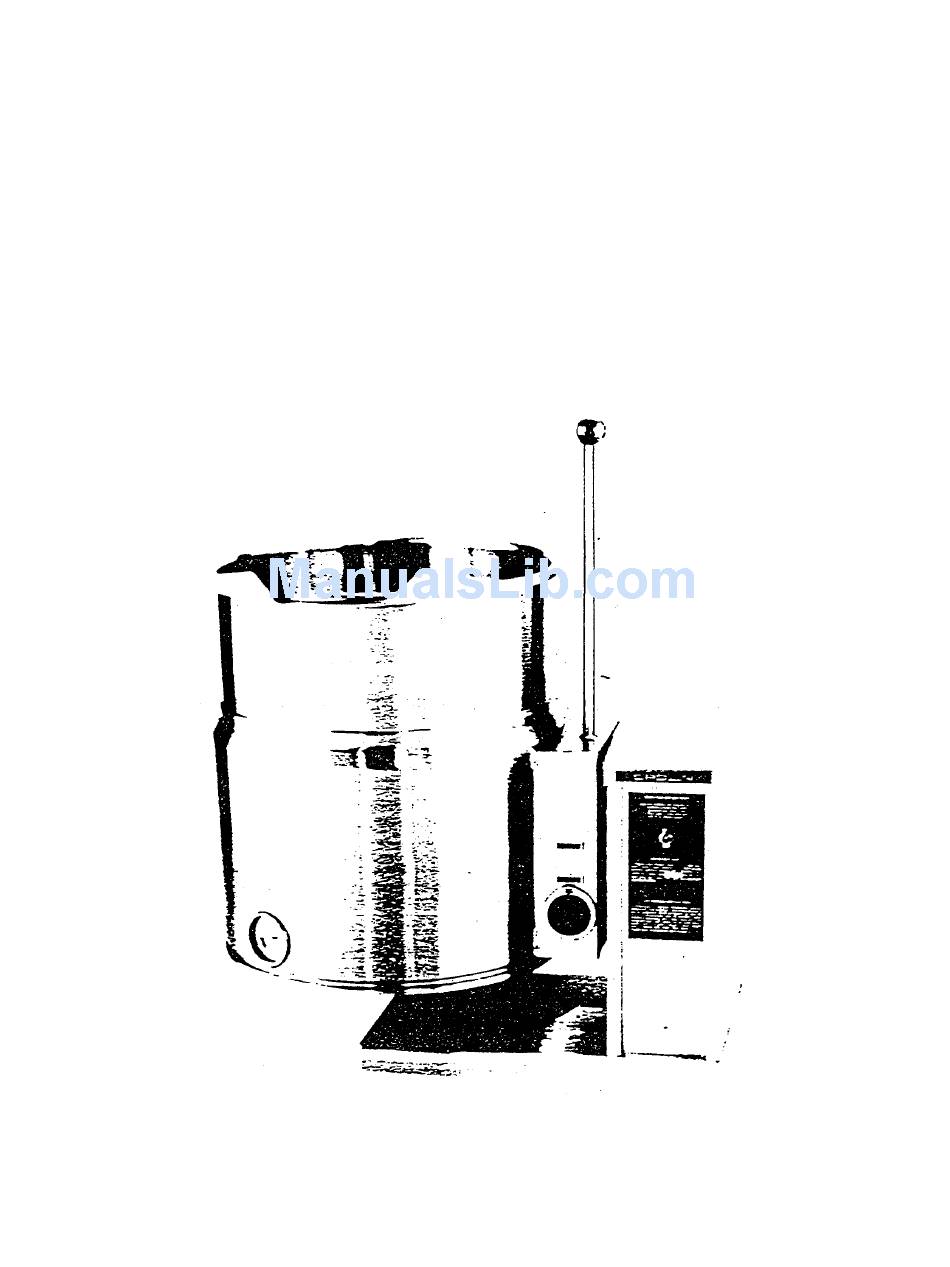

    INTRODUCTION Section 1: SELF-GENERATING COUNTER TOP STEAM JACKETED KETTLES DESCRIPTION All CROWN electrically powered kettles described and referred to in this manual are pressure vessels of a double-wall stainless steel construction forming a sealed jacket (chamber) enveloping the tower two thirds of the kettle bowl surface. The kettle bowl is the container for the food product which ideally should be of a liquid or semi-liquid consistency to achieve complete contact with the bowl surface and thus fully absorb the heat transmitted through that surface from the pressurized...
  • Page 4: Functioning Mode

    INTRODUCTION SECTION 1: SELF-GENERATING COUNTER TOP STEAM JACKETED KETTLES FUNCTIONING MODE - continued On all tilting kettles the low water sensing probe is installed at the rear of the kettle jacket and during the pouring operation, as the kettle is tilted forward, the water within the jacket also flows forward exposing the heating elements and the low water sensing probe and consequently interrupts power supply to the heating elements.
  • Page 5: Operating Controls And Indicators

    OPERATING CONTROLS AND INDICATORS SECTION 2: SELF-GENERATING COUNTER TOP STEAM JACKETED KETTLES FIG. 1...
  • Page 6 OPERATING CONTROLS AND- INDICATORS Section 2: SELF-GENERATING COUNTER TOP STEAM JACKETED KETTLES Shows physical location of Controls, Indicators and Operating features. Listed and itemized is a Fig. 1: short functional description of each. Item A: Kettle Power Switch controls power to kettle. Thermostat Knob allows operator to select kettle temperature in increments from "1"...
  • Page 7: Installation Instructions

    INSTALLATION INSTRUCTIONS SECTION 3: SELF-GENERATING COUNTER TOP STEAM JACKETED KETTLES Position kettle on counter allowing sufficient rear clearance from wall for kettle to tilt freely and completely without obstruction. Mark four corner locations of kettle base. Refer to drawing below Remove kettle from counter and locate position of 4 holes as per above drawing.
  • Page 8: Operating And Cleaning Instructions

    OPERATING AND CLEANING INSTRUCTIONS SECTION 4: SELF-GENERATING COUNTER TOP STEAM JACKETED KETTLES OPERATING PROCEDURE Check that external Control Box Switch is ON. Check kettle Pressure Gauge that reading indicates 20 - 25 vacuum for a cold kettle. If vacuum is insufficient. Air Venting Instructions must be followed.
  • Page 9: Maintenance

    MAINTENANCE SECTION 5: SELF-GENERATING COUNTER TOP STEAM JACKETED KETTLES GENERAL MAINTENANCE No general maintenance is required other than adhering to the Cleaning Procedure instructions on page 7. LOW WATER LEVEL Proper water level must be maintained within the jacket for the kettle to operate. Depletion of water may occur from excessive opening of, or leakage through the safety relief valve.
  • Page 10: Service Information

    SERVICE INFORMATION SECTION 6 SELF-GENERATING COUNTER TOP STEAM JACKETED KETTLES EXTREMELY SLOW COOKING TIME If the cooking time is abnormally slow then the difficulty may be due to air being present in the kettle jacket. To remove air, follow AIR VENTING INSTRUCTIONS on page If this problem persists and kettle will not reach and maintain Pressure Gauge zone of 20 - 25 Vacuum when cold, then assume that a slow leak may be responsible in the jacket.
  • Page 11: Parts Lists

    PARTS LIST SECTION 7: SELF-GENERATING COUNTER TOP STEAM JACKETED KETTLES FIG.
  • Page 12 PARTS LIST SELF-GENERATING COUNTER TOP STEAM JACKETED KETTLES From Fig. 2 ITEM NO. PART NO. DESCRIPTION QUANTITY EC-5&-6 EC-10 EC-20 8-3090 8-3091 8-3120 Kettle Enclosure Cover 1-65S4 1-65S4 1-65S4 Enclosure Cover Bolt 3-AV01 3-AV01 3-AV01 Air Vent Assembly 3-SRV8 3-SRV8 3-SRV8 Safety Relief Valve (50 psi) 8-3092...
  • Page 13 PARTS LIST SECTION 7: SELF-GENERATING COUNTER TOP STEAM JACKETED KETTLES FIG.
  • Page 14 PARTS LIST SELF-GENERATING COUNTER TOP STEAM JACKETED KETTLES From Fig. 3 ITEM NO. PART NO. DESCRIPTION QUANTITY EC-5&-6 EC-10 EC-20 4-70EU 4-70EU 4-70EU Ground Terminal 4-LLC1 4-LLC1 4-LLC1 Liquid Level Control 4-NG41 4-NG41 4-NG41. Contactor 208,240(2)380,416,480 (1) 4-33T8 4-33T8 4-33T8 Terminal Block 1-65S6 1-65S6...
  • Page 15 ELEMENT LIST SECTION 7: SELF-GENERATING COUNTER TOP STEAM JACKETED KETTLES Ref. Page 11 - Item 22 MODELS EC-5 & EC-6 (7.5 KH Elements) VOLTAGE ELEMENT NO. TRANSFORMER NO. 7-5015 not required 7-5045 not required 7-5017 not required 220/380 7-5016 not required 240/416 7-5017 not required...
  • Page 16: Wiring Diagrams

    WIRING DIAGRAMS SECTION MODELS EC-5 & EC-6...
  • Page 17 WIRING DIAGRAMS SECTION MODELS EC-5 & EC-6...
