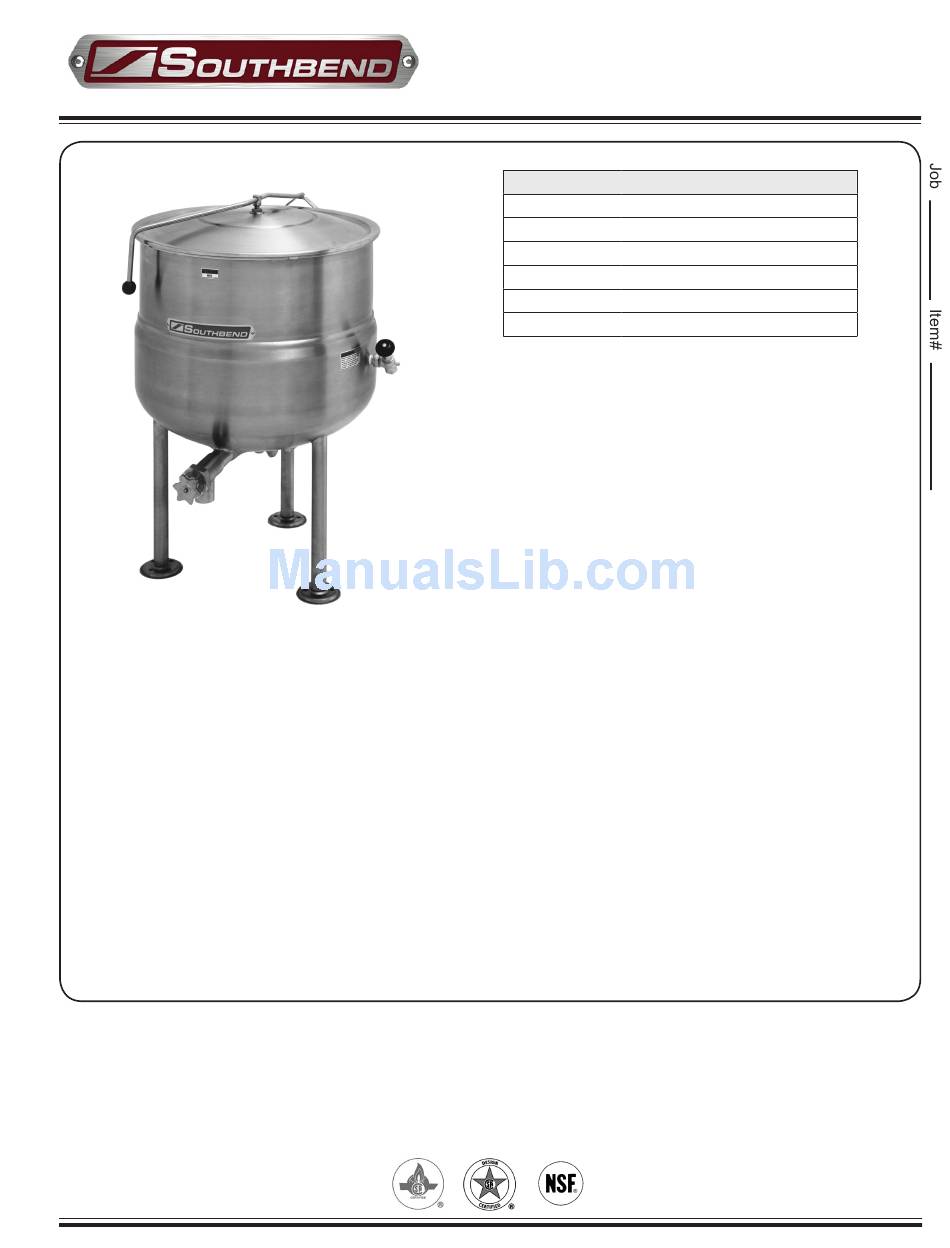

Southbend KDLS-100 Specification Sheet

SPECIFICATIONS:
Shall be a Southbend Model _________________________,
direct steam connected tri-leg kettle. A double wall kettle interior
shall form a steam jacket around the lower 2/3 of the kettle. The
bottom of the kettle shall be of hemispherical design for superior
heat circulation.
Unit shall be mounted on stainless steel tubular tri-legs. Each
leg shall be fitted with a 4 hole, adjustable, flanged foot for
securing to the floor.
Construction shall be all welded satin finish stainless steel, type
304. The liner on 20, 30 and 40 gallon models shall be standard
316 for high acid content cooking.
Convenience features shall include 2" (50mm) sanitary draw-off
valve, 20, 30 and 40 gallon models are supplied with a hinged
counterbalanced stainless steel domed cover. The 60, 80 and
100 gallon models are supplied with a spring assist hinged
stainless steel domed cover.
Form KDLS Rev 2 (November/2010)
OPERATION SHALL BE BY:
Direct steam at a minimum of 5 PSI (34 kPa) and a maximum of 35
PSI (241 kPa).
OPTIONAL ITEMS AT EXTRA COST:
 Type 316 stainless steel liner for high acid content cooking for
 50 PSI (345kPa) high pressure operation for higher cooking
 3" (76 mm) draw-off valve (TVT-3)
 2" (50 mm) dairy valve (DDO-2T)
 3" (76 mm) dairy valve (DDO-3T)
 Spring assist hinged cover for 20, 30 or 40 gallon models (CH-)
 Etched gallon markings (GM-)
 Etched litre markings (LM-)
 Single pantry faucet with swing spout (SF-18)
 Double pantry faucet with swing spout (DF-18)
 Two piece hinged stainless steel cover (2PHC-)
ACCESSORIES:
 Triple basket assembly (TBA-)
 Steam trap assembly consisting of steam trap, steam control
 Perforated strainer for draw-off valve (TPS-)
 Solid stainless steel disc for draw-off valve (TSS-)
 Strainer hook (SH)
 Graduated measuring strip (CMS-)
www.yatesgd.com www.yatesgraphicdesign.com
M
odel
KDLS-20 20 Gallon
KDLS-30 30 Gallon
KDLS-40 40 Gallon
KDLS-60 60 Gallon
KDLS-80 80 Gallon
KDLS-100 100 Gallon
60, 80 and 100 gallon models
temperature for 20, 30, 40 and 60 gallon models
valve, check valve and line strainer (STA-2)
D S
irect team
t -L K
ri eg ettLe
C
apaCity
76 Liter
114 Liter
152 Liter
227 Liter
303 Liter
379 Liter
