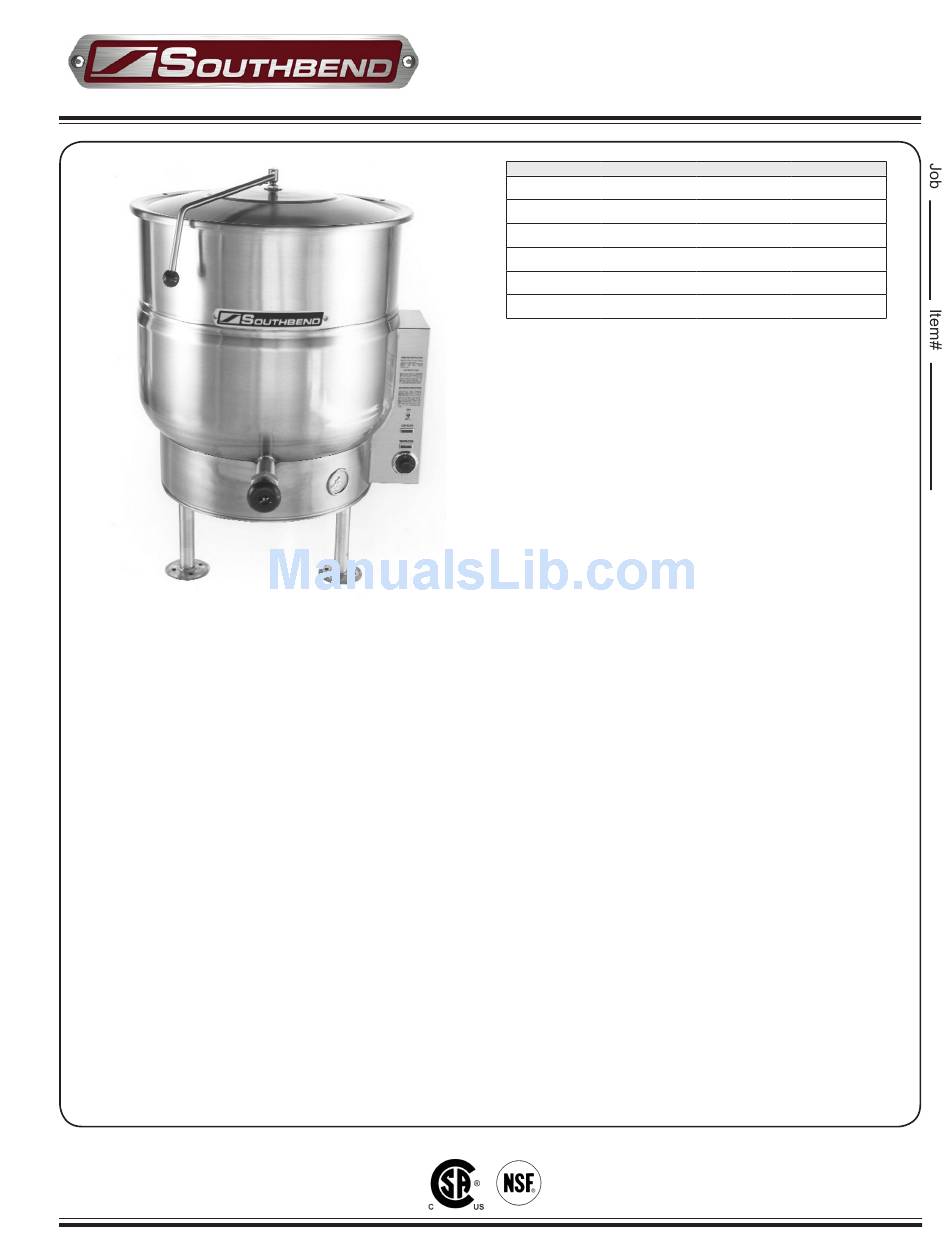

Southbend KELS-100 Specification Sheet

SPECIFICATIONS:
Shall be a Southbend Model_________________________, self-
generating, electric, tri-leg kettle, ASME Code stamped, National Board
Registered, c-CSA-us and NSF certified. A double wall kettle interior
shall form a steam jacket around the lower 2/3 of the kettle. The jacket
enclosure shall contain distilled water which is factory sealed. The
bottom of the kettle shall be of hemispherical design for superior heat
circulation. Kettle will be mounted on 3 stainless steel tubular legs fitted
with a 4-hole adjustable foot for securing unit to the floor.
Construction shall be all welded #4 finish stainless steel type 304. The
liner on the 20, 30 and 40 gallon models shall be standard 316 for high
acid content cooking. The controls shall be integrally mounted and shall
include a power switch, thermostat, pilot light, low water light, vacuum/
pressure gauge, safety valve, and low water shut off.
The kettle shall be standard with removable elements. The 20, 30 and
40 gallon models are supplied with a hinged, counter-balanced, stainless
steel, domed cover. The 60, 80 and 100 gallon models are supplied
with a spring-assist, hinged, stainless steel, domed cover. The kettle
shall include a 2" (50 mm) draw-off valve.
The kettle shall operate in a temperature range of 165°F to 285°F (74°C
to 140°C) at a maximum pressure of 50 psi (345kPa).
Form KELS Rev 1 (November/2010)
OPERATION SHALL BE BY:
Electrically, self-generating closed steam system equipped for operation on:




OPTIONAL ITEMS AT EXTRA COST:



















ACCESSORIES:











www.yatesgd.com www.yatesgraphicdesign.com
M W
odel k
KELS-20 12
KELS-30 15
KELS-40 18
KELS-60 18
KELS-80 18
KELS-100 24
208 VAC, 1 Phase, 50/60 Hz. (20 and 30 gallon only)
208 VAC, 3 Phase, 50/60 Hz.
240 VAC, 1 Phase, 50/60 Hz. (20 and 30 gallon only)
240 VAC, 3 Phase, 50/60 Hz.
Type 316 stainless steel liner (60, 80 and 100 gallon models)
3" (76 mm) draw-off valve (TVT-3)
2" (50 mm) dairy valve (DDO-2T)
3" (76 mm) dairy valve (DDO-3T)
24 kw on 40, 60, 80 gallon
33 kw on 60, 80, 100 gallon
220 VAC, 1 Phase, 50/60 Hz (20 and 30 gallon only)
220 VAC, 3 Phase, 50/60 Hz.
380 VAC, 3 Phase, 50/60 Hz.
415 VAC, 3 Phase, 50/60 Hz.
480 VAC, 3 Phase, 50/60 Hz.
600 VAC, 3 Phase, 50/60 Hz.
380/220 VAC, 3 Phase, 50/60 Hz. 4 wire
415/240 VAC, 3 Phase, 50/60 Hz. 4 wire
Spring assist hinged cover for 20, 30 or 40 gallon models (CH-)
Two piece hinged stainless steel cover (2PHC-)
Etched gallon markings (GM-)
Etched litre markings(LM-)
Correctional package
Single pantry faucet with swing spout (SF-18)
Double pantry faucet with swing spout (DF-18)
One piece lift off cover (C-)
Triple basket assembly (TBA-)
Perforated strainer for draw-off valve (TPS-)
Solid stainless steel disc for draw-off valve (TSS-)
Graduated measuring strip (CMS-)
Strainer hook (SH)
Draw-off valve hose kit (DVHK-2)
Calibrated thermostat dial "F"
Calibrated thermostat dial "C"
E S
lEctric tEam
t -l K
ri Eg EttlE
C
apaCity
20 Gallon 76 Liter
30 Gallon 114 Liter
40 Gallon 152 Liter
60 Gallon 227 Liter
80 Gallon 303 Liter
100 Gallon 379 Liter
