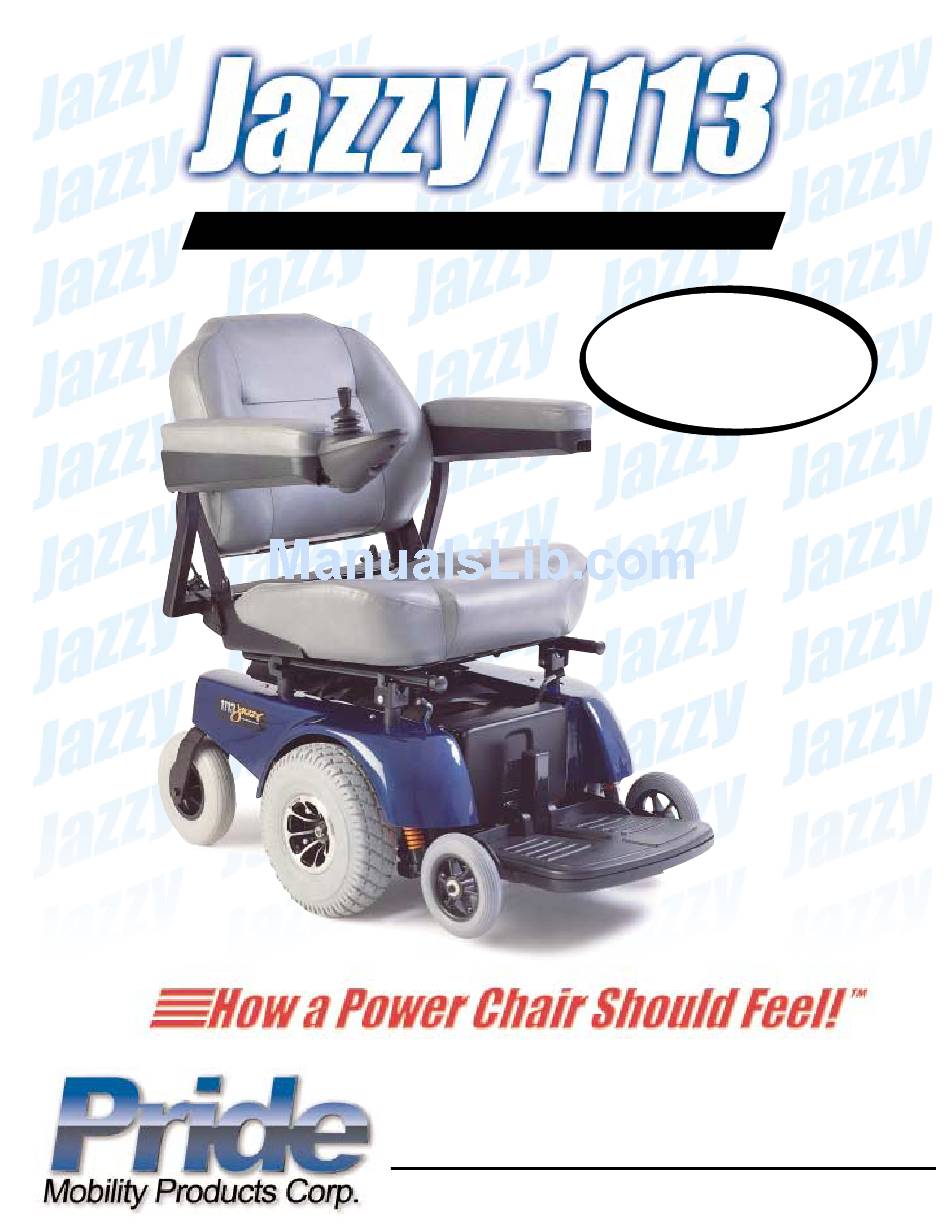

Owner's Manual
Exeter, PA
St. Catharines, ON
ATTENTION:
Please read the content
of your owner’s manual
before operating your
power chair.
1-800-800-8586
www.pridemobility.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Jazzy 1113 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pride Mobility Jazzy 1113

Summary of Contents for Pride Mobility Jazzy 1113

  • Page 1 Owner’s Manual ATTENTION: Please read the content of your owner’s manual before operating your power chair. Exeter, PA St. Catharines, ON 1-800-800-8586 www.pridemobility.com...
  • Page 2 WARNING! Failure to heed the warnings in this owner’s manual may result in personal injury. CAUTION! Failure to heed the cautions in this owner’s manual may result in damage to your power chair. Copyright ©2003 Pride Mobility Products Corp. INFMANU 1246 www.pridemobility.com US Jazzy 1113/Rev I/Feb03...

  • Page 3: Table Of Contents

    C O N T E N T S INTRODUCTION ......................... 4 SAFETY ............................6 III. EMI/RFI ............................14 IV. THE JAZZY 1113 ........................16 DISASSEMBLY ......................... 21 VI. COMFORT ADJUSTMENTS ....................24 VII. ASSEMBLY ..........................28 VIII. OPERATION ..........................31 IX.

  • Page 4: Introduction

    I N T R O D U C T I O N INTRODUCTION Welcome to Pride Mobility Products Corporation (Pride). Congratulations on the purchase of your new Pride Power Chair. The Pride Power Chair design combines the most advanced state-of-the-art components with modern, attractive styling.

  • Page 5: I. Introduction

    Phone Number:________________________________________________________________________ Purchase Date:________________________________________________________________________ NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact us and we will be glad to send you a new one immediately. US Jazzy 1113/Rev I/Feb03 www.pridemobility.com...

  • Page 6: Safety

    Check for proper tire inflation. Maintain 30-35 psi in each tire (if equipped with pneumatic tires). n Check all electrical connections. Make sure they are tight and not corroded. n Check all controller connections to the electronics tray. Make sure they are secured properly. www.pridemobility.com US Jazzy 1113/Rev I/Feb03...

  • Page 7: Ii. Safety

    If your power chair starts to move down the incline faster than you anticipated or desired, allow it to come to a complete stop by releasing the joystick, then push the joystick forward slightly to ensure a safely controlled descent. US Jazzy 1113/Rev I/Feb03 www.pridemobility.com...
  • Page 8 – especially at high speed while turning), and abrupt directional changes. High cornering speeds are not recommended. If you feel that you may tip over in a corner, reduce your speed and steering angle (i.e., lessen the sharpness of the turn) to prevent your power chair from tipping. www.pridemobility.com US Jazzy 1113/Rev I/Feb03...

  • Page 9: Freewheel Mode

    Proceed with extreme caution when driving near raised surfaces, unprotected ledges and/or drop-offs (curbs, porches, stairs, etc.). The correct method for approaching a curb is illustrated in figure 1a. Figure 1a. Correct Curb Approach (Correct and Incorrect) US Jazzy 1113/Rev I/Feb03 www.pridemobility.com...

  • Page 10: Public Streets And Roadways

    If you will be traveling with your power chair, you may find it necessary to use a lift/elevation product to aid in transportation. Pride recommends that you closely review the instructions, specifications, and safety information set forth by the manufacturer of the lift/elevation product before using that product. www.pridemobility.com US Jazzy 1113/Rev I/Feb03...

  • Page 11: Motor Vehicle Transport

    Turn the power off. See VIII. “Operation.” n Ensure your power chair is not in freewheel mode. See IV. “The Jazzy 1113.” n Turn both caster wheels toward the transfer destination to improve power chair stability during transfer.

  • Page 12: Reaching And Bending

    Prescription Drugs/Physical Limitations Users must exercise care and common sense when operating a power chair. This includes awareness of safety issues when taking prescribed or over-the-counter drugs or when the user has specific physical limitations. www.pridemobility.com US Jazzy 1113/Rev I/Feb03...

  • Page 13: Removable Parts

    Removable Parts WARNING! Do not attempt to lift or move a power chair by any of its removable parts. Personal injury and/or damage to the power chair may result. US Jazzy 1113/Rev I/Feb03 www.pridemobility.com...
  • Page 14 An affected power chair’s movement can be erratic. It may move by itself or come to a sudden stop. Furthermore, it is possible for EMI/RFI to unexpectedly release the brakes on a power chair. Some intense sources of EMI/RFI can even damage the control system of your Jazzy. www.pridemobility.com US Jazzy 1113/Rev I/Feb03...

  • Page 15: Iii. Emi/Rfi

    But it is always possible that problems could arise if you are close to a source of radio waves. Therefore, it is very important to be alert to this possibility. The Jazzy 1113 meets or exceeds an immunity level of at least 20 V/m.
  • Page 16 See XI. “Optional Accessories” in this manual. The power base is the heart of the Jazzy 1113. The power base assembly includes two drive wheels, two anti-tip wheels, two caster wheels and harness connectors. See figures 1b, 2, and 3.

  • Page 17: The Jazzy 1113

    Rear battery and case: 26 lbs. (U-1) (Battery 24.5 lbs.) Battery well frame: 13 lbs. Front frame: 2.5 lbs. Right frame assembly: 33 lbs. Left frame assembly: 33 lbs. Warranty: Lifetime limited warranty on frame 2-year limited electronics warranty 18 months on drive motors US Jazzy 1113/Rev I/Feb03 www.pridemobility.com...
  • Page 18 MAIN CIRCUIT BREAKER BATTERY CHARGER AC POWER CORD RECEPTACLE Figure 2. Power Base Back View SEAT POSTS REAR BATTERY BOX MOTOR CONNECTORS BATTERY CONNECTORS FRONT BATTERY BOX SEAT POSTS Figure 3. Power Base Top View www.pridemobility.com US Jazzy 1113/Rev I/Feb03...
  • Page 19 The dots are positioned so that you can align the flat side of the male connector with the flat side of the female connector before making the connection. CAUTION! Failure to properly align the connectors can result in damage to the controller, the onboard charger, and the connectors. US Jazzy 1113/Rev I/Feb03 www.pridemobility.com...
  • Page 20 CAUTION! It is important to remember that when your power chair is in freewheel mode, the electronic braking system is disengaged. If a lever is difficult to move in either direction, rock the Jazzy 1113 back and forth slightly. The lever should then move to the desired position.

  • Page 21: Disassembly

    Figure 4. The Jazzy 1113 Component Assemblies Note: During both the disassembly and the assembly of the Jazzy 1113, you may find it helpful to engage the Jazzy drive motors so that it does not roll while you are disassembling or assembling it. See IV. “The Jazzy 1113.”...

  • Page 22: V. Disassembly

    Squeeze the connector latch release levers to disconnect. 5. Disconnect the right motor connector from its matching socket located on the right frame assembly. Squeeze the connector latch release levers to disconnect. Figure 7. Remove the Seat www.pridemobility.com US Jazzy 1113/Rev I/Feb03...
  • Page 23 7. Carefully let the left frame assembly tilt to a resting position. Figure 10. Front Frame US Jazzy 1113/Rev I/Feb03 www.pridemobility.com...

  • Page 24: Armrest Width

    CAUTION ! If your Jazzy 1113 was configured at your local Pride provider or service center, please consult your health care professional before changing seat position or making any other adjustment.
  • Page 25 The controller can easily slide out away from the armrest, or in toward the armrest. To extend the controller: 1. Use a 3/16-in. hex wrench to loosen the setscrew. See figure 14. 2. Slide the controller mounting bracket into or out of the armrest to the desired position. US Jazzy 1113/Rev I/Feb03 www.pridemobility.com...

  • Page 26: Controller Position

    3. Tighten the setscrew by turning it clockwise. FOOTREST ANGLE ADJUSTMENT USE A WIRE TIE (SCREW LOCATED TO SUPPORT THE UNDERNEATH FOOTREST) CONTROLLER CABLE FOOTREST HEIGHT ADJUSTMENT Figure 15. Wire Tie Location Figure 16. Footrest Adjustment www.pridemobility.com US Jazzy 1113/Rev I/Feb03...

  • Page 27: Comfort Adjustments

    11. Reinstall the four seat posts. 12. Reinstall both battery boxes. 13. Plug the left and right motor connectors back into their sockets. 14. Reinstall the seat. 15. Plug the controller connectors into the electronics tray. Figure 17. Anti-Tip Adjustment US Jazzy 1113/Rev I/Feb03 www.pridemobility.com...
  • Page 28 WARNING ! Make certain that the front frame is snapped securely to both the right frame assembly and to the left frame assembly. Figure 18. Frame Assemblies Figure 19. Front Frame Assembly www.pridemobility.com US Jazzy 1113/Rev I/Feb03...

  • Page 29: Vii. Assembly

    3. Push the front of the seat frame down until both the left and the Figure 22. Rear Electronics Tray right frame sides lock into the front seat post tower mounts. See figures 23 and 24. US Jazzy 1113/Rev I/Feb03 www.pridemobility.com...
  • Page 30 If your Jazzy is equipped with a Versa Seat or Versa Tilt, please refer to the instruction manual supplied with the Versa Seat/Versa Tilt. WARNING! The Versa Tilt Seating System used on the Jazzy 1113 has an 18-inch maximum seat pan width, an 18-inch maximum seat pan depth, and a 160-pound weight capacity.
  • Page 31 WARNING! If your power chair begins to move in an unexpected manner, immediately release the joystick. Unless the joystick is damaged, this action should stop your power chair. Keypad The keypad is located in front of the joystick. It contains keys necessary to operate your Jazzy. US Jazzy 1113/Rev I/Feb03 www.pridemobility.com...

  • Page 32: Viii. Operation

    The speed/profile setting is displayed on the maximum speed/profile indicator. If your power chair was programmed with a drive profile, contact your authorized Pride provider for more information. www.pridemobility.com US Jazzy 1113/Rev I/Feb03...
  • Page 33 This reduces your power chair’s “power,” which could also reduce your power chair’s speed, and allows the electrical components and motors to cool down. When the temperature returns to a safe level, your power chair resumes its normal operation. US Jazzy 1113/Rev I/Feb03 www.pridemobility.com...

  • Page 34: Troubleshooting

    The parking brakes have a bad connection. Check the parking brake and motor connections. Make sure the controller connections are secure. An excessive voltage has been applied to the controller. This is usually caused by a poor battery connection. Check the battery connections. www.pridemobility.com US Jazzy 1113/Rev I/Feb03...

  • Page 35: Remote Plus Controller

    The keypad is located directly in front of the joystick. See figure 30. It contains keys that you will use to control your power chair. On/Off Key The on/off keys toggles the system power on and off. US Jazzy 1113/Rev I/Feb03 www.pridemobility.com...

  • Page 36: Remote Plus Keypad

    Ripple up and down of lights: The joystick was not in the center position when the controller was turned on. If you get “ripple up and down of lights”, turn off the controller, allow the joystick to return to the center position, then turn on the controller. www.pridemobility.com US Jazzy 1113/Rev I/Feb03...

  • Page 37: Speed Settings

    See your authorized Pride provider for more information. Controller Communications Cable The controller communications cable provides the joystick module with a connection to the power module at the back of the power base. See figure 29. US Jazzy 1113/Rev I/Feb03 www.pridemobility.com...

  • Page 38: Power Module

    Right Motor Wiring Fault Check right motor wiring. Right Motor Disconnected Check right motor wiring. Left Motor Wiring Fault Check left motor wiring. Left Motor Disconnected Check left motor wiring. Low Battery Voltage Check batteries/battery wiring. www.pridemobility.com US Jazzy 1113/Rev I/Feb03...
  • Page 39 If this has happened and the all the segments on the battery condition meter are flashing, you may have set a fault code. See “Fault Codes.” Keypad The keypad is located directly in front of the joystick. It contains keys that you will use to control your power chair. See figure 32. US Jazzy 1113/Rev I/Feb03 www.pridemobility.com...
  • Page 40 The battery condition meter consists of six lights arranged in an arc over the battery icon. From left to right, the first two are red, the second two are orange and the last two are green. These lights give you an accurate indication of your usable battery www.pridemobility.com US Jazzy 1113/Rev I/Feb03...
  • Page 41 You may use an off-board charger to charge the power chair batteries through the 3-pin socket located on the front of the Europa. See figure 32. If you use and off-board charger, the charger current should not exceed 8 amps. Contact your authorized Pride provider for more information. US Jazzy 1113/Rev I/Feb03 www.pridemobility.com...
  • Page 42 The controller must be turned off and then on again even if the source of the fault is removed. If you cannot resolve the problem, contact your authorized Pride provider. www.pridemobility.com US Jazzy 1113/Rev I/Feb03...

  • Page 43: Batteries And Charging

    When the batteries are fully charged, the needle will vibrate on or about the zero mark on the meter scale. 6. When your Jazzy 1113’s batteries are fully charged, unplug the power cord from the wall outlet, wind it up, and store it in the seat pouch located on the back of the seat.
  • Page 44 Daily Use If you use your Jazzy 1113 on a daily basis, charge the batteries as soon as you are finished using it for the day. Then, your Jazzy 1113 will be ready each morning to give you a full day’s service. We recommend that you charge the batteries 8 to 14 hours after daily use.
  • Page 45 They do not have a “memory” like nickel-cadmium batteries. We work closely with our battery manufacturer to provide a battery that best suits the Jazzy 1113’s specific demands. Fresh batteries arrive regularly and are promptly shipped with a full charge. During shipping, the batteries encounter temperature extremes that may influence their initial performance.
  • Page 46 Note: If you are storing a Jazzy 1113 for an extended period of time, you may wish to block the unit up off the ground with several boards under the frame. This keeps the tires off the ground and prevents the possibility of flat spots developing.

  • Page 47: Care And Maintenance

    Lead Acid or Gel Cell). n Temperatures above 122° F may cause the Jazzy 1113 to operate at a reduced speed. This is a safety feature built into the controller that helps prevent damage to the motor and other electrical components. See VIII.

  • Page 48: Daily Checks

    3. Slowly push the joystick forward until you hear the electric brakes click. Immediately release the joystick. You must be able to hear each electrical brake operating within a few seconds of joystick movement. Repeat this test three times, pushing the joystick backwards, then left, and then right. www.pridemobility.com US Jazzy 1113/Rev I/Feb03...

  • Page 49: Monthly/Yearly Checks

    See VI. “Comfort Adjustments” in this manual. n Check for extreme wear on the anti-tip wheels. Replace them as necessary. n Check for drive tire wear. See an authorized Pride Mobility Products Corporation provider for repair. n Check the rear casters for wear. Replace as necessary.
  • Page 50 TIRES AND TUBES REMOVE THIS NUT & WASHER TO REMOVE WHEEL If your Jazzy 1113 is equipped with pneumatic tires, you should check the air pressure at least once a week. This prolongs the life Figure 33. Drive Wheel of your tires and helps to ensure the perfect operation of your chair.

  • Page 51: Battery Replacement

    Place the rubber covers over the terminals. WARNING! Make sure you tighten the fasteners so that the connections are secure. NEW MOTOR BRUSHES MOTOR BRUSH CAPS WORN MOTOR BRUSH Figure 38. Motor Brushes Figure 37. Motor Brush Caps US Jazzy 1113/Rev I/Feb03 www.pridemobility.com...

  • Page 52: Corrective Maintenance

    Disconnect both batteries before load testing, and follow the directions that came with the load tester. If either one of the batteries fails the load test, replace both of them. If your Jazzy 1113 still does not power up, contact your local Pride provider.

  • Page 53: Positioning Belt

    WHEN TO SEE YOUR PRIDE PROVIDER FOR SERVICE The following symptoms could indicate a serious problem with your Jazzy 1113. If necessary, contact an authorized Pride provider. When calling, have the model number, serial number, nature of the problem, and the trouble code if available.

  • Page 54: Xi. Optional Accessories

    Elevating Leg Rests (ELRs) allow you to raise each leg manually to aid in circulation. The ELRs are length- adjustable to accommodate different size legs. SWING-AWAY FOOT RESTS Swing-away Foot Rests provide the Jazzy 1113 with the ability to swing each foot rest to the side for an easier transfer. SPECIALTY SEATING SYSTEMS Your Jazzy 1113 may be equipped with specialty seating or the Versa Seat.
  • Page 55 LIFETIME LIMITED WARRANTY For the lifetime of your Jazzy 1113 from date of purchase, Pride will repair or replace at our option to the original purchaser free of charge, any of the following parts found upon examination by an authorized representative of...

  • Page 56: Xii. Warranty

    This warranty gives you specific rights, and you may also have other rights which vary from state to state. Please fill out and return the warranty card to Pride. This assists Pride in providing the best possible Technical and Customer Service. www.pridemobility.com US Jazzy 1113/Rev I/Feb03...
  • Page 57 N O T E S US Jazzy 1113/Rev I/Feb03 www.pridemobility.com...
  • Page 58 N O T E S www.pridemobility.com US Jazzy 1113/Rev I/Feb03...
  • Page 59 US Jazzy 1113/Rev I/Feb03 www.pridemobility.com...
  • Page 60 Quality Control-Model 1113 Thank you for making the Pride Jazzy your choice in power chairs. We have thoroughly inspected your Jazzy. The following checkmarks indicate that it has been test driven and inspected. Controller Model #__________ Joystick Serial # Serial #__________ Controller Serial # Inclusion of all Parts Fit and Finish...
