Pride Mobility Jazzy 1121 Owner's Manual

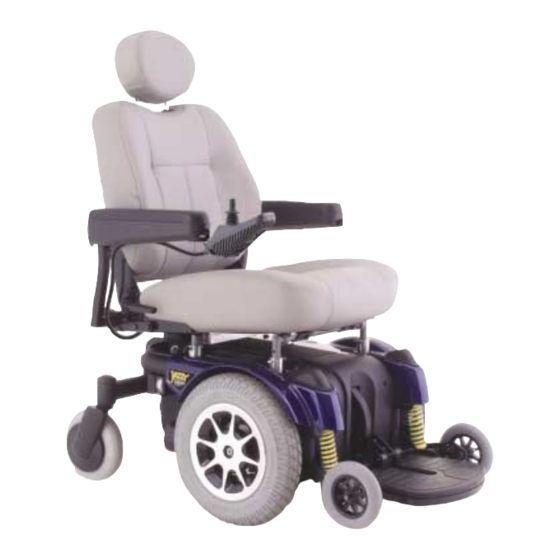

Jazzy 1121 power chair
Hide thumbs Also See for Jazzy 1121:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
Owner's Manual
Please read the content
of your owner's manual
before operating your
Exeter, PA
St. Catharines, ON
ATTENTION:
power chair.
1-800-800-8586
www.pridemobility.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Jazzy 1121 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pride Mobility Jazzy 1121

Summary of Contents for Pride Mobility Jazzy 1121

  • Page 1 Owner’s Manual ATTENTION: Please read the content of your owner’s manual before operating your power chair. Exeter, PA St. Catharines, ON 1-800-800-8586 www.pridemobility.com...
  • Page 2 PROHIBITED! These actions should be prohibited. These actions should not be performed at any time or in any circumstances. Performing a prohibited action can cause injury to personnel and/ or damage to equipment (black symbol with red circle and red slash). Copyright © 2005 Pride Mobility Products Corp. INFMANU1930/RevH/Dec05 www.pridemobility.com Jazzy 1121...

  • Page 3: Table Of Contents

    This owner’s manual is compiled from the latest specifications and product information available at the time of publication. We reserve the right to make changes as they become necessary. Any changes to our products may cause slight variations between the illustrations and explanations in this manual and the product you have purchased. Jazzy 1121 www.pridemobility.com...
  • Page 4 I N T R O D U C T I O N SAFETY WELCOME to Pride Mobility Products Corporation (Pride). The power chair you have purchased combines state-of- the-art components with safety, comfort, and styling in mind. We are confident that these design features will provide you with the conveniences you expect during your daily activities.
  • Page 5 These message boards invite you to communicate with other Pride customers as well as Pride represen- tatives who are available to assist you with any questions or concerns you may have. My Authorized Pride Provider: Name:_____________________________________________________________________________________ Address:___________________________________________________________________________________ Phone Number:______________________________________________________________________________ Purchase Date:_______________________________________________________________________________ Jazzy 1121 www.pridemobility.com...
  • Page 6 ! Check all controller connections to the electronics tray. Make sure they are secured properly. ! Check the brakes. See VIII. “Care and Maintenance.” ! Check battery charge. See VI. “Batteries and Charging.” NOTE: If you discover a problem, contact your authorized Pride Provider for assistance. www.pridemobility.com Jazzy 1121...
  • Page 7 WARNING! When on any sort of an incline or decline, never place the power chair in freewheel mode while seated on it or standing next to it. Doing so may result in personal injury and/or damage to your power chair. WARNING! Never travel down an incline backward. This may result in personal injury. Jazzy 1121 www.pridemobility.com...
  • Page 8 ! Reduce your power chair’s speed when driving on uneven terrain and/or soft surfaces. ! Avoid tall grass that can entangle the running gear. ! Avoid loosely packed gravel and sand. ! If you feel unsure about a driving surface, avoid that surface. www.pridemobility.com Jazzy 1121...
  • Page 9 ! Determine if the door opens toward or away from you. ! Drive your power chair gently and slowly forward to push the door open. Or drive your power chair gently and slowly backward to pull the door open. Jazzy 1121 www.pridemobility.com...
  • Page 10 WARNING! Before transferring, position yourself as far back as possible in the power chair seat to prevent the power chair from tipping forward during transfer and causing injury. Figure 4. Ideal Transfer Position www.pridemobility.com Jazzy 1121...
  • Page 11 WARNING! Battery posts, terminals, and related accessories contain lead and lead compounds. Wash hands after handling. WARNING! Always protect the batteries from freezing and never charge a frozen battery. Charging a frozen battery may result in personal injury and/or damage to the battery. Jazzy 1121 www.pridemobility.com...
  • Page 12 NOTE: For further information on EMI/RFI, go to the Resource Center on www.pridemobility.com. If unin- tended motion or brake release occurs, turn your power chair off as soon as it is safe to do so. Call Pride at 800- 424-8205 to report the incident. www.pridemobility.com Jazzy 1121...
  • Page 13 SEATBACK ARMRESTS JOYSTICK SEAT ASSEMBLY CONTROLLER (VSI SHOWN) SEAT BASE BODY SHROUD FOOT RIGGING (FOOT PLATFORM POWER BASE SHOWN) ASSEMBLY ANTI-TIP WHEELS CASTER WHEEL DRIVE WHEEL Figure 5. The Jazzy 1121 Jazzy 1121 www.pridemobility.com...
  • Page 14 70-amp PG VSI (standard with 1121 Heavy Duty option) Weight Capacity: 300 lbs.* 400 lbs. with 1121 Heavy Duty option* Component Weights: Base: 135.5 lbs. Medium-Back Seat: 37 lbs. Batteries: 38 lbs. each *Depending on user weight, battery amp hour rating (AH), and terrain. www.pridemobility.com Jazzy 1121...
  • Page 15 (LOCATED UNDER ELECTRONICS TRAY) REAR SEAT TOWERS ELECTRONICS TRAY FRONT SEAT TOWER ONBOARD BATTERY CHARGER (UNDERNEATH ELECTRONICS TRAY) MOTOR/BRAKE ASSEMBLY Figure 6. The Jazzy 1121 Power Base CHARGER INHIBIT MAIN CIRCUIT CHARGER FUSE CONTROLLER CONNECTOR CONNECTOR BREAKER AMMETER CHARGER POWER CORD RECEPTACLE Figure 7.
  • Page 16 Active-Trac Suspension The Jazzy 1121 is equipped with Active-Trac Suspension (ATS). ATS is a suspension system designed to make your power chair traverse different types of terrain and obstacles while maintaining smooth operation. With ATS, the front anti- tip wheels work in conjunction with the motor suspension to help you maneuver over obstacles in excess of three inches in height.
  • Page 17 NOTE: If the lever is difficult to move in either direction, rock your power chair back and forth slightly. The lever should then move to the desired position. Figure 8. Freewheel Mode (Drive Disengaged) Figure 9. Drive Mode (Drive Engaged) Jazzy 1121 www.pridemobility.com...

  • Page 18: Initial Assembly

    Replacement nylon insert lock nuts are available at local hardware stores or through your authorized Pride Provider. SEATBACK ANGLE ADJUSTMENT SEAT INSTALLATION CONTROLLER POSITION SEAT HEIGHT/ANGLE ADJUSTMENT FOOT PLATFORM HEIGHT/ ADJUSTMENT ANTI-TIP WHEEL ADJUSTMENT Figure 10. Jazzy 1121 Assembly View www.pridemobility.com Jazzy 1121...
  • Page 19 7. Plug the controller cable into the connector on the electronics tray. See figure 7. 8. Secure the controller cable to the armrest receiver with one or more wire ties. SEAT LATCH SAFETY REAR TRAPEZE BAR REAR EXTRUSION FRONT TRAPEZE BAR FRONT EXTRUSION Figure 11. Seat Installation Jazzy 1121 www.pridemobility.com...

  • Page 20: Comfort Adjustments

    4. Remove both extrusions from the bottom of the seat. 5. Reposition the extrusions on a different set of mounting holes. You must move both extrusions the same number of holes ei- Figure 13. Seat Height Adjustment ther forward or backwards. See figure 14. www.pridemobility.com Jazzy 1121...
  • Page 21 1. Locate the two armrest knobs on each side of the armrest re- ARMREST KNOB ceiver bracket. See figure 15. 2. Loosen the knobs. 3. Slide the armrests in or out to the desired width. 4. Tighten the knobs. Figure 15. Seatback Angle Adjustment Jazzy 1121 www.pridemobility.com...
  • Page 22 You can position the controller for either left-hand or right-hand use. WARNING! Do not place the controller cable so that it can be pinched in the seat frame or the power base frame. Figure 18. Underside of Armrest www.pridemobility.com Jazzy 1121...
  • Page 23 To rotate the ELRs: Push in release lever A. See figure 20. Rotate the ELRs. To adjust the ELR angle: 1. Press release lever B. See figure 20. 2. Move the leg rest to the desired angle. Jazzy 1121 www.pridemobility.com...
  • Page 24 6. Raise or lower the other anti-tip bracket so that it is at the same height. NOTE: Each drive tire must have 35 psi (2.4 bar) in order for the anti-tip wheels to be properly adjusted. ANTI-TIP WHEEL BRACKET ANTI-TIP WHEEL Figure 21. Anti-Tip Wheel Assembly www.pridemobility.com Jazzy 1121...
  • Page 25 NOTE: The power elevating seat option is equipped with a system that reduces the speed of the power chair by one - half when the seat is elevated more than 2.5-5 cm (1-2 inches). Always check to be sure this system is operating properly before using your power chair Figure 22. Power Elevating Seat Actuator Jazzy 1121 www.pridemobility.com...
  • Page 26 WARNING! Prevent personal injury! Do not attempt to drive the power chair with the seat facing to the side. Always return the seat to the forward facing position before operating the power chair. TOGGLE SWITCH Figure 23. Power Seat Switch www.pridemobility.com Jazzy 1121...

  • Page 27: Batteries And Charging

    5. When the batteries are fully charged, the needle vibrates on or about the 0 mark on the ammeter. Disconnect the charger power cord, wind up the cord and store it in a safe place. Jazzy 1121 www.pridemobility.com...
  • Page 28 If you use your power chair on a daily basis, charge the batteries as soon as you are finished using it. Your power chair will be ready each morning to give you a full day’s service. It is recommended that you charge the batteries 8 to 14 hours after daily use. www.pridemobility.com Jazzy 1121...
  • Page 29 It will be well worth it to take the time to break in your battery properly. NOTE:The useful life of a battery is quite often a reflection of the care it receives. Jazzy 1121 www.pridemobility.com...
  • Page 30 What about shipping? If you wish to use a freight company to ship your power chair to your final destination, repack your power chair in the original shipping container and ship the batteries in separate boxes. www.pridemobility.com Jazzy 1121...
  • Page 31 Unless the joystick is damaged, this action should stop your power chair. Keypad The keypad is located in front of the joystick. It contains keys necessary to operate your power chair. See figure 25. Jazzy 1121 www.pridemobility.com...
  • Page 32 If your power chair was programmed with a drive profile, contact your authorized Pride Provider for more information. NOTE: We recommend that the first few times you operate your power chair, you use the lowest speed setting until you become familiar with your new power chair. www.pridemobility.com Jazzy 1121...
  • Page 33 VSI when the battery charger is on. The charger inhibit connector is coded with colored dots. The dots are positioned so that you align the flat side of the male connector with the flat side of the female connector before making the connection. Jazzy 1121 www.pridemobility.com...
  • Page 34 The parking brakes have a bad connection. Check the parking brake and motor connections. Make sure the controller connections are secure. An excessive voltage has been applied to the controller. This is usually caused by a poor battery connection. Check the battery connections. www.pridemobility.com Jazzy 1121...

  • Page 35: Care And Maintenance

    M A I N T E N A N C E CARE AND MAINTENANCE Your Jazzy 1121 is a sophisticated power chair. Like any motorized vehicle, it requires routine maintenance checks. You can perform some of these checks, but others require assistance from an authorized Pride Provider. Preventive mainte- nance is very important.
  • Page 36 ! Check the caster forks for damage or fluttering which indicates that they may need to be adjusted or have the bearings replaced. See an authorized Pride Provider for repair. ! Keep your power chair clean and free of foreign material, such as mud, dirt, hair, food, drink, etc. www.pridemobility.com Jazzy 1121...
  • Page 37 3. If you are changing a pneumatic tire, completely deflate it before removing the wheel. 4. Remove the drive wheel nut and washer from the axle See figure 26. 5. Pull the wheel off the axle. 6. Remove the screws that fasten the two rim halves together. See figure 27. Jazzy 1121 www.pridemobility.com...
  • Page 38 (-) battery terminal. See figure 28. WARNING! Make sure you tighten the fasteners so that the connections are secure. BATTERY TERMINALS QUICK DISCONNECT Figure 28. Battery and Harness Figure 29. Battery Wiring Diagram Label www.pridemobility.com Jazzy 1121...
  • Page 39 Disconnect both batteries before load testing and follow the directions that come with the load tester. If either one of the batteries fails the load test, replace both of them. If your power chair still does not power up, contact your authorized Pride Provider. Jazzy 1121 www.pridemobility.com...
  • Page 40 Pride to be defective in material and/or workmanship: ! Bearings and bushings ! Plastic components, except body The battery is covered by a separate six-month warranty, provided by the battery manufacturer. The batteries are not warranted by Pride. www.pridemobility.com Jazzy 1121...
  • Page 41 Circumstances beyond the control of Pride Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically authorized, IN ADVANCE, by Pride Mobility Products Corporation ! Repairs and/or modifications made to any part without specific consent from Pride...
  • Page 42 N O T E S www.pridemobility.com Jazzy 1121...
  • Page 43 Q u a l i t y C o n t r o l - M o d e l 1 400 Quality Control - Jazzy 1121 Thank you for making the Pride Jazzy your choice in power chairs. We have thoroughly inspected your power chair. The following checkmarks indicate that it has been test driven and inspected.
