Audiovox AVD300T Owner's Manual

Audiovox AVD300T Owner's Manual

Audiovox slot-in dvd player/built-in tv tuner owner's manual
Hide thumbs

Advertisement

Quick Links

Download this manual

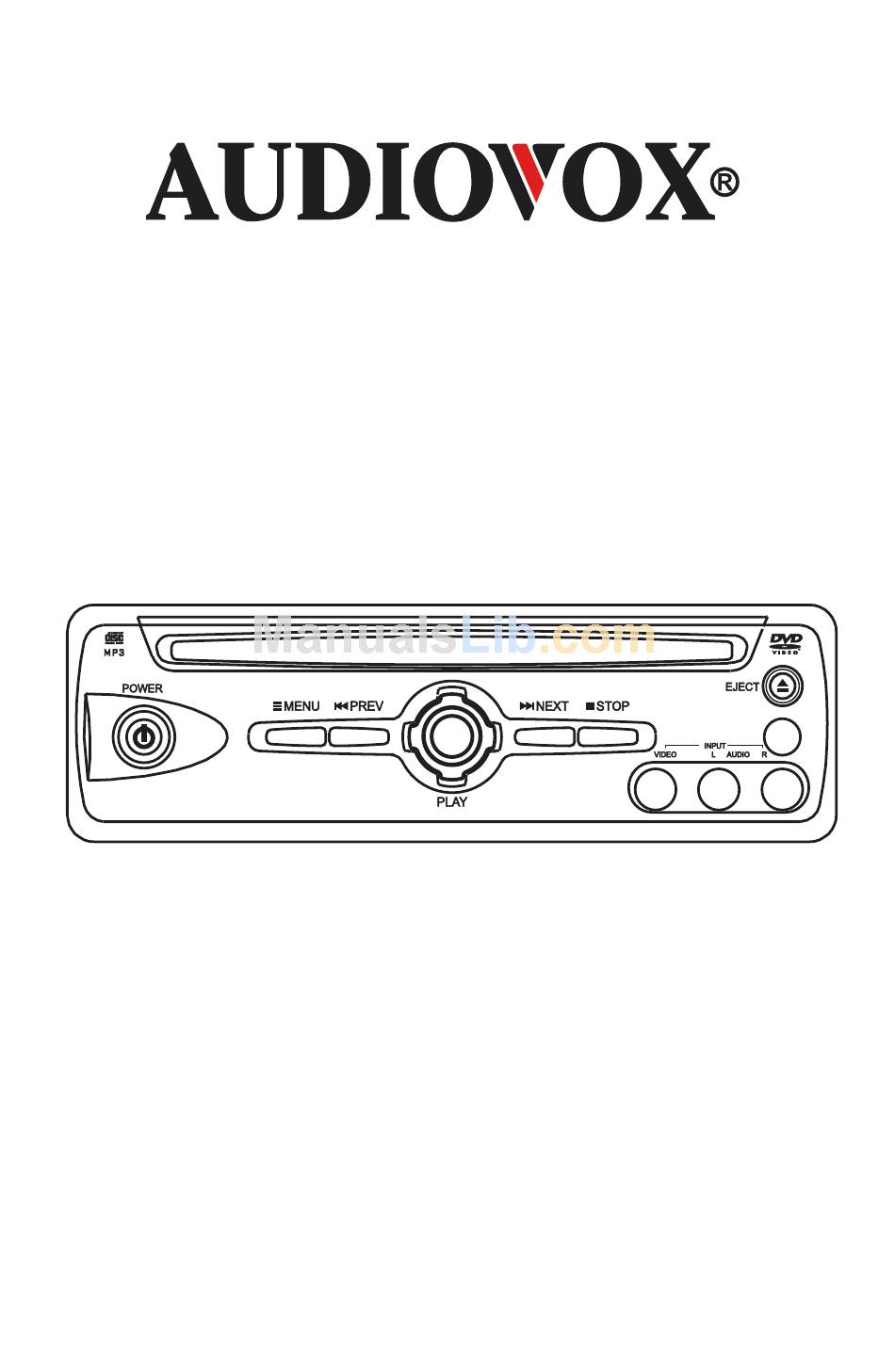

A V D 3 0 0 T
SLOT-IN DVD PLAYER WITH BUILT-IN TV TUNER
Owner's Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the AVD300T and is the answer not in the manual?

Questions and answers

Related Manuals for Audiovox AVD300T

Summary of Contents for Audiovox AVD300T

  • Page 1 A V D 3 0 0 T SLOT-IN DVD PLAYER WITH BUILT-IN TV TUNER Owner’s Manual...
  • Page 2 A . Welcome Thank you for choosing the AVD300T DVD Player. The AVD300T is designed to optimize the enjoyment of your favorite DVDs in the mo- bile environment. This DVD Player is constructed to provide years of reliable, trouble-free service. Please read this manual thoroughly prior to operating the player and save it for future reference.

  • Page 3: Safety Precaution

    For safety reasons do not allow children to unfasten seat-belts to change video media or make any adjustments to the system. Enjoy your enter- tainment system but always remember the safety of all passengers is the number one priority. It is unlawful in most states for a person to drive a motor vehicle which is equipped with a television viewer or screen that is located in the motor vehicle at any point forward of the back of the driver’s seat, or that is visible, directly or indirectly, to the driver while operating the vehicle.
  • Page 4 AVD300T and cause the DVD player to malfunction. If the AVD300T does not operate prop- erly under these conditions leave the AVD300T turned on for at least 30 minutes for the moisture to evaporate.
  • Page 5 C. Contents 1. Main Unit 2. Remote control with two AAA Batteries 3. Power Cable 4. Two (2) Brackets with four (4) Screws 5. Owner's Manual 6. Power Adaptor* (4-Pin to 2-Pin) Cable 7. DVRCA * Adaptor for connection to a second monitor 8.
  • Page 6 E. Remote Control View (Refer to Figure 2) 1) DVD/TV/ AUX Button 2) Power Button 3) Display Button 4) Angle Button 5) Subtitle Button 6) Repeat Button 7) A-B Repeat Button 8) Menu Button 9) Slow Button 10) Pause Button 11) Forward Scan Button 12) Reverse Scan Button 13) Skip+ Button...
  • Page 7 F. Connections 1. Powering Your DVD Player ( Refer to Figure 3) Connect the black wire (-) to the vehicle ground. Connect the red wire (+) to a switched (Accessory) 12VDC source. Plug the other end into the 12VDC input jack on the back of the unit. 2.
  • Page 8 3. Connecting to an Audiovox Overhead Monitor The AVD300T can be connected to Audiovox Overhead monitors with the supplied adaptors (DVRCA and 4 pin to 2 pin power adapter) when using the Audiovox accessory cable (part number 8010730). Plug in the 3 RCA jacks, white (left audio) to white, red (right audio) to red, and yellow (video) to yellow.
  • Page 9 b. Connect any of the two monitor ports on the back of the DVD player directly to the Movies 2 Go headrest hoods Model MMH56 B/T/G. Power, audio, video and IR signals are supplied through the DIN cable. c. Using the supplied adapter (Part Number DVRCA) the monitor port can be connected to any monitor.
  • Page 10 1. Basic Operation POWER EJECT PLAY SLOW PAUSE STOP NEXT PREVIOUS FORWARD REVERSE UP/DOWN/LEFT/RIGHT ENTER NUMBERS RETURN MENU REPEAT DISPLAY ANGLE SUBTITLE AUDIO ZOOM SETUP DVD/TV/AUX AUTO MEMORY CHANNEL UP CHANNEL DOWN Turn the unit on/off Eject the disc Start Play Play at 1/2, 1/4, 1/8 or 1/16 times speed Still Picture (1 time) Stop at the present playing point /...
  • Page 11 2. MENU A DVD is divided into sections called titles and chapters. When you play a DVD, a root menu of the disc will appear on the screen of your TV or Monitor. Contents of the menu will vary depending on the disc content.
  • Page 12 c. Press ‘DISPLAY’ a 3rd time to display the Elapsed Time for the chapter. The heading will disappear automatically in 3 seconds. Chapter Elapsed Time Screen Display d. Press ‘DISPLAY’ a 4th time to display the Remaining Time for the chapter.
  • Page 13 Angle Screen Display 3). SUBTITLE During disc playback press ‘SUBTITLE’ to select the desired sub- title language* current Subtitle Language Number (1) and the total Number of Subtitle Languages (2) will be displayed. If there are multiple languages press ‘SUBTITLE’ again to select another sub- title language.
  • Page 14 4). AUDIO During playback press ‘AUDIO’ to select the desired audio lan- guage * current Audio Channel Number (1) and the total number of Audio Channels (2) will be displayed. Press AUDIO again to select another audio language. The audio display will disappear automatically if the ‘AUDIO’...
  • Page 15 6). A-B REPEAT a. During playback press ‘A-B’ to set the Starting Point A. A-B Repeat Starting Point Screen Display b. Press ‘A-B’ a second time to set the Ending Point B and the player will repeatedly play the part between Point A and Point B. A-B Repeat Ending Point Screen Display c.
  • Page 16 7). REPEAT a. During playback press ‘REPEAT’ once to repeatedly play the cur- rent chapter. Chapter Repeat ON Screen Display b.During playback press ‘REPEAT’ again to repeatedly play the current title. Title Repeat ON Screen Display c. During playback press ‘REPEAT’ a 3rd time to repeat all Chapters and Titles.

  • Page 17: Playing Audio Cds

    d. Press “REPEAT” a 4th time, to resume normal play. 4. PLAYING AUDIO CDS When playing an audio CD press the DISPLAY button on the remote to view time information. The options below show you what information is available using this function. 1).

  • Page 18: Using The Repeat Feature

    3).Press ‘DISPLAY’ twice and TOTAL ELAPSED appears along with the current track playing and the total time that the CD has been playing. TOTAL ELAPSED Screen Display 4).Press ‘DISPLAY’ three times and TOTAL REMAIN appears along with the current track playing and the amount of time remaining on the CD.

  • Page 19: Playing Mp3 Discs

    5. PLAYING MP3 DISCS MP3 is a digital audio format. An audio CD-quality song is compressed into the MP3 format with no significant loss of audio quality. CD-R /RW discs that have been encoded in MP3 format are compatible with this device. Insert an MP3 and the DVD player will initialize the disc and the directory (folder) will be shown on the TV screen.
  • Page 20 Use the ( NEXT ) button to move to the next song. Press the (PREVIOUS) button to move to the beginning of the song. USING THE REPEAT FEATURE The default mode for the Repeat feature is OFF. Pressing REPEAT consecutively changes the repeat options: •...
  • Page 21 6. Playing JPEG file 1) Insert the JPEG Disc into tray. 2) Select JPEG file by pressing “UP/DOWN” button. 3) You can preview the JPEG file by pressing “Play” or “ENTER”. 4) Pressing the left or right button will rotate the JPEG in that direction. 5) When browsing the photos, you can reverse the photo horizontally by pressing “Up”...
  • Page 22 k. Press “display” 11th time, “COMPRESS TO CENTER H” will display on the screen, the picture will refresh from top and bot- tom to center. l. Press “display” 12th time, “COMPRESS TO CENTER V” will display on the screen, the picture will refresh from right and left to center.
  • Page 23 7. SETUP Press ‘SETUP’ to display the Main screen of the SETUP Menu on the screen. Press ‘SETUP’ again to exit the SETUP Menu and the unit will resume it’s last playback mode. Figure 31. Main SETUP Menu Screen 1) Press “Setup”, the ‘GENERAL SETUP’ will display on screen. a.
  • Page 24 b. Select ‘TV Type’ using UP/DOWN, and then press the RIGHT button to enter the submenu. Choose TV Type using UP/DOWN and then press ENTER to confirm the setting. Press the LEFT button to return. Figure 33. TV Type Screen Display c.
  • Page 25 2) When no disc inside the player, select “password” using LEFT/ RIGHT, then press ENTER. Press right to enter the submenu . Figure 42. PASSWORD CHANGE Menu Press ‘ENTER’ to enter the Password Change Page. Input the Old Password or the Default Password, the New Password, and the Confirmed New Password.
  • Page 26 3) When no disc inside the player select “Preference Page” by using LEFT/RIGHT, press ENTER to enter the Preference page. Figure 36. Preference Page Menu Screen a. Select “Audio” using the UP/DOWN buttons, then press right to enter the submenu. You can change the Audio Language by pressing UP/DOWN buttons.
  • Page 27 c. Select “Disc Menu” by using the UP/DOWN buttons, then press right to enter the submenu. You can change the Disc Menu Lan- guage using the UP/DOWN buttons. Figure 39. Preference Disc Menu Language After choosing the proper “Disc Menu” Setting, press Enter or LEFT return the root Menu.
  • Page 28 H. Watching TV 1.With power applied to the system, select the TV mode by pressing the DVD/TV/AUX button on the remote control. 2.Press AUTO MEMORY on the remote control to automatically search and store active channels The unit will start to play the first channel automatically.
  • Page 29 AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 90 days from the date of original pur- chase, such defect(s) will be repaired or replaced with reconditioned product (at the Company’s...
  • Page 30 128-6963 © 2004 Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, N.Y. 11788...
