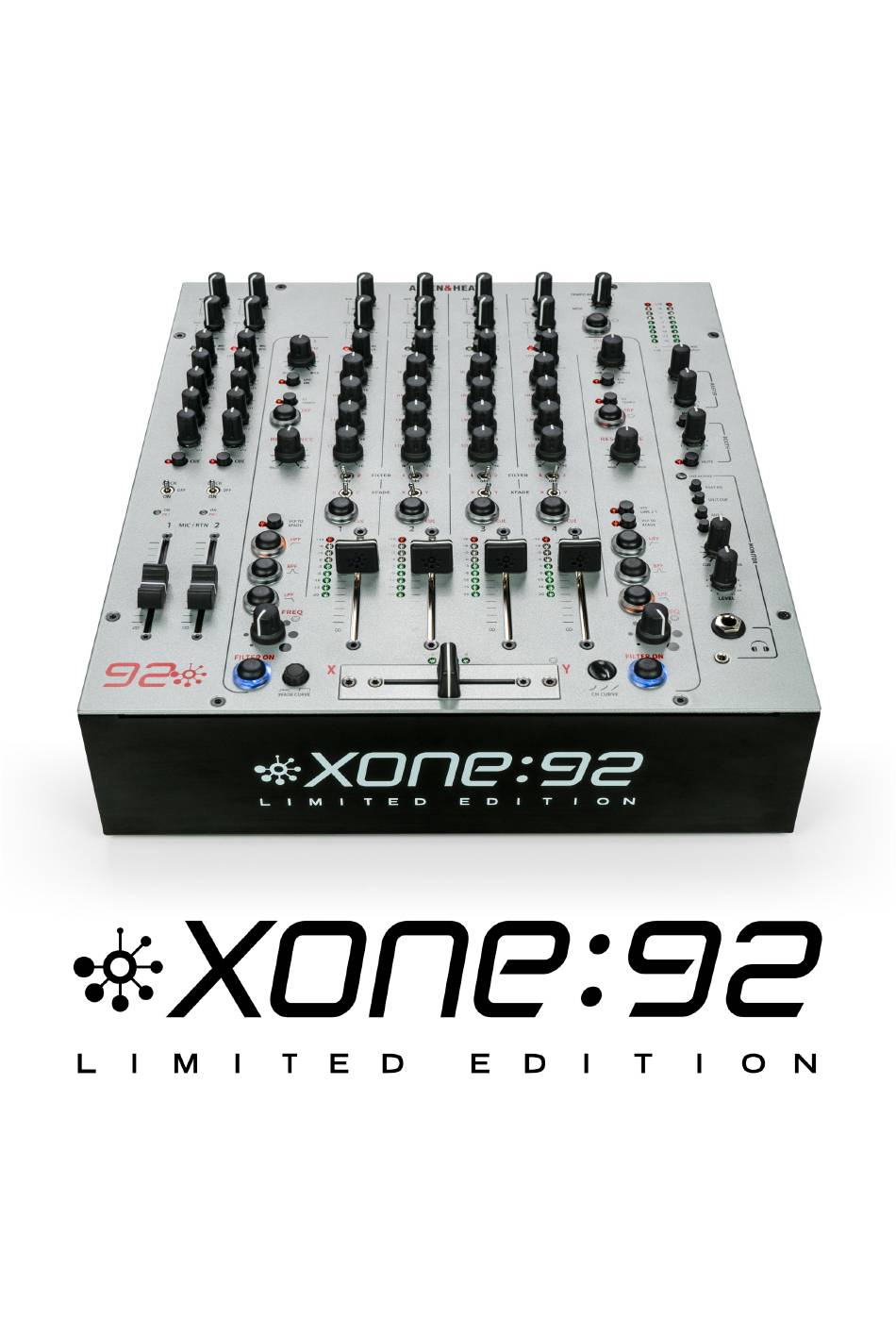

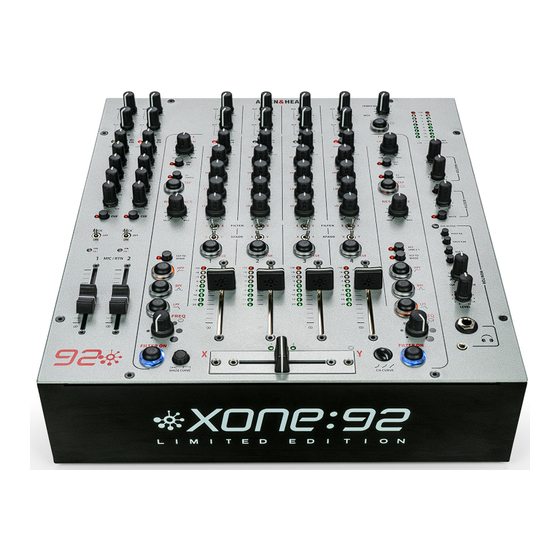

- Page 1 ALLEN&HEATH ® USER GUIDE ALLEN&HEATH XONE:92 Limited Edition User Guide...
-
Page 2: Warranty
DISCLAIMER: Allen & Heath shall not be liable for the loss of any saved/stored data in products that are either repaired or replaced. XONE:92 LIMITED EDITION complies with the European Electromagnetic Compatibility directives 2014/30/EU and the European Low Voltage directives 2014/35/EU. -
Page 3: Packed Items
Matching the serial number of your mixer Mains Lead Check the correct AC mains plug is included Rack Ears and fixing screws QR Card Follow the QR link to information about the mixer Safety and Regulatory Information ALLEN&HEATH XONE:92 Limited Edition User Guide... -
Page 4: Table Of Contents
Weights & Dimensions ......30 PHONO/LINE Input Channels ....13 Rack Ears............ 32 Crossfader and VCF ........16 Gain and Operating Levels ......33 The Xone:VCF Filters ......... 18 Installer Link Options ......... 34 LFO Modulation ......... 19 ALLEN&HEATH XONE:92 Limited Edition User Guide... -
Page 5: Connecting Mains Power
Use good quality cables and connectors and check for correct wiring and reliable solder joints. Allow sufficient cable loop to prevent damage through stretching. • If you are not sure ... Contact your service agent or local Allen & Heath dealer for advice. ALLEN&HEATH XONE:92 Limited Edition User Guide... -
Page 6: Cables And Connectors
Cables and connectors ALLEN&HEATH XONE:92 Limited Edition User Guide... -
Page 7: Panel Drawings
Panel Drawings ALLEN&HEATH XONE:92 Limited Edition User Guide... -
Page 8: Rear Panel Overview
MIC Clean Feed Switches The Xone:92 Limited Edition implements a ’clean feed’ bus for MIC inputs. By default, MIC 1 & 2 inputs do not route to the BOOTH or RECORD outputs, in order to avoid potential acoustic feedback in the booth and to enable music only mix recording. - Page 9 AC MAINS Input and Power Switch Connect (supplied) IEC cable with moulded plug compatible to the local AC mains supply. Turn the AC supply to the mixer ON/OFF. Please refer to the Connecting Mains Power section for more details. ALLEN&HEATH XONE:92 Limited Edition User Guide...
-
Page 10: Mic/Rtn Input Channels
This provides a 35 - 37dB range with continuous adjustment for line level signals from -15dBu to +20dBu, and -47dBu to - 10dBu for microphones. Use the Cue system to correctly set the level. Reduce LEVEL if the red PK! LED flashes. ALLEN&HEATH XONE:92 Limited Edition User Guide... - Page 11 Take time to experiment with these controls. The XONE:92 LIMITED EDITION equaliser provides separate tone control over four frequency bands. The frequencies in each band may be boosted or cut by up to 15dB. The centre flat position is detented for quick resetting.
- Page 12 A 60mm stereo fader adjusts the signal level from off to unity at the top of its travel. This allows smooth fade ins and a visual indication of its contribution to the mix. The fader does not affect the pre-fade Aux sends. ALLEN&HEATH XONE:92 Limited Edition User Guide...
-
Page 13: Phono/Line Input Channels
PHONO input, indicated by the green LED. This input provides standard RIAA equalisation for high quality magnetic cartridge turntables. When pressed, LINE is selected, indicated by the LED changing colour to red. Use this to select non-RIAA or alternative stereo music sources. ALLEN&HEATH XONE:92 Limited Edition User Guide... - Page 14 Reduce the LEVEL if the RED +10 LED flashes. MUSIC EQ The XONE:92 LIMITED EDITION Stereo Channels 1 to 4 feature Xone’s classic four band equaliser, providing infinite attenuation of high and low frequencies and -30dB attenuation of mid frequencies. This provides the DJ with effective equalisation to creatively alter and shape the sound during live performance rather than simply correct source problems.
- Page 15 Toggle this switch to route the channel signal through either of the two FILTER stages. Selecting the switch in the central ‘OFF’ position bypasses both the filters. The XONE:92 LIMITED EDITION implements redesigned, Xone:96 style, analogue soft-switching for enhanced performance, ensuring master mix outputs are unaffected by audible electronic artefacts when hot-switching channel assignments to the Filters.
-
Page 16: Crossfader And Vcf
It is also used as a creative performance tool to layer or interact between two sounds when cut or scratch mixing. The XONE:92 LIMITED EDITION uses four stereo high-quality trimmed voltage controlled amplifiers (VCAs) for channels 1 - 4. The robust 45mm crossfader produces a DC control voltage which determines the signal level of the VCAs. - Page 17 CH CURVE switch The XONE:92 LIMITED EDITION also allows the response of the channel faders to be altered to suit different mixing styles. The CH CURVE switch selects a global fader response for channels 1 - 4. The default switch position is centred, where the response provides the characteristic increase in signal level towards the top of the fader travel that Xone:92 is renowned for.
-
Page 18: The Xone:vcf Filters
The XONE:92 LIMITED EDITION refines the classic VCF design first introduced on the Xone:62, preserving the unmistakable sonic signature of the original enhanced Xone:92 filters, while taking its performance to a new level. -
Page 19: Lfo Modulation
Channel 2. This can be used to produce incredibly smooth mixes or to mix tracks that would otherwise clash when mixed conventionally. The XONE:92 LIMITED EDITION Voltage Controlled Filters are further enhanced by two independent LFOs. The LFOs can be applied to either filter for additional cyclic VCF modulation effects. - Page 20 A surprising effect considering that all frequencies are ‘passed’. However, the filter type interaction around the cut- off point creates an interesting effect that varies from subtle to dramatic depending on the RESONANCE setting. ☺ Take some time to experiment with the filters before ‘going live’ ALLEN&HEATH XONE:92 Limited Edition User Guide...
-
Page 21: Master Mix And Monitor System
Master Mix and Monitor System The XONE:92 LIMITED EDITION provides two stereo master mix outputs with independent level control on balanced XLR and jack connections to drive the house PA amplifier system or additional zone feeds. Full DJ monitoring facilities are available with independent headphones and booth monitors, together with stereo metering system. - Page 22 By default, the microphone signals are not routed to the booth monitor to avoid acoustic feedback..MUTE switch Press to mute the booth monitor output. The red LED lights when the monitor is muted. The headphones and main outputs are not affected. ALLEN&HEATH XONE:92 Limited Edition User Guide...
-
Page 23: The Worxlab Fine Art Print
A hand-signed and numbered Certificate of Authenticity from The Worxlab is also included with the print. Serial Number Vin-plate The rear panel of each Xone:92 Limited Edition features a specially designed “vin-plate”, etched and filled with a unique and sequential serial number. Dog-tag key fob Also included is a matching engraved “dog-tag”... -
Page 24: Midi Control Of External Devices
Once you have got the device to respond to the XONE:92 LIMITED EDITION master MIDI clock and stop/start button, use the following method: Set the Tempo control [1] to its centre (detented) position, with the Stop/Start button [2] OFF. -
Page 25: Midi Control Codes
Move the crossfader to output MIDI data 0 (farthest left) to 127 (farthest right): XFADER: Control Change CC92 MIDI OUT socket (chassis, rear panel). 5 pin DIN socket. Outputs all XONE:92 LIMITED EDITION MIDI data to an external MIDI compatible device. ALLEN&HEATH XONE:92 Limited Edition User Guide... -
Page 26: Midi Implementation Chart
Pitch Bend Control Change Internal jumper option Program Change System Exclusive System Common Song Position Song Select Tune Request System Real Time Clock Commands Aux Messages Local On/Off All Notes Off Active Sensing System Reset ALLEN&HEATH XONE:92 Limited Edition User Guide... -
Page 27: Block Diagram
Block Diagram ALLEN&HEATH XONE:92 Limited Edition User Guide... -
Page 28: Specifications
Internal switch mode power unit [SMPS] with auto sensing mains AC Mains 100 to 240V AC ¦ 50/60Hz Consumption 30W max Rear panel mounted ON/OFF switch Mains Adaptor 3 pin IEC socket with cable clamp. Molded AC plug [supplied] ALLEN&HEATH XONE:92 Limited Edition User Guide... - Page 29 100V to 240V AC @ 47/63Hz` Consumption 30W max Fuse rating 100-240V AC T500mA L [0dBu = 0.775 Volts rms / +4dBu = 1.23V rms / 0dBV = 1 Volt rms / -10dBV = 316mV rms] ALLEN&HEATH XONE:92 Limited Edition User Guide...
-
Page 30: Weights & Dimensions
Weights and Dimensions XONE:92 Limited Edition UN-PACKED PACKED Height 106mm 4.2” 190mm 7.5” Width 320mm 12.6” 450mm 17.7” Depth 376mm 14.8” 530mm 20.9” Weight 15.4lbs 9.2kg 20.3lbs Top Panel ALLEN&HEATH XONE:92 Limited Edition User Guide... - Page 31 Weights and Dimensions continued ... Rear Panel Front Panel Side View [Right Panel] ALLEN&HEATH XONE:92 Limited Edition User Guide...
-
Page 32: Rack Ears
Fix in place using M6 screws or bolts. Ensure air vents are not obstructed. ALLEN&HEATH XONE:92 Limited Edition User Guide... -
Page 33: Gain And Operating Levels
As the session wears on ear fatigue may set in, and the speaker cones may become hot so reducing the effectiveness of the system and listeners to gain any benefit from increased volume. ☺ BE SENSIBLE. BE SAFE WITH SOUND LEVELS. ALLEN&HEATH XONE:92 Limited Edition User Guide... -
Page 34: Installer Link Options
Refer all servicing to qualified service personnel The XONE:92 LIMITED EDITION has several internal option settings designed in. Some of these are primarily for setting up the mixer in a fixed installation situation, and the others can be used to reconfigure the MIDI system. - Page 35 +10dB. RIAA Disable To convert the RIAA phono pre-amplifier to a line level input locate and remove the two jumper sleeves JP2, JP4 (detail B) and the two jumper sleeves JP1, JP3 (detail C). ALLEN&HEATH XONE:92 Limited Edition User Guide...
- Page 36 DATA send control (CC94) by moving the VR4 jumper sleeve (detail B) from the T (Tempo) position to the D (Data) position. Note: MIDI clock will still be transmitted via the LFO 2 TAP tempo button when the jumper is in the D position. ALLEN&HEATH XONE:92 Limited Edition User Guide...
- Page 37 Page left intentionally blank. ALLEN&HEATH XONE:92 Limited Edition User Guide...
