Summary of Contents for ALLEN & HEATH XONE:23

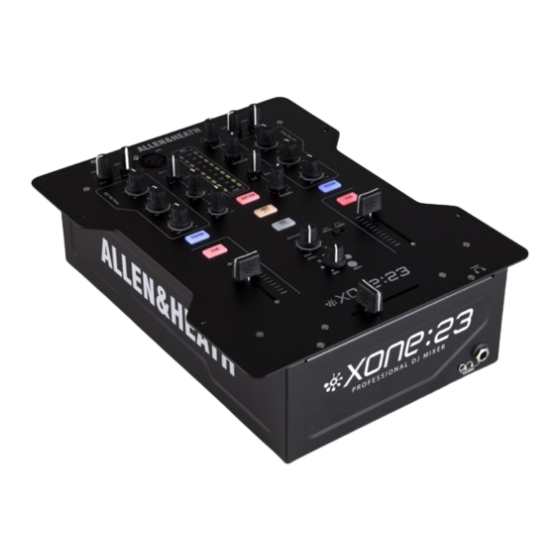

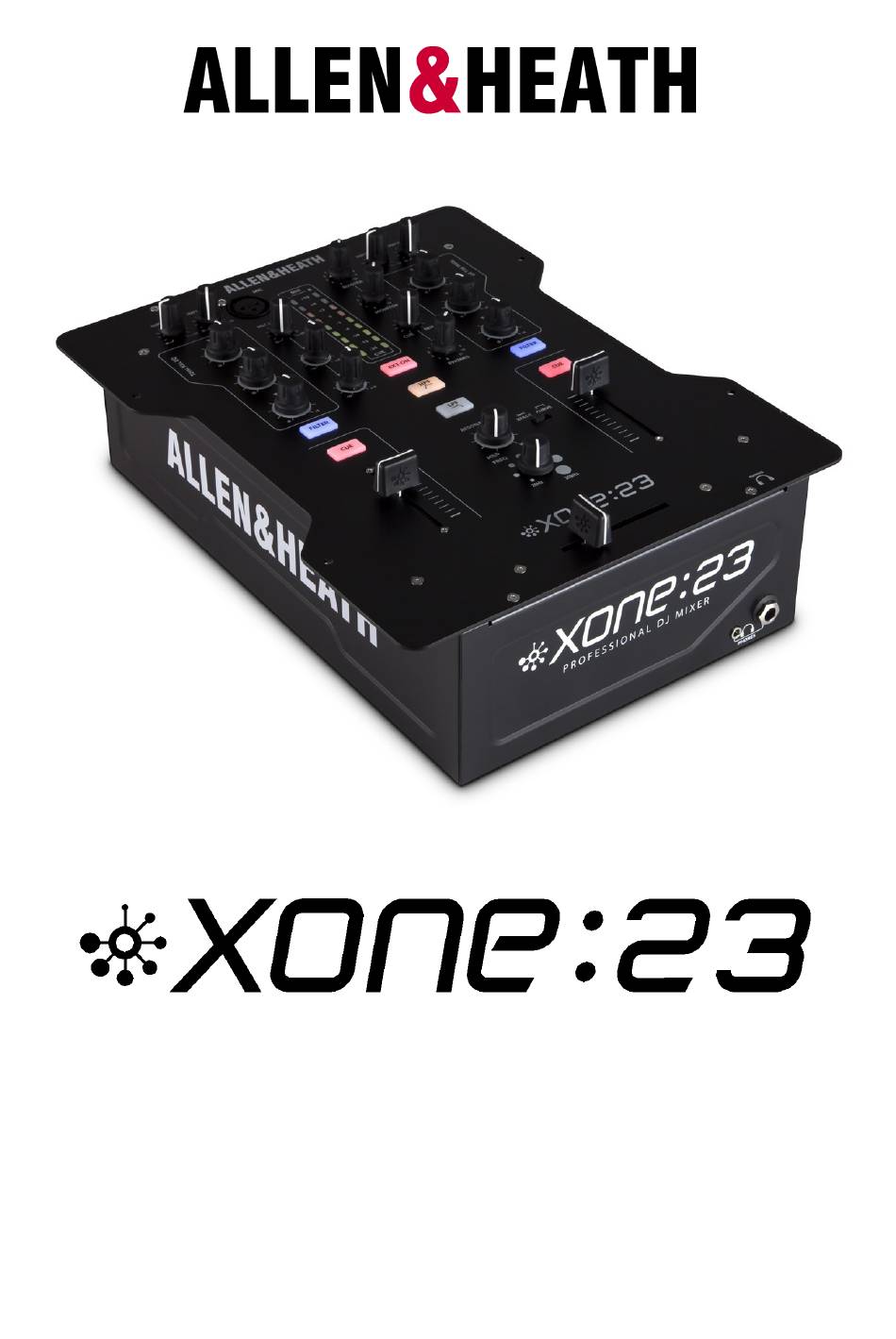

- Page 1 USER GUIDE Publication AP9250_4...
-
Page 2: Warranty
DISCLAIMER: Allen & Heath shall not be liable for the loss of any saved/stored data in products that are either repaired or replaced. XONE:23 complies with the European Electromagnetic Compatibility directives 2014/30/EU and the European Low Voltage directives 2014/35/EU. Any changes or modifications to the equipment not approved by Allen & Heath could void the compliance of the product and therefore the users authority to operate it. -
Page 3: Packed Items
PACKED ITEMS Check that you have received the following: Xone:23 mixer Power Supply 12V - 2.5 Amps Power supply IEC Lead This is country specific and will vary with mains voltage/territory Safety Sheet Important ! Read this sheet before starting. -
Page 4: Table Of Contents
CONTENTS Congratulations on purchasing the Allen & Heath Xone:23 performance DJ mixer. To ensure that you get the maximum benefit from the unit please spare a few minutes familiarizing yourself with the controls and setup procedures outlined in this user guide. For further information please refer to the additional information available on our web site, or contact our product support team. -
Page 5: Connection Diagram
APPLICATION DIAGRAM... -
Page 6: Introduction
With a studio standard 20dB of signal headroom, a separate booth monitor and balanced XLR main outputs, (with an impressive +28dBu max level) the Xone:23 is perfect for the DJ who requires a high quality compact mix tool. Key features of the Xone:23 are: 2+2 stereo channels with dual levels for phono/line inputs •... -
Page 7: Input Channel Controls
INPUT CHANNEL CONTROLS Input level controls Adjust so that the aver- age music level lights the 0 LED on the meter, with the beats lighting the +3 to +6 LED. Turn down if the +10 Red LED is illu- minated. Each input has its own separate level control, so make sure to f u l l y... -
Page 8: Master Section Controls
MASTER CONTROLS Master output Level Sets the signal level to the main XLR mix output Monitor output Level Sets the signal level for the local monitor (booth) output Cue/Mix Control Turn left (Cue) to hear the activated channel Cue. If no channel Cue is activated, the Mix output will be heard. -
Page 9: Mic And Filter Controls
MIC AND FILTER CONTROLS Microphone input Professional XLR balanced mic input. Use a low impedance dynamic hypercardioid Mic for best results. Microphone Level Adjusts the signal level of the mic input. If you are not using the mic, turn to minimum to prevent noise pick up. -
Page 10: Rear Panel Connections
Switches the unit On/Off MADE IN CHINA PSU connection Grounding post To prevent damage to your Connect the ground Xone:23 only use an A&H wire from turntables approved power supply (if fitted) to minimise Main outputs Connect these to a PA... -
Page 11: Filters Reference
FILTER REFERENCE The VCF Filters A voltage controlled filter is an audio filter where the cut-off frequency is altered by a DC 1kHz control voltage rather than a variable resistor. This produces a much wider operating range and more control over the filter response to create unlimited combinations of tonal effect. -
Page 12: Operating Levels
OPERATING LEVELS It is most important that the system level settings are correctly set. It is well known that many DJs push the level to maximum with meters peaking hard in the belief that they are getting the best from the system. THIS IS NOT THE CASE ! The best can only be achieved if the system levels are set within the normal operating range and not allowed to peak. -
Page 13: Earthing
Do not unbalance the Xone:23 XLR outputs by shorting pin 3 to ground as this may damage the circuitry; for unbalanced operation connect the hot signal to pin 2 and the ground to pin 1. -
Page 14: Servicing
SERVICING How to replace the crossfader If the crossfader is subject to a lot of use it will, in time wear out and need replacing. Intermittent or noisy operation is an indication that it is becoming worn. Using a propriety fader cleaner such as CaigLube might temporarily restore use, but DO NOT use on a new fader as it will wash away the factory applied grease. -
Page 15: User Replaceable Spare Parts
USER-REPLACEABLE PARTS REPLACEMENT PARTS AB9256 2.5x9 AB TORX (10 places) on AB9037 M3 x 85 CSK (12 places) front panel and rear chassis panel AJ7305 XONE KNOB (LGE) (8 places) AJ7304 XONE KNOB (SML) (11 places) AB8172 POT NUT BK (19 places - under knobs) AJ5320 XONE FADER KNOB (3 places - faders) -
Page 16: Fault Finding
FAULT FINDING No sound from mixer Check that the unit is powered on, and that an audio signal is connected to a channel input. Check that the Input level controls are turned clockwise at least to the centre position and that the music sources connected are in the correct inputs (Inputs 1 - 3 for turntables, Inputs 2 - 4 for CD players). -
Page 17: Specification
SPECIFICATIONS Connections Inputs Connection Impedance Nominal Level Maximum Level Phono 47K/330pF 7mV-100mV Line 20K ohm -10 to +20dBu FX RTN 10K ohm 0 to +20dBu <2K ohm -42 TO –12dBu Outputs Main Mix Balanced XLR 100 ohms +4dBu +28dBu Monitor 100 ohms -2dBu +22dBu... -
Page 18: Block Diagram
BLOCK DIAGRAM... -
Page 20: Product Registration
PRODUCT REGISTRATION Registering your product Please register your product with Allen&Heath online at: http://www.allen-heath.com/support/register-product/...
