If a Windows Security dialog window appears, click the "Install this driver software
8.
anyway" or "Continue Anyway" option to proceed.
Connect the video source to the video capture adapter either through S-Video
9.
(black) or composite video (yellow) using the appropriate cables. Stereo audio (red/
white) can also be connected to the adapter.

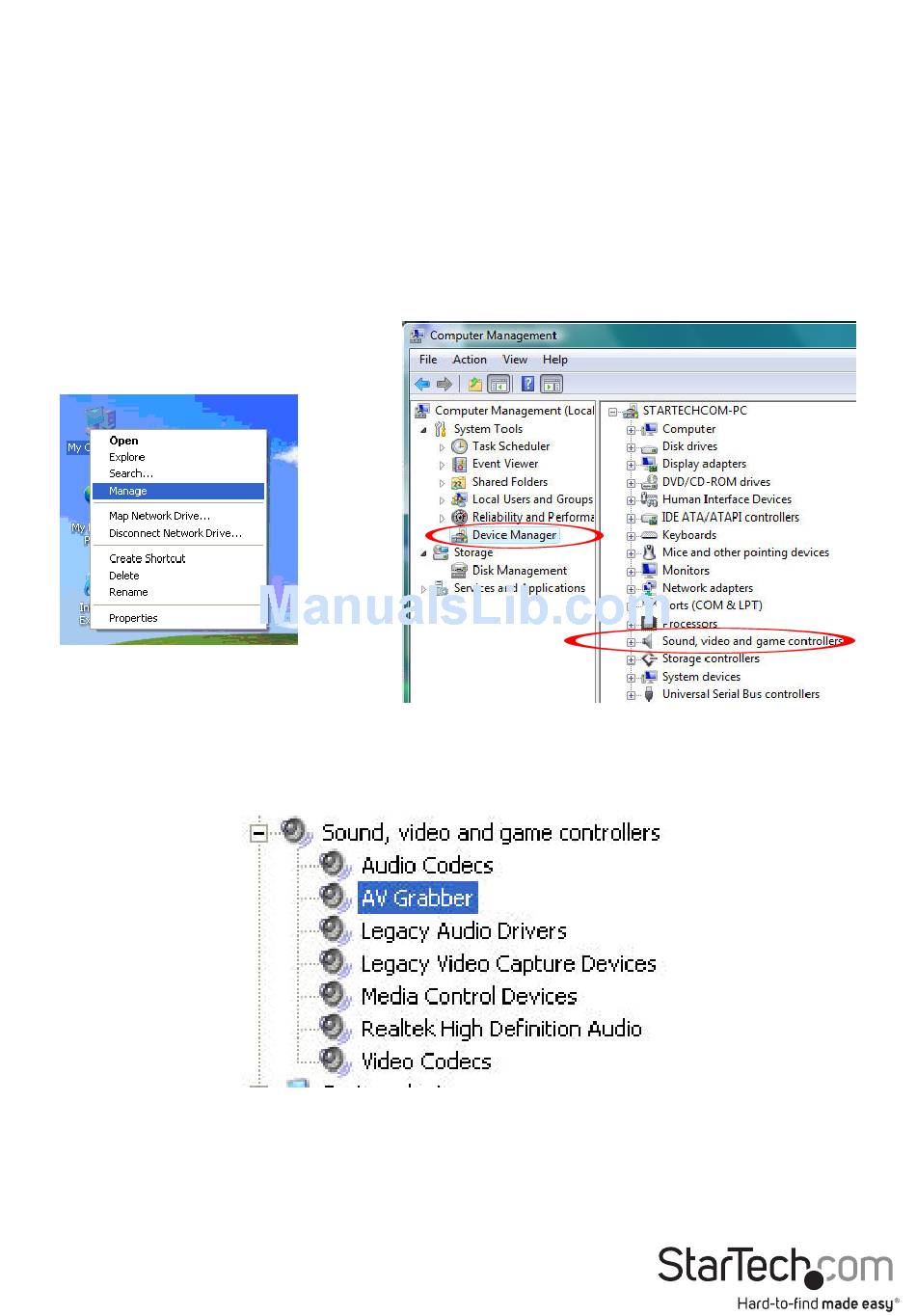

Verifying Installation
From the main desktop, right-click on "My Computer" ("Computer" in Vista/7), then
select Manage. In the new Computer Management window, select Device Manager
from the left window panel.
Click on the "+" (plus sign) in front of "Sound, video and game controllers", a "USB 2861"
or "AV Grabber" device and/or a USB audio device should be displayed under this
category depending on the operating system.
Instruction Manual
*actual device name may vary
3
