3.2.2

Back Panel

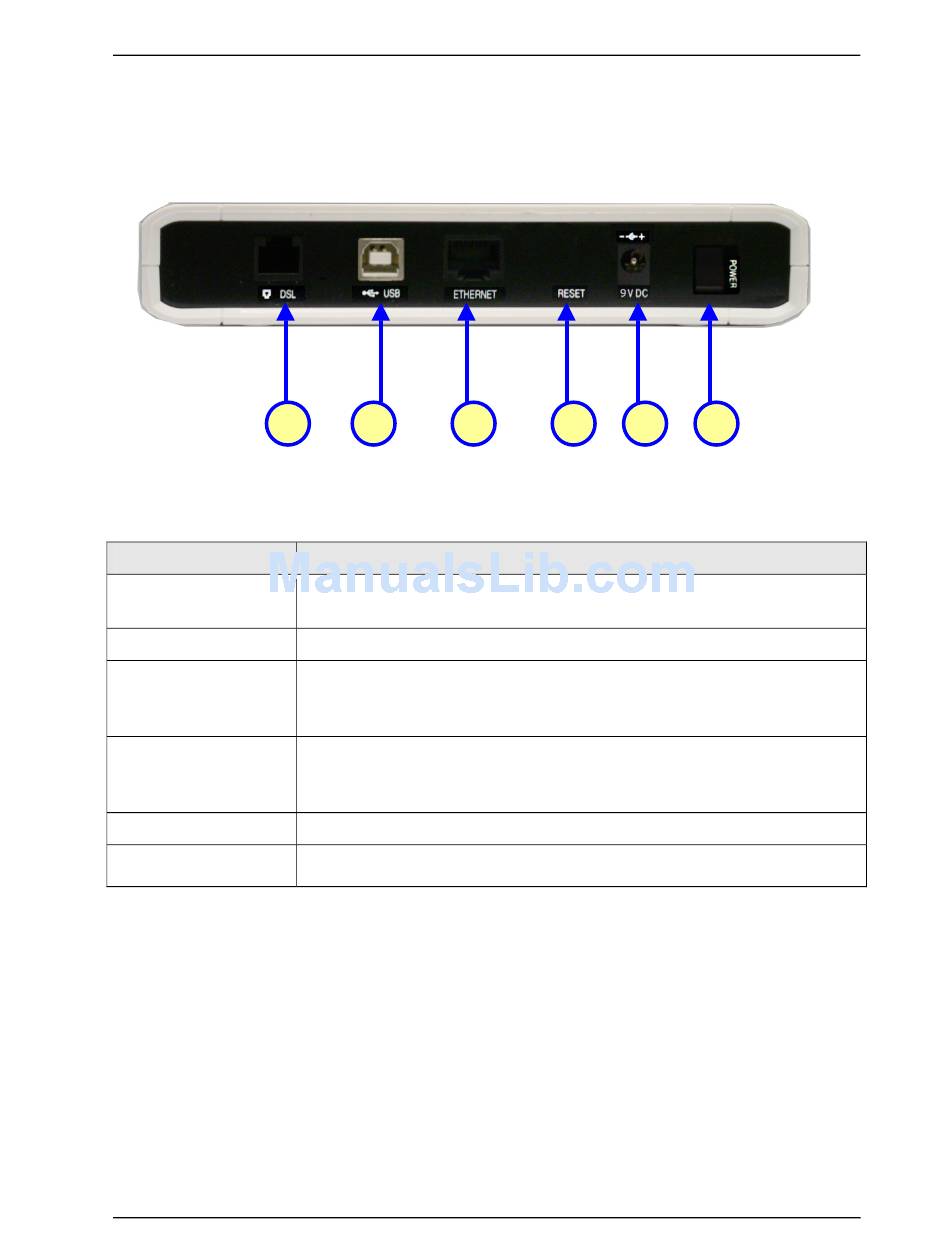

Fig 1-3 shows the back panel indicators of the ADSL Router
1

Figure 1-3 : Back Panel Indicators (For Ethernet USB Combo Router)

Label
1 DSL
2 USB
3 ETHERNET
4 RESET
5 DC 9V
6 On/Off Switch
2 3
Telephone jack (RJ-11) to connect to your Telephone Wall Socket
(ADSL line).
USB Port to connect to the USB port on your Computer/Notebook.
10/100 Base-T Auto-MDI/MDIX (allows either cross or straight
cable) Ethernet jack (RJ-45) to connect to your Ethernet Network
card or Ethernet Hub/Switch.
To reset the ADSL Router, simply press the reset button for about
10 seconds (all customised settings that you have saved will be
lost!).
To connect to the Power Adapter that comes with your package.
Switch to power up and shutdown the modem
ADSL2+ Ethernet USB Combo Router - User Guide
4 5
Description
6
Page 11 of 42
