RCF 310A MKIII Specifications

Applications
ART 310-A is the reference speaker in the 10" size. Incredible
amplifier power, high quality neodymium transducers, very compact
size cabinet. From live sound, playback and monitoring to corporate
events and presentations, ART 310-A is the ideal speaker in all the
situations where the output of a PA and the size of a studio monitor is
required. Superb deep bass punch, very linear and precise frequency
response.
Features
• 400 watt Monolithic bi-amplification, 300 watt low frequency
and 100 watt high frequency power
• 127 dB max SPL
• Wide dispersion, 90 x 70 low distortion, constant directivity horn
• 10" high power woofer
• 1" , high frequency driver
• Electronic equalization, phase alignment, limiter and protection
• Jack XLR input, XLR signal output
• 1 comfortable top handle for easy transportation and positioning
• Two M10 fly points and built in pole mount adaptor

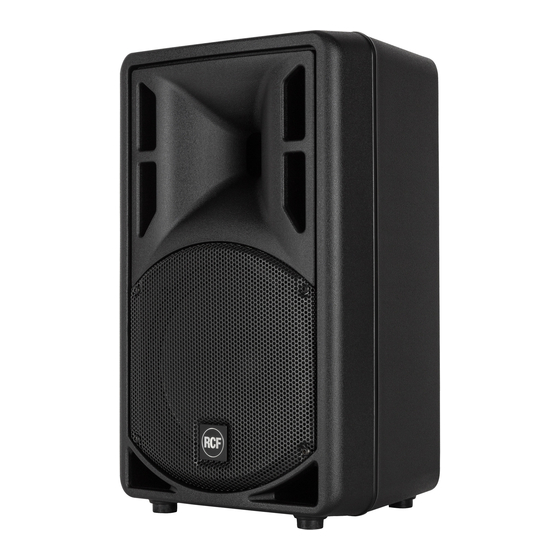

ACTIVE SPEAKER
ART 310A MKIII
RCF ART 310-A is an active, wide dispersion 2 way sound reinforcement speaker.
It integrates a digital high power 400 Watt amplifier, a multiway DSP section and premium RCF low
distortion, high power transducers. The result is compact, high power accurate systems, unique in
there class for clarity and low distortion.
The total amplifier power is 400 watt RMS: a 300 watt digital amplifier design is used to power the
low frequencies, the compression driver is powered from 100 watt of digital clear power.
The Dsp takes care of low noise crossover, equalisations, soft-limiters, rms limiters, large signals
compression and protection functions.
The input section presents a XLR input connector that is switchable from microphone to line levels. A
master volume control and a useful XLR loop through link guarantee the best versatility.
The new 10" woofer is the result of the latest refinement in year of RCF experience in compact 2 way
speakers. Features a 2 " voice coil, very high efficiency and controlled bass reproduction.
The compression driver uses a new 1.5" Mylar dome design and optimised geometry radial phase
plug. This innovative design is powered from a high flux ferrite magnet offering a very open and
natural midrange sound with extreme precision in high frequency reproduction.
All the system is housed in a strong , very lightweight, polypropylene composite enclosure . The
woofer is protected from a strong, powder coated, metal grille. The cabinet features 2 M10 threaded
fly points, a 35 mm stand adaptor plus an ergonomic top handle for easy transportation.
ACOUSTICAL SPECIFICATIONS
Frequency response:
Max SPL:
Coverage angle:
Directivity Factor; Q (DI):
Compression driver:
Woofer:
INPUT SECTION
Input signal (Impedance):
Input connector:
Output signal connector:
Input sensitivity:
PROCESSOR SECTION
Crossover frequencies:
Protections:
Limiter:
Controls:
AMPLIFIER
Nominal power:
High frequencies:
Low frequencies:
Cooling:
PhySICAL
Cabinet:
Dimensions (HxWxD):
Weight:
Hardware:
Handles:
Pole Mount / Cap:
Colour:
the rules of sound
50 - 20 Khz
127 dB
90° x 70°
10.5 (10)
1", 1.4" v.c.
10" 2.0" v.c.
bal/unbal
jack/xlr male
xlr female
-2 dBu / +4 dBu
1800 Hz
Thermal, RMS
Fast limiter
Volume, EQ Shape, Mic/Line
400 Watt
100 Watt
300 Watt
Convection
Composite PP
21.14" x 13.27" x 12.4" (537x337x315 mm)
27.77 lbs. (12,6 kg)
2 M10 flying points
1 top
yes
Black
