8000/10000 va ups tower/rack-mount 6u uninterruptible power supply 200-240 vac

Advertisement

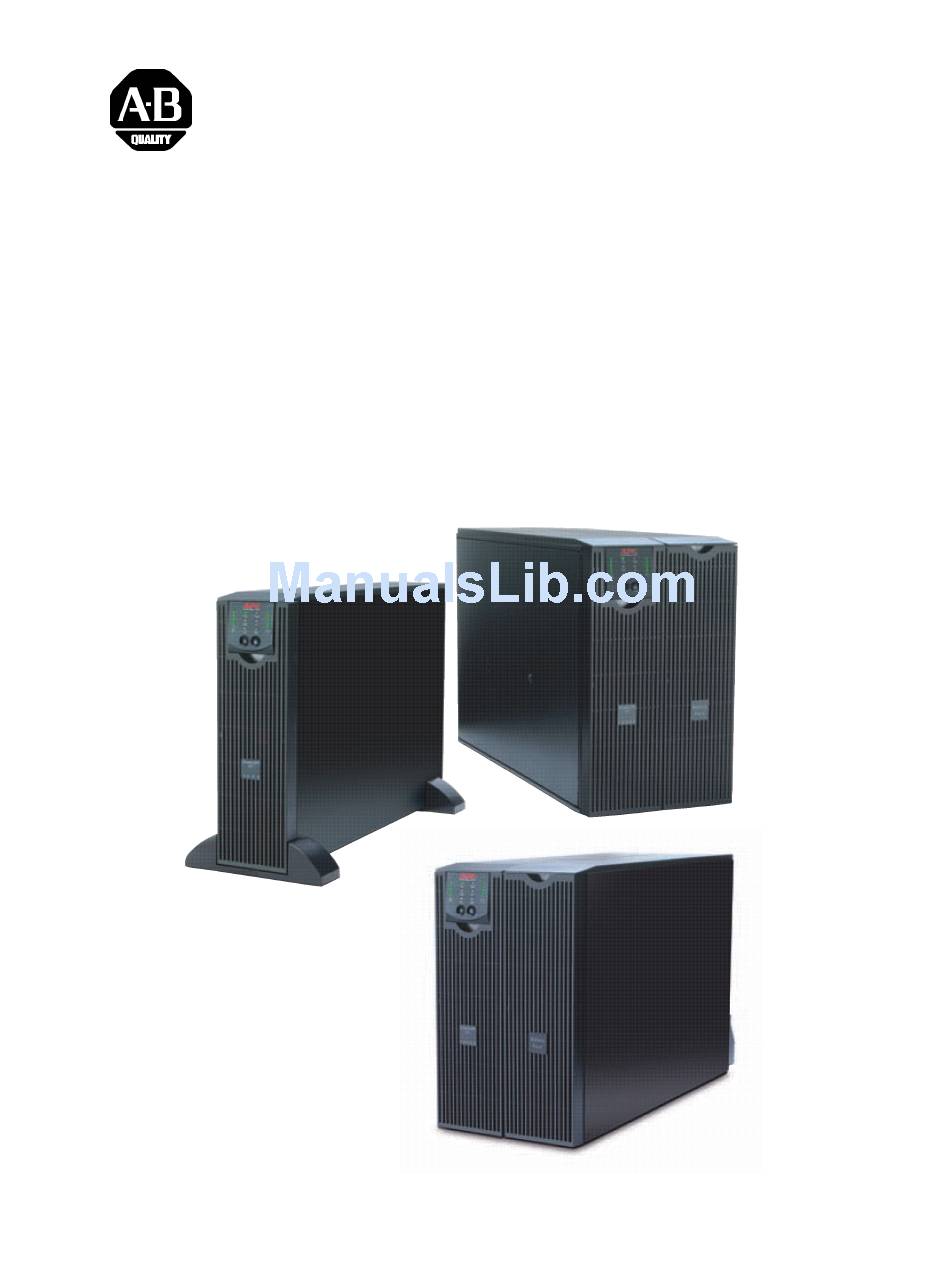

Allen-Bradley
User Manual for 8000/10000 VA UPS
1609-P8000E
8000 VA 200-240 VAC
1609-P10000E
10000 VA 200240 VAC
Tower/Rack-Mount 6U
Uninterruptible Power Supply
41063-261-01(1)
990-2672 09/2005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1609-P8000E and is the answer not in the manual?

Questions and answers

Summary of Contents for Allen-Bradley 1609-P8000E

  • Page 1 Allen-Bradley User Manual for 8000/10000 VA UPS 1609-P8000E 8000 VA 200-240 VAC 1609-P10000E 10000 VA 200240 VAC Tower/Rack-Mount 6U Uninterruptible Power Supply 41063-261-01(1) 990-2672 09/2005...
  • Page 2: Installation

    NSTALLATION Read the safety information sheet before installation. Unpacking Inspect the UPS upon receipt. Notify the carrier and dealer if there is damage. The packaging is recyclable; save it for reuse or dispose of it properly. Check the package contents: Two front bezels Literature kit containing: ®...
  • Page 3 Wiring Voltage Current External Input Wire Size (typical) Full Load Circuit Breaker (Nominal) (typical) 1609-P8000E Input & Output 208/2 30 V 40 A 50 A / 2-pole for # 8 AWG/ XLTW- 38 A Input Wiring Only 10mm Allen-Bradley Catalog Number...
  • Page 4 Installing and Connecting the Batteries and Attaching the Front Bezel Œ • Ž • • ‘...
  • Page 5 Connecting Power and Equipment to the UPS Hardwire the UPS (see Hardwiring). Connect equipment to the UPS. Turn on all connected equipment. To use the UPS as a master on/off switch, be sure that all connected equipment is switched ON. Press the button on the front panel to power up the UPS.
  • Page 6 ASIC ONNECTORS Power management software and interface cable can be used with the UPS. serial port Use only a supplied or approved interface cable. Any other serial interface cable will be incompatible with the UPS connector. The optional Emergency Power Off (EPO) feature allows connected loads to be immediately de-energized from a remote location, without switching to battery operation (see EPO Option).
  • Page 7: Operation

    PERATION RONT ISPLAY ANEL Indicator Description The UPS is drawing utility power and performing double conversion to supply Online power to connected equipment (see Troubleshooting). The UPS is supplying battery power to the connected equipment. On Battery The UPS is in bypass mode, sending utility power directly to connected equipment. Bypass Bypass mode operation is the result of an internal UPS fault, an overload condition or a user initiated command either through an accessory or the manual bypass...
  • Page 8: On Battery Operation

    This is not a normal condition. Cold Start Supply immediate battery power to the UPS and connected equipment (see Troubleshooting). Press and hold the button to power up the UPS and connected equipment. The UPS will emit two beeps. During the second beep, release the button.
  • Page 9 ONFIGURABLE TEMS ETTINGS ARE MADE THROUGH SUPPLIED OWER HUTE SOFTWARE OPTIONAL ETWORK ANAGEMENT CARDS ERMINA L ACTORY ELEC TABLE UNCTION ESCRIPTION EFAULT HOICES Automatic Self-Test Every 14 days Every 7 days Set the interval at which the (336 hours) (168 hours), UPS will execute a self-test.
  • Page 10 ETTINGS ARE MADE THROUGH SUPPLIED OWER HUTE SOFTWARE OPTIONAL ETWORK ANAGEMENT CARDS ERMINA L ACTORY ELEC TABLE UNCTION ESCRIPTION EFAULT HOICES Low Bypass Point -30% of output -15%, -20%, -25%, -30% Minimum voltage that the UPS voltage setting will pass to connected equipment during internal bypass operation.
  • Page 11 The output power can be disabled in an emergency by closing a switch connected to the EPO. Adhere to national and local electrical codes when wiring. Rockwell Automation recommends Allen-Bradley Catalog Number 800F Emergency Stop Operator as the interface to the EPO to connector.
  • Page 12 Terminal Mode to Configure UPS Parameters Terminal Mode is a menu driven interface that enables enhanced configuration of the UPS. Connect the serial cable to the serial port on the back of the UPS. ® When using PowerChute Network Shutdown software: Open a terminal program.
  • Page 13: Maintenance , And Transporting

    AINTENANCE RANSPORTING Replacing the Battery Module(s) This UPS has easy to replace, hot-swappable battery modules. Replacement is a safe procedure, isolated from electrical hazards. You may leave the UPS and connected equipment on during the procedure. The battery replacement procedure must include replacing all battery modules in the UPS and connected external battery pack (s).
  • Page 14: Troubleshooting

    ROUBLESHOOTING ROBLEM AND OSSIBLE OLUTION AUSE WILL NOT TURN ON Batteries are not connected Check that the battery connectors are fully engaged. properly. button not pushed. Press the button once to power the UPS and the connected equipment. UPS not connected to utility Check that the power cable from the UPS to the utility power supply is securely power supply.
  • Page 15 ROBLEM AND OSSIBLE OLUTION AUSE BYPASS ILLUMINATES The bypass switch has been If bypass is the chosen mode of operation, ignore the illuminated LED. turned on manually or through If bypass is not the chosen mode of operation move the bypass switch on the an accessory.
  • Page 16: Contact Information

    Service If the UPS requires service do not return it to the dealer. Follow these steps: Review the problems discussed in the Troubleshooting section of this manual to eliminate common problems. If the problem persists, contact Rockwell Automation Customer Support. Refer to Contact Information below.
  • Page 17: Safety Information

    Safety Information - SAVE THIS GUIDE This Safety Guide contains important instructions that should be followed during installation and maintenance of the equipment and batteries. It is intended for customers who setup, install, relocate, or maintain equipment. Changes and modifications to this unit not expressly approved could void the warranty. Handling Safety <18 kg (<40 lb) 32–55 kg (70–120 lb)
