Fabric Status LEDs
I/O Modules
1-Port 10GBASE-X

(XENPAK) Module

The Fabric status LEDs show the status of the Fabric module, as described in
Table 11.
Table 11 Fabric Status LEDs
LED
SFS ( not available)
RUN
ALM
ACT
The Switch 8800 provides slots for five to twelve I/O modules, in addition to the
Fabric slots. The following I/O modules are supported:
1-Port 10GBASE-X (XENPAK) Module
■
2-Port 10GBASE-X (XFP) Module
■
12-Port 1000BASE-X (SFP) Module
■
24-Port 1000BASE-X (SFP) Module
■
24-Port 10/100/1000BASE-T (RJ45) Module
■
Consider the following when selecting I/O modules:
You can configure several I/O modules of the same type
■
All I/O module slots are the same and any combination of I/O modules can be
■
inserted
You must select I/O module port cables that are compatible with each installed
■
I/O module
The 1-port 10GBASE-X (XENPAK) module provides a single 10 Gbps XENPAK port.

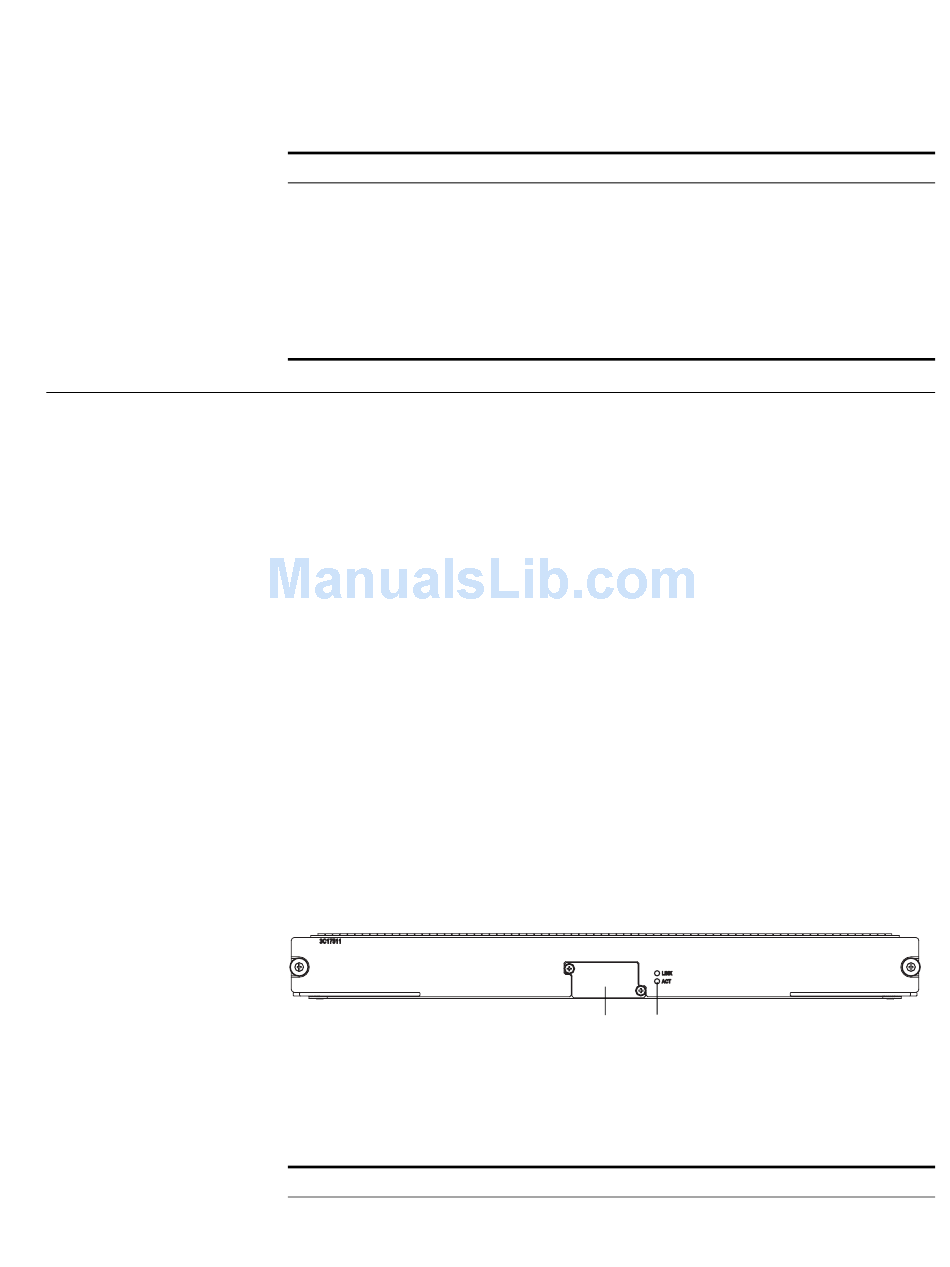

Figure 2 illustrates the front panel of the 1-port 10GBASE-X (XENPAK) module.
Figure 2 Front Panel of the 1-Port 10GBASE-X (XENPAK) Module
1 XENPAK port
2 XENPAK port LEDs
Table 12 describes the 1-port 10GBASE-X (XENPAK) module LEDs.
Table 12 1-Port 10GBASE-X (XENPAK) Module LEDs
LED
LINK
Status description
ON — The switching Fabric unit is active.
OFF— The switching Fabric unit is standby.
Green or off — The Fabric failed or has not been inserted.
Green blinking — The Fabric is working normally.
Red — The Fabric has alarms.
OFF — The Fabric has no alarms.
Green — The Fabric is in active mode.
OFF — The Fabric is in standby mode.
1 2
Description
Off — The port is not operating
On — The port is operating
I/O Modules 9
