3Com 3C17500 Installation Manual page 31

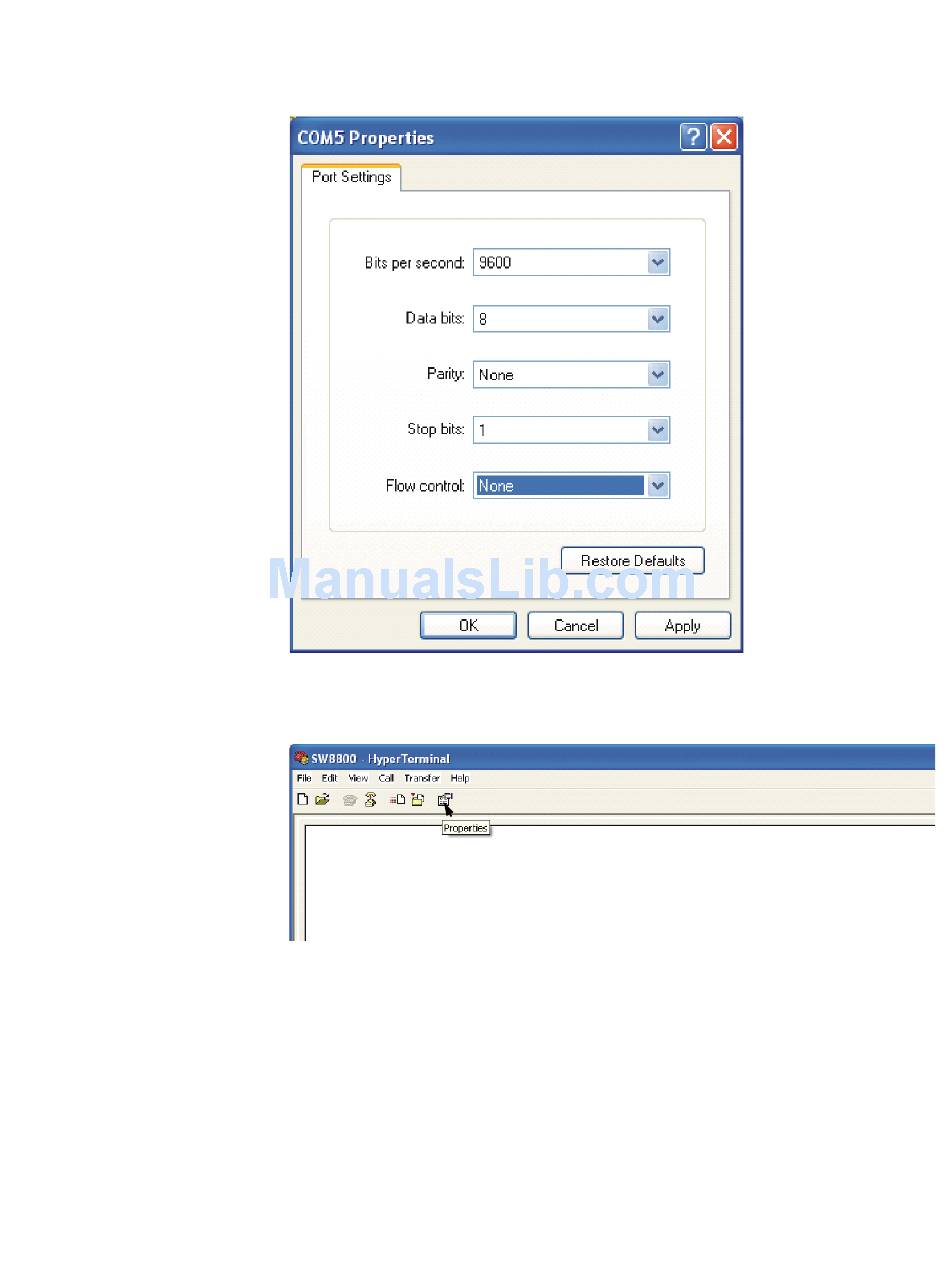

Figure 13 COM1 Properties Dialog Box
4 Click OK. The HyperTerminal dialogue box displays, as shown in Figure 14.
Figure 14 HyperTerminal Window
5 Select Properties.
6 In the Properties dialog box, select the Settings tab, shown in Figure 15.
7 Select VT100 in the Emulation dropdown menu.
8 Click OK.
Setting Terminal Parameters 31
