Power Supply

8800 C
OMPONENTS
The Switch 8800 power supplies are installed at the bottom of the chassis, in the
front. Only one AC power supply is required for each Switch 8800 chassis,
although 2 power supply slots are provided to implement 1+1 redundancy.
The 7-slot chassis uses a 1200 W auto-ranging power supply (3C17506).
The 10- and 14-slot chassis use a 2000 W auto-ranging power supply (3C17507).
When this power supply is used at 110 V, it delivers 1200 W of power, when used
at 220 V, it delivers 2000 W of power.
Do not combine 1200 W and 2000 W power supplies in the same chassis. If you
have two power supplies in your Switch 8800 chassis, they must be of the same
type.

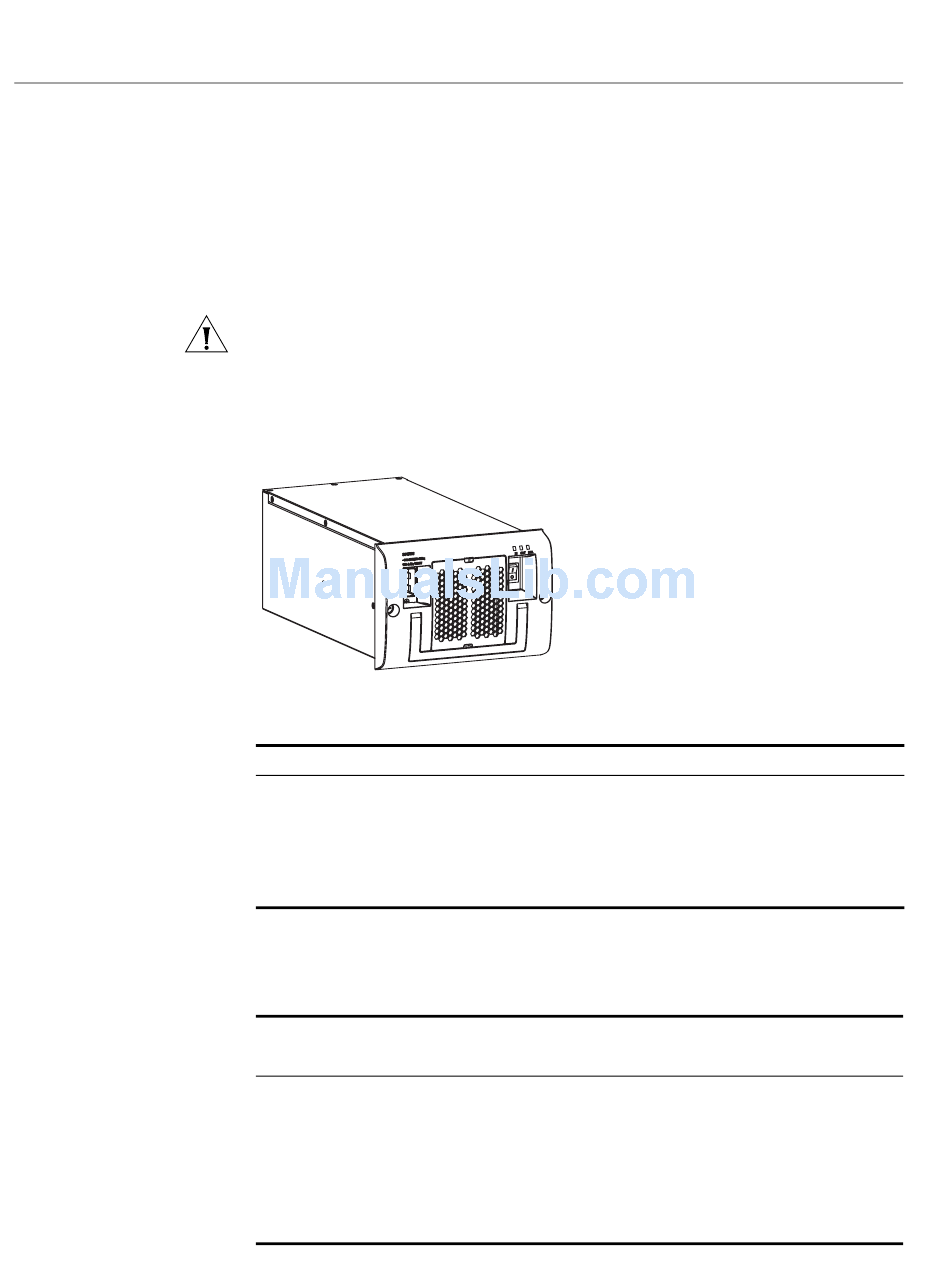

Figure 7 illustrates the 1200 W power supply for the Switch 8800.
Figure 7 Switch 8800 Power Supply
Table 22 describes the power supply LEDs.
Table 22 Power Supply LED Status
LED
INPUT
OUTPUT
FAIL
Table 23 describes the specifications of the power supply for the Switch 8800
chassis.
Table 23 Specifications for the Switch 8800 Power Supply
Description
Input
Maximum tolerance
Maximum input
current
Maximum output
Lightning protection
Description
ON — The power switch in the ON position and power input is normal.
OFF — No power is being supplied.
ON — Power output is normal.
OFF — Power output is not normal.
ON — The power supply is not operating normally.
OFF — The power supply is operating normally.
7-slot Chassis
100 to 240 V, 50 to 60 Hz
90 to 264 VAC, 47 to 63 Hz
1200 W
Lightning protection must be provided for all chassis.
Specification
10-slot Chassis 14-slot Chassis
14 A
1200 W (90 to 160 V)
2000 W (160 to 264 V)
