3Com 3C17500 Installation Manual page 30

30 C 3: C
HAPTER ONFIGURING THE
S 8800
WITCH

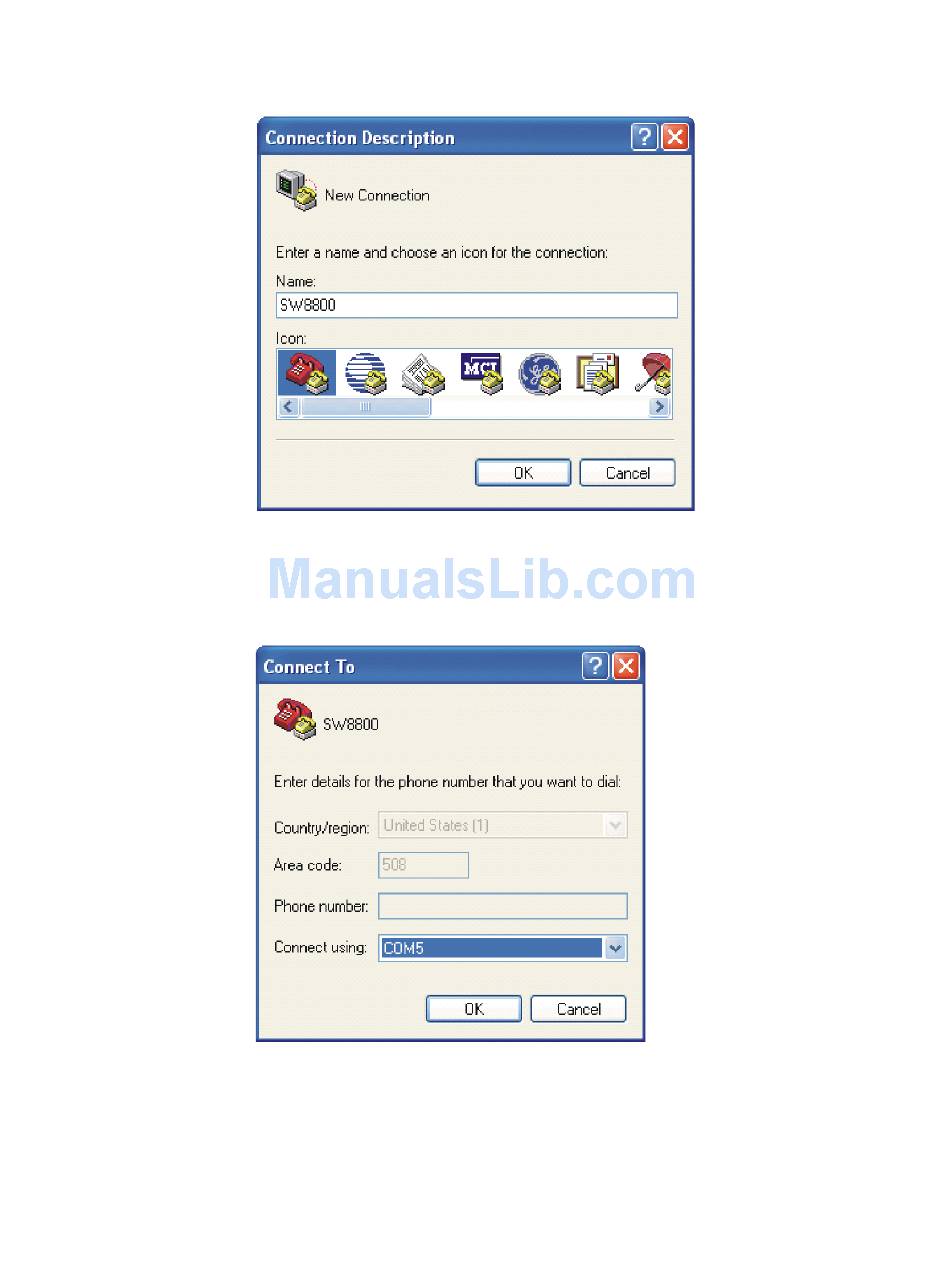

Figure 11 Connection Description Dialog Box
2 Enter the name of the new connection in the Name field and click OK. The dialog
box, shown in Figure 12 displays. Select the serial port to be used from the
Connect using dropdown menu.
Figure 12 Properties Dialog Box
3 After selecting a serial port, click OK. The port shown in Figure 13 displays and you
can set serial port parameters. Set the following parameters:
Baud rate = 9600
■
Databit = 8
■
Parity check = none
■
Stopbit = 1
■
Flow control = none
■
