SoundPlus
™
Infrared Listening System
Installation Guide & User Manual
Model WIR TX90, Two Channel System

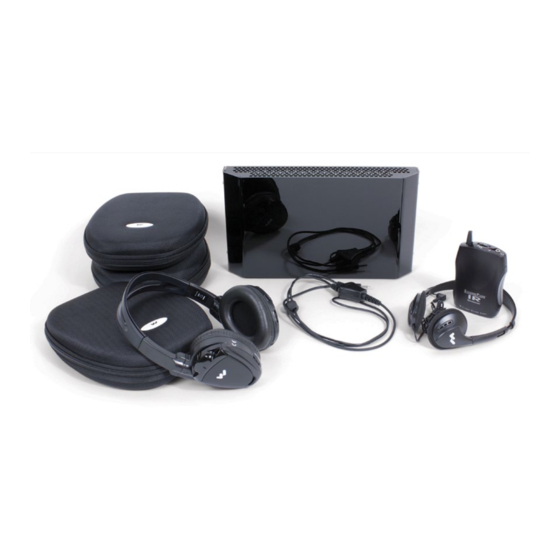

Model WIR SYS 90 ADV, Two Channel System
Model WIR SYS 91V, Two Channel System
Optional Receiver Models WIR RX22-4, WIR RX15-2, WIR RX18
Optional Charger Models CHG 518, CHG 3512
WIR SYS 90ADV
WIR SYS 91V
MAN 119H
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Williams Sound WIR SYS ADV
Summary of Contents for Williams Sound WIR SYS ADV
- Page 1 SoundPlus ™ Infrared Listening System Installation Guide & User Manual Model WIR TX90, Two Channel System Model WIR SYS 90 ADV, Two Channel System Model WIR SYS 91V, Two Channel System Optional Receiver Models WIR RX22-4, WIR RX15-2, WIR RX18 Optional Charger Models CHG 518, CHG 3512 WIR SYS 90ADV WIR SYS 91V...
-
Page 2: Table Of Contents
SoundPlus™ Infrared Listening System SoundPlus™ Infrared Listening System, Model WIR TX90, Two-Channel Listening System Model WIR SYS 91V, Two-Channel Listening System Model WIR SYS ADV, Two-Channel Listening System Installation Guide & User Manual Contents System Overview ................................3 Determine Coverage Area ............................4 Connect Power .................................6... -
Page 3: System Overview
SoundPlus Infrared Listening System ™ System Overview The WIR TX90 two channel infrared transmitter combines infrared modulator and emitter technology into a single mountable enclosure - reducing operating cost and eliminating precious rack space. The WIR TX90 features an easy to use configuration preset for Music, Voice, or Hearing Assistance Applications. It operates on dual 2.3/2.8 or 3.3/3.8 MHz selectable frequencies - ideal for high quality audio programs such as music, theater and audio description. -
Page 4: Determine Coverage Area
SoundPlus™ Infrared Listening System Determine Coverage Area Determine the coverage area needed for the seating area. When using the WIR TX90 transmitter with the RX22-4 receiver, in single channel mode, the WIR TX90 can achieve a coverage area of 28,000 ft2 (2,600 m2). In four channel mode, the WIR TX90 divides its power among the four signals to achieve a coverage area of 11,000 ft2 (1,022 m2). - Page 5 SoundPlus Infrared Listening System ™ Figure 3: 3 Dimension Foot Pattern Figure 4: NOTE: When pointing the emitter, be sure to keep the long dimension horizontal. CORRECT A237 Figure 5: Overlapping Illumination patterns to cover Larger Listening Areas INCORRECT A230 WIR TX90 WIR TX9 WIR TX9...
-
Page 6: Connect Power
SoundPlus™ Infrared Listening System Figure 7: WIR TX90 Rear View POWER CONNECTION WALL/CEILING BASEBAND OUT PLUG IN POWER SUPPLY MOUNTING BRACKET (BKT 024) BNC CONNECTOR, 50 Ω 120 VAC (US): TFP 010 SET OF THREADED HOLES FOR USE 50 KHZ-8 MHZ BASEBAND A229 230 VAC (CE): TFP 027 WITH MOUNTING BRACKET... -
Page 7: Connect Audio Source
SoundPlus Infrared Listening System ™ Connect Audio Source Determine the length of the audio cable needed to connect to the sound system to the WIR TX90 transmitter. Install the supplied Phoenix connector on the end of the audio cable to be connected to the transmitter. See the back of the WIR TX90 for wiring instructions. -
Page 8: Select The Audio Processing Application Preset
SoundPlus™ Infrared Listening System Select the Audio Processing Application Preset The WIR TX90 offers three preset audio processing options for the most common applications: Music, Voice, and Hearing Assist. Use the “Music” setting when maximum dynamic range and audio quality are preferred. Use the “Voice” setting for simultaneous interpretation, audio description, or other applications with users that have primarily normal hearing. -
Page 9: Using The Optional Wir Tx9 Slave Emitter For Additional Coverage
200 ft. (70m) maximum length (18 ga.) Baseband Signal Wiring: Baseband Signal Wiring: Use 50 Ohm Coaxial Cable (RG58) Use RG58 Coax,1000 ft. (350m) max. length Williams Sound, Minneapolis, Minnesota, USA Made in U.S.A. Patent Pending Baseband (Modulation) 24 VAC... -
Page 10: Receiver Safety Information
Before using Williams Sound receivers with a pacemaker or other medical device, consult your physician or the manufacturer of your pacemaker or other medical device. If you have a pacemaker or other medical device, make sure that you are using the Williams Sound receiver in accordance with safety guidelines established by your physician or the pacemaker manufacturer. -
Page 11: Optional Infrared Receivers
SoundPlus Infrared Listening System ™ Optional Infrared Receivers Figure 12: Four Channel Receiver, Model WIR RX22-4 Channel Frequency 2.3 MHz 2.8 MHz 3.3 MHz CHANNEL SELECTOR EARPHONE 3.8 MHz JACK ON/OFF "ON" VOLUME SWITCH INDICATOR A162 Figure 13: WIR RX15-2 Headset Receiver LEFT INFRARED RIGHT... -
Page 12: Optional Chargers
SoundPlus™ Infrared Listening System Optional Chargers Figure 15: Multiple Battery Charger, Model CHG 518 WIR RX18 RECEIVER CHG 518 FRONT-TOP VIEW CHG 518 REAR VIEW TFP 043 AC POWER CONNECTION CHARGING INDICATORS CHG 518 Back A223 Figure 16: Multiple Battery Charger, Model CHG 3512 RECEIVER OR CHG 3512 REAR VIEW... -
Page 13: Trouble Shooting
Buzzing or humming noise in sound system. • Check for ground loops or noise on the input signal. Call your Authorized Williams Sound dealer or representative. NOTE: Make sure the power line voltage does not fall below 90V, or system performance will be greatly reduced! -
Page 14: Limited Warranty
Williams Sound products are engineered, designed, and manufactured under carefully controlled conditions to provide you with many years of reliable service. Williams Sound warrants the Sound Plus™ Infrared Listening System against defects in materials and workmanship for FIVE (5) years. During the first five years from the purchase date, we will promptly repair or replace the Sound Plus™... -
Page 15: Soundplus ™ Infrared Listening System Specifications
SoundPlus Infrared Listening System ™ SoundPlus Infrared Listening System Specifications ™ Infrared Transmitter, Model WIR TX90 Dimensions, Weight: 11.25” W x 6.25” H x 2.125” D (28.6 cm x 15.9 cm x 5.4 cm), 1.8 lbs (0.8 kg) Color: Black with white legends, black acrylic lens (available in white) Power Supply: Wall Transformer, 24 VAC, 50-60 Hz, 35 VA, 3-pin MOLEX Connector North America: TFP 010, UL/CSA Europe: TFP 027-01, 2-pin Schuko plug, CE... - Page 16 SoundPlus Infrared Listening System ™ 10300 Valley View Rd • Eden Prairie, MN 55344 800-328-6190 / 952-943-2252 • FAX: 952-943-2174 www.williamssound.com ©2012 Williams Sound • All Rights Reserved MAN 119H...
