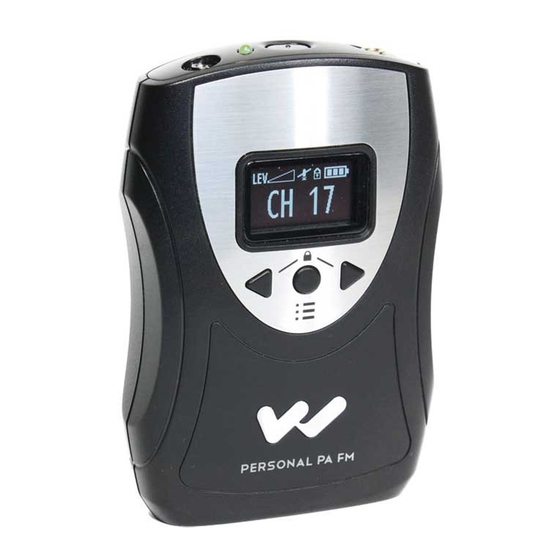

Transmitter Model T36, 72-76 MHz
Instructions For Use and Care
Thank you for purchasing the T36 transmitter from Williams Sound. The T36 is
designed to operate with a wideband FM, 72–76 MHz receiver. For more infor-
mation on available receivers, visit www.williamssound.com or contact Williams
Sound at 800-843-3544 or 952-943-2252
P
S
ACEMAKER
AFETY
CAUTION!
1. Before using this product with a
pacemaker or other medical device,
consult your physician or the man-
ufacturer of your pacemaker or
other medical device.
2. If you have a pacemaker or other
medical device, make sure that you
are using this product in accordance
with safety guidelines established by
your physician or the pacemaker
manufacturer.
B
S
ATTERY
AFETY
CAUTION!
Do not attempt to recharge disposable
batteries, which may explode, release
dangerous chemicals, cause burns, or
other serious harm to the user or
product.
MAN 142A
©2008 Williams Sound Corp.
& D
ISPOSAL
R
I
ECYCLING
NSTRUCTIONS
Help Williams Sound protect the
environment! Please take the
time to dispose of your equipment
properly.
Product Recycling:
Please do NOT dispose of your
Williams Sound equipment in the
household trash. Please take the
equipment to an electronics recy-
cling center; OR, return the product
to the factory for proper disposal.
Battery Recycling:
Please do NOT dispose of used
batteries in the household trash.
Please take the batteries to a retail
or community collection point for
recycling.
07/29/08
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T36 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Williams Sound T36

  • Page 1 Transmitter Model T36, 72-76 MHz Instructions For Use and Care Thank you for purchasing the T36 transmitter from Williams Sound. The T36 is designed to operate with a wideband FM, 72–76 MHz receiver. For more infor- mation on available receivers, visit www.williamssound.com or contact Williams...
  • Page 2 FIG. B: T36 User Controls PERATING NSTRUCTIONS IMPORTANT: If Alkaline (non- rechargeable) batteries are being Auxiliary Power On/Off/Mute Channel installed, slide the battery selection Input Selector switch in the battery compartment to the “Alkaline” position. See FIG. A below. If installing NiMH (or recharge- able) batteries, slide the battery selec- tion switch to the “NiMH”...
  • Page 3 3. Compression Selector 75.8 75.9 2. Auxiliary Input Level 4. Channel Lock NOTE: Up to eight T36’s can operate ONTROL simultaneously on channels 1-8 (FIG. C) The gain control can be used to adjust when used with an R35-8 receiver.
  • Page 4: Battery Information

    OMPRESSION ELECTOR ATTERY NFORMATION By default, the T36 compression is set to The T36 transmitter can use two (2) “Off” for normal operation, or “1:1” com- alkaline AA batteries (BAT 001) or pression. For hearing assistance applica- two (2) AA rechargeable batteries tions, the compression selector can be set (BAT 026).
  • Page 5: Belt Clip Installation

    AUTHORITY TO OPERATE THE EQUIPMENT. To Install: Position the belt clip on the rear of the T36 transmitter as WILLIAMS SOUND HAS NO CON- shown in FIG. E. Turn the belt clip TROL OVER THE CONDITIONS 180˚ left or right as shown in FIG. F.
  • Page 6 AUTHORITY TO BIND WILLIAMS 10321 West 70th Street SOUND TO ANY REPRESENTATION Eden Prairie, MN 55344 OR WARRANTY WITH RESPECT TO THE T36 TRANSMITTER. UNAUTHORIZED REPAIRS OR MODIFICATIONS WILL VOID THE WARRANTY. The exclusions and limitations set out above are not intended to, and should...
  • Page 7: System Specifications

    YSTEM PECIFICATIONS FM TRANSMITTER, MODEL T36 Dimensions: 4.1” L x 2.8” W x 1.1” H (104 mm x 71 mm x 28 mm) Weight: 2.6 oz (74 g), no batteries Housing Material: Shatter-resistant PC/ABS plastic Battery Type: Two (2) AA 1.5 V non-rechargeable Alkaline batteries (BAT 001), 70 mA nominal current drain, 30 hours approx.
  • Page 8 ® MAN 142A ©2008 Williams Sound Corp. 10321 West 70th St., Eden Prairie, MN 55344 U.S.A. 800.843.3544 | 952.943.2252 | FAX: 952.943.2174 www.williamssound.com...
