Williams Sound Whisper T863 Instructions For Use & Care

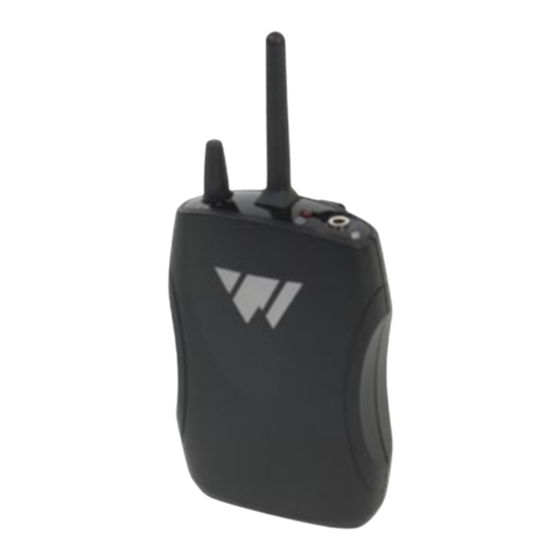

Whisper ™ T863 Transmitter
Instructions For Use & Care
P S R
ACEMAKER AFETY ECYCLING
C A U T I O N !
1. Before using this product with a pace-
maker or other medical device, consult
Help Williams Sound protect the envi-
your physician or the manufacturer of
ronment! Please take the time to dis-
your pacemaker or other medical
pose of your equipment properly.
device.
Product Recycling:
2. If you have a pacemaker or other med-
Please do NOT dispose of your Wi l l i a m s
ical device, make sure that you are using
Sound equipment in the household trash.
this product in accordance with safety
Please take the equipment to a electron-
guidelines established by your physician
ics recycling center; OR, return the prod-
or the pacemaker manufacturer.
uct to the factory for proper disposal.
B S & D
ATTERY AFETY ISPOSAL
Battery Recycling:
Please do NOT dispose of used batteries
C A U T I O N !
in the household trash. Please take the
batteries to a retail or community collec-
Do not attempt to recharge disposable
tion point for recycling.
batteries, which may explode, release
dangerous chemicals, cause burns, or
other serious harm to the user or product.
MAN 136C ©2011 Williams Sound, LLC
O I
PERATING
1. Install AA batteries: Open the battery
compartment by lifting the tab on the
back of the transmitter with your fin-
ger. To remove depleted batteries, pull
I
NSTRUCTIONS
up on the fabric strip.
FIG. A
I M P O RTA N T: If non-rechargeable bat-
teries are being installed, slide the bat-
t e ry selection switch in the battery com-
p a rtment to the "Alkaline" position. See
FIG. A above. If installing NiMH (or
rechargeable) batteries, slide the battery
selection switch to the "NiMH" position.
Press the batteries into place over the
fabric strip. Be sure to observe proper
polarity (+/-). Damage due to improp-
er battery installation may void the
warranty on the product. Close the
battery door. LED will flash when the
batteries are getting low; continue to
use until the sound becomes weak or
distorted, or the unit quits operating,
then replace or recharge batteries.
2
FIG B: T863 Control Panel
NSTRUCTIONS
2. Plug the microphone cord into the
"Microphone Jack" on top of the
transmitter.
3. Turn the unit on: turn the
On/Off/Channel switch to position
"1" or "2" or "3." The Power "ON"
LED indicator should illuminate Red.
4. Select a desired operating frequency.
To operate on 863.25 MHz, turn the
On/Off/Channel switch to position
"1"; to operate on 863.75 MHz, turn
to position "2"; to operate on
864.75 MHz, turn to position "3."
IMPORTANT: The receiver will need
to match the operating frequency on
the transmitter for the tour guide sys-
tem to work properly.
5. Position the Headset Microphone
boom as close to the speaker's mouth
as possible without actually touching.
Lapel clip microphones should be
attached to a collar or lapel, as close
to the speaker's mouth as possible.
M
The transmitter can be placed in a ICROPHONE
pocket, or clipped onto a belt or
If necessary, the microphone gain con-
trol located in the battery compartment on
waistband.
the back of the T863 transmitter, can be
increased or decreased to meet the
I M P O RTA N T: When the T863 trans-
demands of specific listening applications.
mitter is not being used, remember to
The microphone gain control in FIG. C,
turn the unit OFF by turning the
can be adjusted by using a tuning wand or
O n / O ff/Channel Switch to the " "
small screwdriver. To reduce the gain,
power icon position. The Power "ON"
turn the gain control fully counterclock-
L E D indicator should n o t be lit.
wise. To increase the gain, turn the gain
control fully clockwise. Close the battery
door after adjustments have been made.
Battery Information
The T863 Transmitter can use two (2)
FIG. C
disposable AA batteries (BAT 001) or two
(2) AA rechargeable batteries (BAT 026).
Note: The BAT 026 provides longer life
than other rechargeable batteries. Do not
substitute other rechargeable batteries and
chargers.
Recharging
If the T863 Transmitter is equipped with
rechargeable batteries, up to 12 units can
be charged at one time in the optional
CHG 3512 multi-charger. Refer to MAN
Mic Adjust
116 charger instruction sheet for complete
charging instructions. For ordering infor-
mation, please contact Williams Sound at
800-843-3544.
3
G A
AIN DJUST
