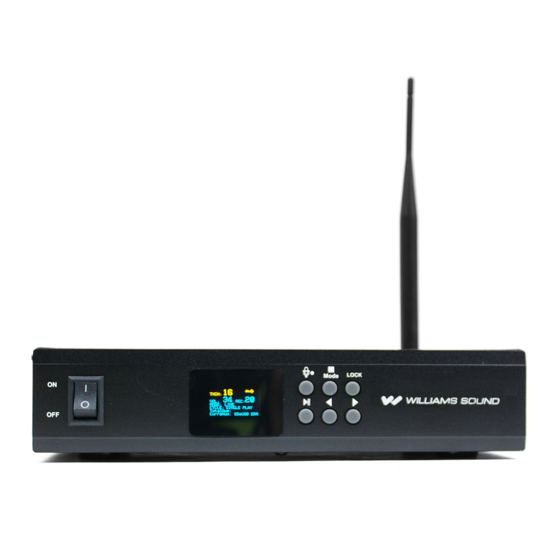

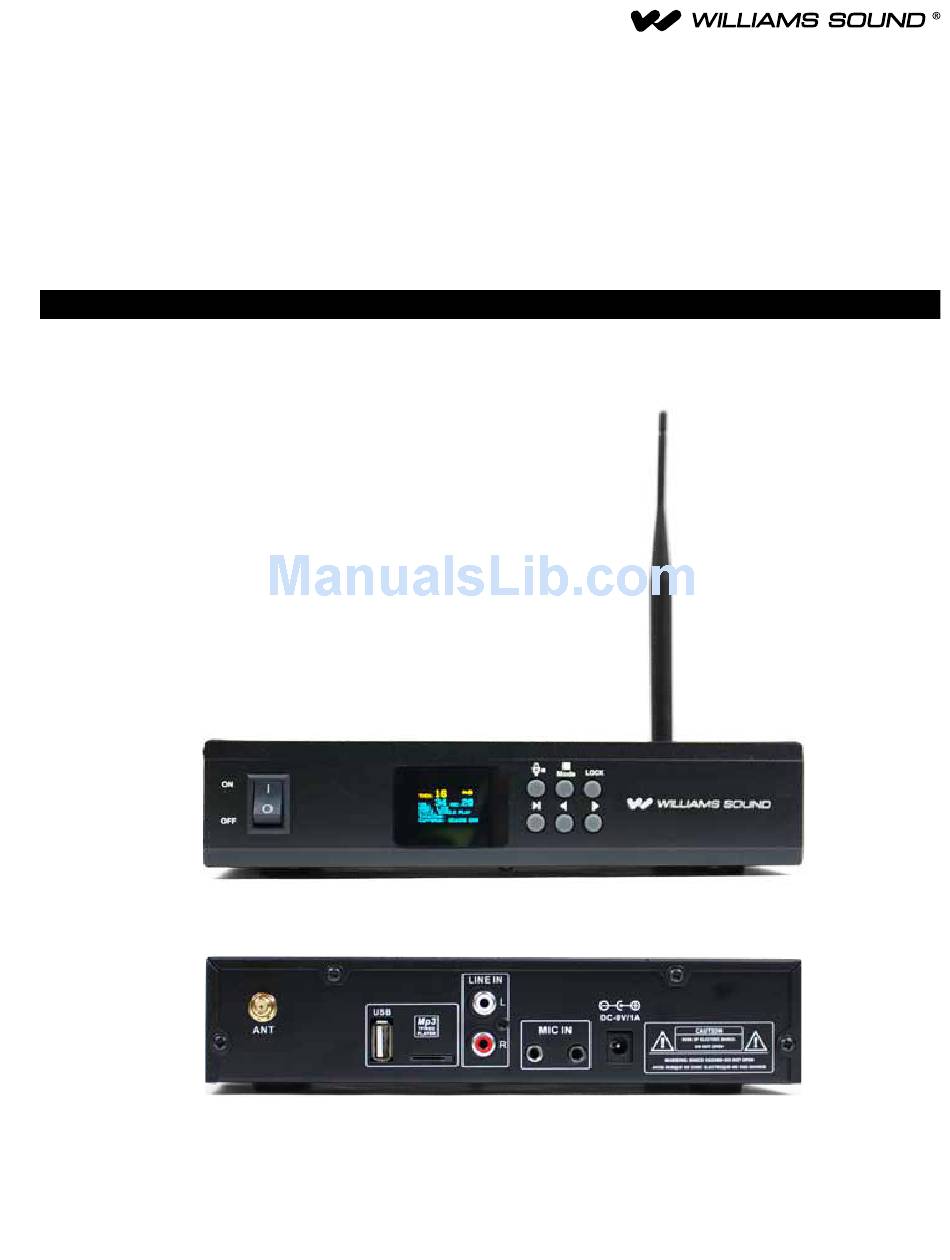

- Page 1 T2800 863 MHz FM Base Station Transmitter - Europe USER Manual For use with Williams Sound R2863 Receivers. MAN 184A...
-
Page 2: Recycling Instructions
System Overview Thank you for purchasing the T2800, 863 MHz FM Base Station Transmitter. This transmitter was designed for Europe and other areas where 863 MHz is the permitted frequency range for hearing assistance. This transmitter is compatible with Williams Sound R2863 Receivers. -
Page 3: Wiring And Connections
Stop/ Display Lock Used Mode On/O Switch The T2800 should be turned off when not in use to maximize the life of the screen pixels. LOCK Mode Wiring and Connections wireless audio system REAR VIEW Play/Pause... -
Page 4: Controls And Features
1. Make sure the unit is turned OFF. 2. Connect a microphone with a 3.5 mm plug into one of the 3.5 mm jacks on the rear of the T2800. Note: these two jacks are also refer to A486 - case drawing mixed internally, so two speakers can use individual microphones at the same time and both will be heard by the audience. - Page 5 1. Make sure the unit is turned OFF. 2. Connect the line-level source to the RCA jacks on the rear of the T2800. Note: these two jacks are mixed internally, so the L,R audio is combined into one mono channel that will be heard by the audience.
-
Page 6: Specifications
Williams Sound | T2800 863 MHz Transmitter - Europe | User Manual d. Push-and-hold the LOCK button until the lock symbol turns on. 5. Push the Play button on the T2800 to begin the MP3 player playing. The audio meter on the right should begin pulsing with the audio. -
Page 7: Troubleshooting
Williams Sound warrants the T2800 863 MHz FM Transmitter against defects in materials and workmanship for TWO (2) years. During the first two years from the purchase date, we will promptly repair or replace the T2800 863 MHz FM Transmitter. - Page 8 10300 Valley View Rd • Eden Prairie, MN 55344 800-328-6190 / 952-943-2252 • FAX: 952-943-2174 www.williamssound.com ©2014 Williams Sound MAN 184A...
