Summary of Contents for Fagor WC-46 DZ

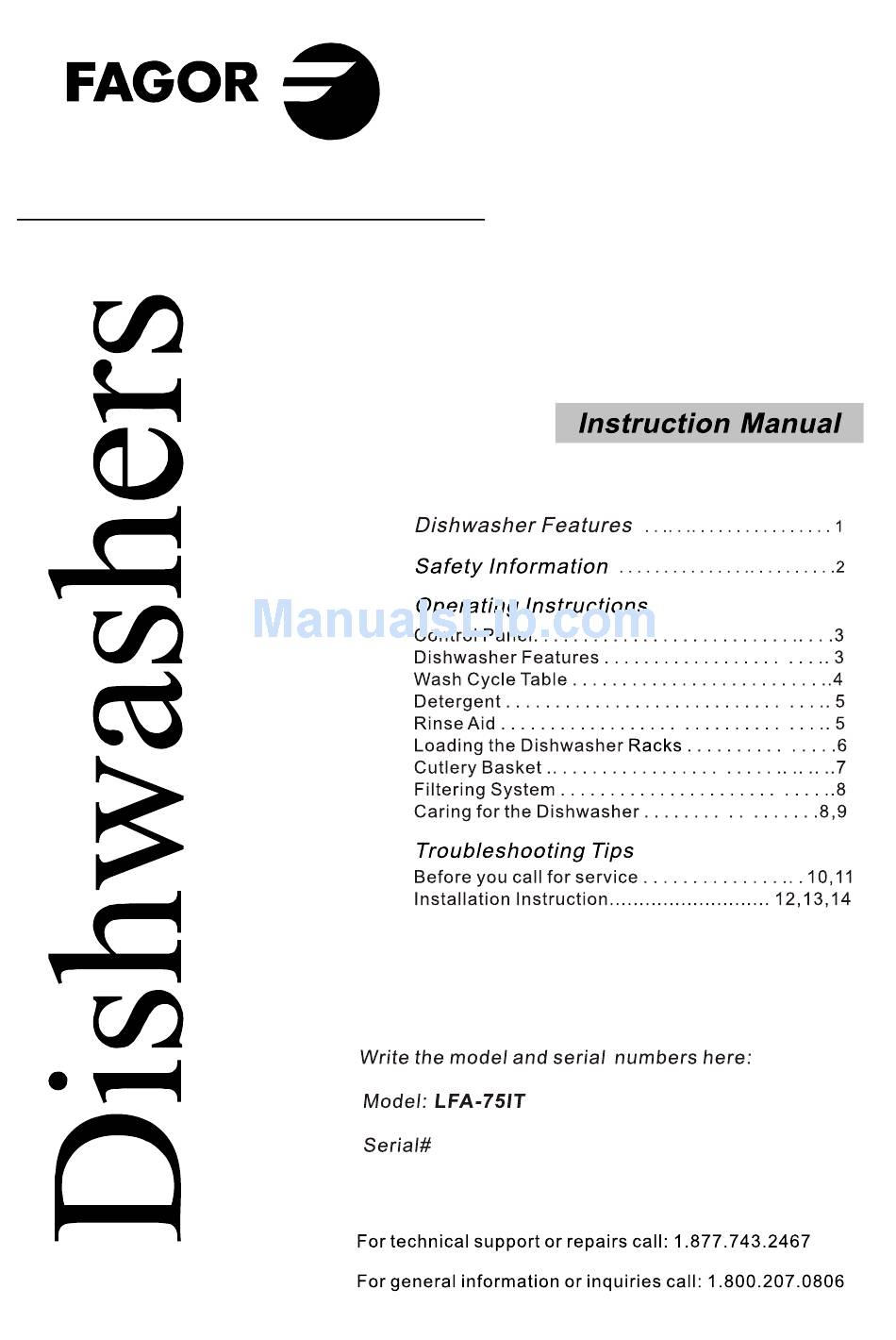

- Page 1 43 Moonachie Rd. Hackensack, NJ 07601...
- Page 2 The Fagor Model LFA-75IT has several characteristics which separate it from the competition. These Are: Time Delay feature This allows the start of the program to be delayed 24h . The Time Delay feature allows you to pro gram the dishwasher at your convenie nce, saving you time and money.
- Page 3 This appliance must be grounded. In the event Improper connection of the equipment- of a malfunction or breakdown, grounding will grounding conductor can result in a risk reduce the risk of electric shock by providing a of electric shock. Check with a qualified path of less resistance to the electrical currents.
- Page 4 To get the best performa nce from your dishwasher, read all operating instructio ns b efore us ing for the first time. 1.Display window In this screen, yo u will see the program remaining time, delay time options, the running indicator, the program indicator, High te mperature indicator , heat...
- Page 5 Pre-Wash For the heaviest or most soiled Pre-Wash loads such as pots, pans, Pre-Wash casserole dishes and plates ℃ Main Wash ° F (60 ) 2:10 6.42 that have been sitting with Rinse dried food on them for a Rinse while.
-
Page 6: Detergent Usage
Note: Please use only the recommenced amount of dishwashing liquid whe n washing your dishes. The detergent dispenser must be refilled before th e start o f each wash cycle. Please follow the manual instructions provided in the" Wash Cycle Table" on page 4 . As a rule of thumb, you generally only nee d one tables poon of dishwashing detergent for a normal h ousehold wash load. - Page 7 When the dishwasher begins to run out of rinse aid, the rinse aid dispenser indicato r will show a decrease in the size of the black dot. As the rinse aid in the dispenser diminishes the size of the black do t diminishes. You should never let the rinse aid get below 1/ 4 full.
-
Page 8: Operating The Dishwasher
WARNING! Operating the Dishwasher 1. Make sure the plug of the dishwasher is inserted into the proper wall outlet. 2. Make sure water supply is turned on to full pressure. Load dishes, bowls, glasses and/or pots into the dishwasher. Please see the "Loading Dishwasher" section in the manual for loading and arrangement details. -
Page 9: Cleaning The Spray Arms
For your convenience, we have placed the drain pump and filtering system within easy reach inside the tub. There are three components of the filtering system: the main filter, the coarse filter, and the fine filter. Main filter Food particles trapped by this filter are broken down by a special jet on the lower spray arm and washed down the drain. - Page 10 To clean the edges of the dishwasher door, use a soft, damp rag to wipe around the unit. Be sure to prevent the water from seeping into the door and onto any of the electrical components. It is best not to use spray cleaners on the dishwasher. It is also best not to use abrasive cleaners or scouring pads on the outer surface of the dishwasher as they tend to scratch and leave marks.
-
Page 11: Before You Call For Service
Before you call for service Below are some troubleshooting tips which can save you time and money. Please review the charts on the following pages. You may not need to call for service. Problem Possible Causes What To Do Noise Some of the sounds you’ll Detergent cup opening. - Page 12 •...
- Page 13 Electrical Shock Hazard The installation of the pipes Disconnect electrical power and electrical equipments before installing dishwasher. a professional. should be do ne b y Failure to do so result in electric shock or possible death. ● Installation preparation location inlet, drain The installation of the dishwashe r should be near the e xisting...
- Page 14 1. The custom panel should designed according to the measurements in Figure 3. 21.25" (540mm) 0.59" (15mm) 22.36" (568mm) 【 】 Figure 3 custom panel should designed and measured in accordance with the dimensions illustrated in Figure 3. 1.5" (38mm) 10"...
- Page 15 【 】 4X18 screw Figure 4b Cover Installation of custom panel Spacer for door Remove the cover Attach the screw Replace the cover Hook for custom door Outer door of door dishwasher Custom...
