Eiki LC-WXL200A Owner's Manual
  1. Manuals
  2. Brands
  3. Eiki Manuals
  4. Projector
  5. LC-WXL200A
  6. Owner's manual

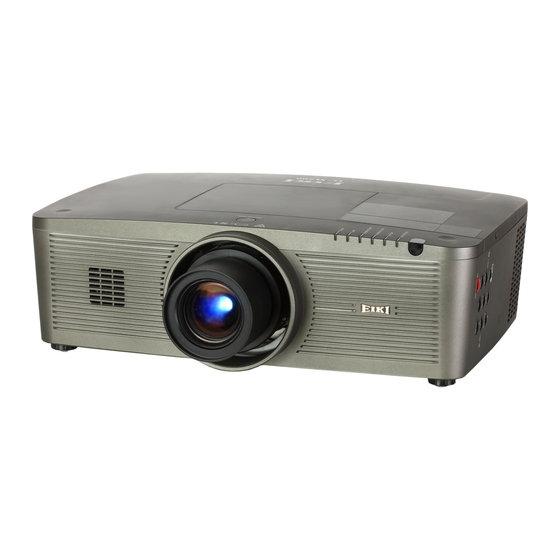

Eiki LC-WXL200A Owner's Manual

Hide thumbs Also See for LC-WXL200A:
Table of Contents

Advertisement

Quick Links

Multimedia Projector
MODEL
LC-WXL200A
LC-WXL200AL
■
Lens is optional for the projectors that "L" follows in model number.
Network Supported
Refer to the Owner's Manuals below for
details about network function.
□
Network Set-up and Operation
□
PJ Network Manager
Owner's Manual

Advertisement

Table of Contents
loading

Related Manuals for Eiki LC-WXL200A

Summary of Contents for Eiki LC-WXL200A

  • Page 1 Multimedia Projector Network Supported Refer to the Owner's Manuals below for details about network function. □ Network Set-up and Operation LC-WXL200A MODEL □ PJ Network Manager LC-WXL200AL ■ Lens is optional for the projectors that “L” follows in model number.

  • Page 2: Features And Design

    Features and Design This Multimedia Projector is designed with most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 1.07 billion colors, and matrix liquid crystal display (LCD) technology. Functionally Rich Multilanguage Menu Display ♦...

  • Page 3: Table Of Contents

    Table of Contents Features and Design . . . . . . . . . . . . . . . 2 Input Selection . . . . . . . . . . . . . . . . . . . 33 Table of Contents .

  • Page 4: To The Owner

    To The Owner Safety Precaution Before installing and operating the projector, read this manual thoroughly. WARNING: ● THIS APPARATUS MUST BE EARTHED . The projector provides many convenient features and ● TO REDUCE THE RISK OF FIRE OR functions. Operating the projector properly enables ELECTRIC SHOCK, DO NOT EXPOSE you to manage those features and maintains it in good THIS APPLIANCE TO RAIN OR...

  • Page 5: Safety Instructions

    Safety Instructions source indicated on the marking label. If you are not sure of All the safety and operating instructions should be read before the type of power supplied, consult your authorized dealer or the product is operated. local power company. Read all of the instructions given here and retain them for Do not overload wall outlets and extension cords as this can later use.

  • Page 6: Air Circulation

    Safety Instructions Air Circulation Openings in the cabinet are provided for ventilation. To IMPORTANT! ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or Filter Maintenance!! covered. The projector uses a lamp which generates significant heat.

  • Page 7: Installing The Projector In Proper Directions

    Safety Instructions Installing the Projector in Proper Directions Use the projector properly in specified positions. Improper positioning may reduce the lamp life and result in severe accident or fire hazard. This projector can project the picture in upward, downward, or inclined position in perpendicular direction to the horizontal plane.

  • Page 8: Moving The Projector

    LENS SHIFT button on the remote control for more than 5 seconds to return the lens to the central position, and then attach the protector to protect the lens. (For LC-WXL200A) Cautions in Handling the Projector Do not hold the lens or the lens compartment tube when lifting or moving the projector.

  • Page 9: Compliance

    Compliance Federal Communications Commission Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 10: Part Names And Functions

    ② ① Lamp Cover ③ ③ ② Speaker ④ Lens Cap (for LC-WXL200A) ⑤ Projection Lens (for LC-WXL200A) ⑥ CAUTION Do not cover the light beam in front of the lens. High temperature from light beam may damage the lens.

  • Page 11: Rear Terminal

    Part Names and Functions Rear Terminal ② ③ ④ ⑤ ⑥ ⑦ ⑧ ① ⑩ ⑨ ⑪ ⑫ ⑬ ⑭ ⑮  ① INFRARED REMOTE RECEIVER (Back) ⑨ 5 BNC INPUT jACKS The infrared remote receiver is also located in the front and top Connect the component or composite video (pp.10, 15).

  • Page 12: Side Control And Indicators

    Part Names and Functions Side Control and Indicators Side Control Indicators (on the top panel) ① ⑧ ⑨ ② ⑦ ③ ⑩ ⑪ ④ ⑥ ⑫ ⑬ ⑤ ① ON/STAND-By button ⑨ LAMP indicator Turn the projector on or off (pp.23-24). Light red during operations.

  • Page 13: Remote Control

    Part Names and Functions Remote Control ② ① ③ ⑫ ④ ⑪ ⑤ ⑩ ⑥ ⑨ ⑦ ⑧ STAND-By button R-CLICK button ① ⑧ Act as the right mouse button for wireless mouse Turn the projector off (p.24). operation (p.32). SIGNAL EMISSION indicator ②...
  • Page 14 Part Names and Functions Remote Control ㉙ ㉘ ⑬ ㉗ ⑭ ㉖ ⑮ ㉕ ㉚ ⑯ For PIN code ㉔ and remote ㉓ control code. ㉒ ⑰ ㉑ ⑱ ⑲ ⑳ P-TIMER button FOCUS buttons ⑬ ㉒ Operate the P-timer function (pp.30, 60). Adjust the focus (p.29).

  • Page 15: Remote Control Battery Installation

    Part Names and Functions Remote Control Battery Installation Open the battery Install new batteries into Replace the compartment lid. the compartment. compartment lid. Two AAA size batteries For correct polarity (+ and –), be sure battery terminals are in contact with pins in the compartment.

  • Page 16: Remote Control Code

    Part Names and Functions Remote Control Code The eight different remote control codes (Code 1–Code 8) are assigned to this projector. Switching the remote control codes prevents interference from other remote controls when several projectors or video equipment next to each other are operated at the same time.

  • Page 17: Installation

    Installation Positioning the Projector For projector positioning, see the figures below. The projector should be set perpendicularly to the plane of the screen (For LC-WXL200A) Note:  • The brightness in the room has a great influence on picture quality. It is recommended to limit ambient lighting in order to obtain the best image. • All measurements are approximate and may vary from the actual sizes. (Inch Diagonal) 80.1' (24.4 m) 47.2’(14.4 m) 35.4’(10.8 m) 400”...

  • Page 18: Lens Installation

    Installation Lens Installation When replacing the lens or using an optional lens, install the lens by following the instructions below. Ask the sales dealer for detailed information of the optional lens specifications. Removing the lens Shift the lens to the center position by using the Lens Lens release button shift function (p.27).

  • Page 19: Connecting To A Computer (Digital And Analog Rgb)

    Installation Connecting to a Computer (Digital and Analog RGB) Cables used for connection = Cables not supplied with this projector.)  • VGA Cable (One cable is supplied.) • Serial Cross cable  • HDMI-DVI cable • USB cable  ...

  • Page 20: Connecting To Video Equipment (Video, S-Video, Hdmi)

    Installation Connecting to Video Equipment (Video, S-video, HDMI) Cables used for connection = Cables not supplied with this projector.)  • Video cable (RCA x 1 or RCA x 3) Analog Out Signal Table  • BNC cable (BNC x 1 or BNC x 3) ...

  • Page 21: Connecting For Audio Signal

    Installation Connecting for Audio Signal Cables used for connection = Cables not supplied with this projector.)  • Audio cable  External Audio Equipment Audio Output Audio Output (R) (L) Audio Input Audio Audio Audio cable cable cable Audio (stereo) (stereo) cable (stereo)

  • Page 22: Connecting The Ac Power Cord

    Installation Connecting the AC Power Cord This projector uses nominal input voltages of 100–240 V AC and it automatically selects the correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce the risk of electrical shock, do not plug into any other type of power system.

  • Page 23: Basic Operation

    Connect the projector’s AC power cord into an AC outlet. The LAMP indicator lights red and the POWER indicator lights http://www.eiki.com green. Press the ON/STAND-BY button on the side control or the ON The preparation display will disappear after 30 seconds.

  • Page 24: Turning Off The Projector

    Basic Operation What is PIN code? PIN (Personal Identification Number) code is a security code that allows the person who knows it to operate the projector. Setting a PIN code prevents unauthorized use of the projector. A PIN code consists of a four-digit number. Refer to the PIN code lock function in the Setting Menu on pages 61-62 for locking operation of the projector with your PIN code.

  • Page 25: How To Operate The On-Screen Menu

    Basic Operation How to Operate the On-Screen Menu The projector can be adjusted or set via the On-Screen Side Control Menu. The menu has a hierarchical structure, with a main menu that is divided into submenus, which are further MENU button divided into other submenus.

  • Page 26: Main Menu

    Basic Operation Main Menu For detailed functions of each menu, see “Menu Tree” on pages 76-78. Main Menu Sub-Menu            Input Used to select an input source (Input 1, Input 2, Input 3 or Network) (p.33). Note: Network will not be displayed when optional Pj-to NetDirector is not attached.

  • Page 27: Operating With Projector Control

    Basic Operation Operating with Projector Control Lens Operation Side Control The following lens operation can be made with the LENS button on the side control. Press the LENS button to enter each lens operation mode. The selected adjustment display appears on the screen. Zoom →...

  • Page 28: Sound Adjustment

    Basic Operation Sound Adjustment Side Control Direct Operation VOLUME +/– buttons Volume Press the VOLUME+/– buttons on the side control or on the remote control to adjust the volume. The volume dialog box appears on the screen for a few seconds. Mute Press the MUTE (Point ▼) button on the remote control to select On to temporarily turn off the sound.

  • Page 29: Operating With Remote Control

    Basic Operation Operating with Remote Control Using the remote control for some frequently used operations is advisable. Just pressing one of the buttons enables you to make the desired operation quickly without calling up the On-Screen Menu. SHUTTER button Remote Control See pages 27, 63 for details.
  • Page 30 Basic Operation MOUSE POINTER button Remote Control Move the pointer on the screen with this button. POINTER button Press POINTER button on the remote control to display the Pointer on the screen (see pages 32, 60). MOUSE P-TIMER button POINTER button Press the P-TIMER button on the remote control to operate the Count up/Count down function.

  • Page 31: Keystone Correction

    Basic Operation Keystone Correction If a projected picture still has keystone distortion after pressing the AUTO PC button on the remote control, correct the image manually as follows: Press the KEYSTONE button on the remote control to switch the POINT Standard (for Vertical/Horizontal) /Corner correction adjustment.

  • Page 32: Pointer Function

    Basic Operation Pointer Function You can move the Pointer of the projector with the remote control to emphasize a part of the projected image. Press the POINTER button to activate the Pointer function. MOUSE POINTER button Use the MOUSE POINTER button to move the Pointer. POINTER button To cancel the Pointer function, press the POINTER button again or press any other button.

  • Page 33: Input Selection

    Input Selection Direct Operation Side Control/Remote Control Operation Side Control Remote Control INPUT button INPUT button* * Only the Input button function is set Mode 1 in the Setting menu, the INPUT button is used for switching input source (p.51). The input source changes each time you press the INPUT button on the side control or the remote control as follows: Input 1→...

  • Page 34: Computer Input Source Selection

    Input Selection Computer Input Source Selection INPUT MENU Menu Operation Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Input and then press the Point ► or the SELECT button. Use the Point ▲▼ buttons to select the desired input and then press the Point ►...

  • Page 35: Video Input Source Selection

    Input Selection Video Input Source Selection Menu Operation Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Input and then press the Point ► or the SELECT button. Use the Point ▲▼ buttons to select the desired input and then press the Point ►...

  • Page 36: Computer Input

    Computer Input Computer System Selection Automatic Multi-Scan System This projector automatically tunes to various types of computers with its Multi-scan system and Auto PC adjustment. If a computer is selected as a signal source, this projector automatically detects the signal format and tunes to project a proper image without any additional settings (Signal formats provided in this projector are shown on pages 82-83).

  • Page 37: Auto Pc Adjustment

    Computer Input Auto PC Adjustment Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots, Position H and Position V to conform to your computer. Direct Operation Remote Control The Auto PC adjustment function can be operated directly by pressing the AUTO PC button on the remote control.

  • Page 38: Manual Pc Adjustment

    Computer Input Manual PC Adjustment Some computers employ special signal formats which may not be tuned by Multi-Scan system of this projector. Manual PC Adjustment enables you to precisely adjust several parameters to match those special signal formats. The projector has 10 independent memory areas to store those parameters manually adjusted.

  • Page 39: Mode Free

    Computer Input Reset To reset the adjusted data, select Reset and press the SELECT button. A confirmation box appears and then select yes. All adjustments will return to their previous figures. Mode free Mode free To clear the stored data, select Mode free and then press the Point ►...

  • Page 40: Image Level Selection

    Computer Input Image Level Selection Menu Operation Press the MENU button to display the On-Screen Menu. Use the Point buttons to select Image select and ▲▼ then press the Point or the SELECT button. ► Use the Point buttons to select the desired item ▲▼...

  • Page 41: Image Adjustment

    Computer Input Image Adjustment Press the MENU button to display the On-Screen Menu. Image adjust Menu Use the Point buttons to select Image adjust and ▲▼ then press the Point button. ► the SELECT Use the Point buttons to select the desired item ▲▼...

  • Page 42: Screen Size Adjustment

    Computer Input Store Reset To reset the adjusted data, select Reset and press the SELECT button. A confirmation box appears and then select yes. All adjustments will return to their previous figures. Store To store the adjusted data, select Store and press the Point ► or the SELECT button.
  • Page 43 Computer Input Custom adj . Custom adj . Adjust the screen scale and position manually with this function. Press the Point ►button or the SELECT button at Custom adj . and Custom adj . is displayed on the screen, you can use the Point ▲▼...
  • Page 44 Computer Input Keystone This function is used to adjust keystone distortion of the projected image. Use the Point ▲▼ buttons to choose the item you want to Keystone adjust. Standard Adjust the Horizontal/Vertical keystone distortion of the projected image. Corner correction Adjust the corner distortion of the projected image.

  • Page 45: Video Input

    Video Input Video System Selection Press the MENU button to display the On-Screen Menu. Use AV System Menu (Video or S-video) the Point ▲▼ buttons to select Input and then press the Point ► or the SELECT button. Use the Point ▲▼ buttons to select System and then press the Point ►...

  • Page 46: Image Level Selection

    Video Input Image Level Selection Menu Operation Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Image select and then press the Point ► or the SELECT button. Use the Point ▲▼ buttons to select the desired item and then press the SELECT button.

  • Page 47: Image Adjustment

    Video Input Image Adjustment Press the MENU button to display the On-Screen Menu. Use Image adjust Menu the Point ▲▼ buttons to select Image adjust and then press the Point ► or the SELECT button. Use the Point ▲▼ buttons to select the desired item and then press the SELECT button to display the adjustment dialog box.

  • Page 48: Noise Reduction

    Video Input Offset(Red/Green/Blue) Press the Point ◄ button to lighten red/green/blue tone of the black level of an image; press the Point ► button to deepen red/ green/blue tone of the black level of an image (from 0 to 63). Sharpness Press the Point ◄...

  • Page 49: Screen Size Adjustment

    Video Input Screen Size Adjustment Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Screen and then press the Point ► or the SELECT button. Use the Point ▲▼ buttons to select the desired item and then press the SELECT button.

  • Page 50: Corner Correction

    Video Input Keystone Keystone This function is used to adjust keystone distortion of the projected image. Use the Point ▲▼ buttons to choose the item you want to adjust. Standard Adjust the Horizontal/Vertical keystone distortion of the projected image. Corner correction Adjust the corner distortion of the projected image.

  • Page 51: Setting

    Setting Setting This projector has a Setting menu that allows you to set up the Setting Menu other various functions described below. Press the MENU button to display the On-Screen Menu. Press the Point ▲▼ buttons to select Setting and press the Point ►...
  • Page 52 Setting Display This function decides whether to display On-Screen Displays. On ....... Show all the On-Screen displays. Use this function when you want to project images after the lamp becomes bright enough. The factory default setting is in this option. Countdown Off ..
  • Page 53 Setting Capture This function enables you to capture an image being projected to Capture use it for a starting-up display or interval of presentations. Select Capture and press the SELECT button. A confirmation box appears and select yes to capture the projected image.
  • Page 54 Setting Enter a Logo PIN code Enter a Logo PIN code Use the Point ▲▼ buttons to enter a number. Press the Point ► button to fix the number and move the red frame pointer to the next box. The number changes to . If you fixed an incorrect number, use the Point ◄...
  • Page 55 Setting Status (Stored /Free/ Picture in Picture Selected Adj .) of the selected Picture in Picture Mode mode. This function is used to project two images simultaneously by placing a separate small sub screen within or next to the main screen. Use the Point ▲▼...
  • Page 56 Setting Frame lock Set the Frame Lock to Main picture or Sub picture. Reset Press the SELECT button at Reset to display a confirmation box. To reset, press the SELECT button at yes. Mode free Delete the data stored in the Mode and return to Free. Use the Point ▲▼...

  • Page 57: Lamp Control

    Setting Lamp control Lamp control Lamp control This function allows you to change brightness of the screen. Auto ..Brightness according to the input signal. Normal . . . Normal brightness. Eco 1 ..Lower brightness and decrease of fan speed. Lower brightness reduces the lamp power consumption and extends the lamp life.
  • Page 58 Setting Filter control Filter control You can replace the filter with this function. Press the SELECT button at Filter control to display a confirmation box. To replace, press the SELECT button at yes and the electrically operated filter starts to scroll. ...
  • Page 59 Setting RC sensor Select a location of the infrared remote receiver of the remote control. See “Remote Control Receivers and Operating Range” on page 15 for details. All......Activate all of the receivers. Front & Top...Activate both the front and top receivers. Top &...
  • Page 60 Setting Direct on When this function is set to On, the projector will be automatically turned on just by connecting the AC power cord to the wall outlet. Note: Be sure to turn off the projector properly (see “Turning Off the Projector” on page 24). If the projector is turned off in the incorrect sequence, the Direct on function does not work properly. Pointer P-TIMER You can emphasize a part of the projected image with this function. Use the Point ▲▼...
  • Page 61 Setting Key lock Security (Key lock and PIN code lock) This function allows you to use the Key lock and PIN code lock function to set the security for the projector operation. Key lock This function locks the side control and remote control buttons to prevent operation by unauthorized persons.
  • Page 62 Setting Enter a PIN code Use the Point ▲▼ buttons to enter a number. Press the Point ► Enter a PIN code button to fix the number and move the red frame pointer to the next box. The number changes to . If you fixed an incorrect number, use the Point ◄...
  • Page 63 Setting Shutter Shutter Shutter function is available to block out light to the screen, so that the screen can be used for the other presenters. Protection Prohibit the shutter operation from the remote control and the projector's side control. Remote control . . Selecting On prohibits the shutter operation from the remote control.

  • Page 64: Closed Caption

    Setting Closed caption Closed caption Closed Caption is a function that displays the audio portion of a TV program as text on the screen. If the input signal contains closed captions, you can turn on the feature and switch the channels. Press the Point ▲▼ buttons to select Off, CC1, CC2, CC3 or CC4.

  • Page 65: Filter Counter

    Setting Filter counter Filter counter This function is used to set a frequency for the filter replacement. Use the Point ▲▼ buttons to select Filter counter and then press the Point or the SELECT button to access the submenu items. ►...

  • Page 66: Maintenance And Care

    Maintenance and Care Filter Instructions Filter prevents dust from accumulating on the optical elements inside the projector. Should the filter becomes clogged with dust particles, it will reduce cooling fans’ effectiveness and may result in internal heat buildup and adversely affect the life of the projector.

  • Page 67: Replacing The Filter Cartridge

    ORDER REPLACEMENT FILTER CARTRIDGE Replacement filter cartridge can be ordered through your dealer. When ordering, give the following information to the dealer. Model No . of your projector ● LC-WXL200A, LC-WXL200AL Replacement Filter Cartridge ● Service Parts No. 610 346 9034...

  • Page 68: Resetting The Filter Counter

    Maintenance and Care Resetting the Filter Counter Filter counter Be sure to reset the Filter counter after replacing the filter cartridge. Press the MENU button to display the On-Screen Menu. Use the Point ▲▼ buttons to select Setting and then press the Point ►...

  • Page 69: Lamp Replacement

    Maintenance and Care Lamp Replacement When the projection lamp of the projector reaches its end of life, the Lamp replacement icon appears on the screen and LAMP REPLACE indicator lights orange. Replace the lamp with a new one promptly. The timing when the LAMP REPLACE indicator should light is depending on the lamp mode.

  • Page 70: Lamp Handling Precautions

    ORDER REPLACEMENT LAMP Replacement lamp can be ordered through your dealer. When ordering, give the following information to the dealer. Model No . of your projector :LC-WXL200A, LC-WXL200AL ● Replacement Lamp Type No . :POA-LMP136 ● (Service Parts No. 610 346 9607)

  • Page 71: Cleaning The Projection Lens

    Maintenance and Care Cleaning the Projection Lens Unplug the AC power cord before cleaning. Gently wipe the projection lens with a cleaning cloth that contains a small amount of non-abrasive camera lens cleaner, or use a lens cleaning paper or commercially available air blower to clean the lens.

  • Page 72: Warning Indicators

    Maintenance and Care Warning Indicators The WARNING indicators show the state of the function which protects the projector. Check the state of the WARNING indicators and the POWER indicator to take proper maintenance. The projector is shut down and the WARNING Top Panel TEMP .

  • Page 73: Appendix

    Appendix Troubleshooting Before calling your dealer or service center for assistance, check the items below once again. 1. Make sure you have properly connected the projector to peripheral equipment as described on pages 19-21. 2. Check the cable connection. Make sure that all computers, video equipment, and power cords are properly connected. 3.
  • Page 74 Appendix – Filter is out of scroll. Replace the filter cartridge with a new one promptly (See pages 67-68). appears on the screen – Adjust the focus of the projector. – Check Projection Lens to see if it needs cleaning. Note: Moving the projector from a cool temperature location to a warm temperature ...
  • Page 75 Appendix The shutter does not - Check "Protection" or “Management” of the Shutter function. (See p.63) work . – Power management function runs by initial setting. Check “Setting” section on page – When the filter cartridge replacement icon keeps appearing on the screen at turning on the projector for some time and no action is taken to replace the filter cartridge, the projector will be automatically shut down in 3 minutes after turning on to protect the The power is turned off...

  • Page 76: Menu Tree

    Appendix Menu Tree Computer Input/HDMI Input/Video Input Input Sound Input Sound Input 1 RGB (PC analog) Volume 0-63 On/Off Built-in SP RGB (Scart) Mute On/Off HDMI Information Input 2 Video Information Input Y, Pb/Cb,Pr/Cr H-sync freq. V-sync freq. Screen Language Input 3 Video Lamp status...

  • Page 77: Image Select

    Appendix HDMI Input/Video Input Screen Screen Normal Image adjust Full Wide(16:9) Zoom Image adjust Contrast 0–63 True Brightness 0–63 Custom Color 0–63 Scale H / V Custom adj. Tint 0–63 H & V On/Off Iris On/Off Position H / V Common Color temp.
  • Page 78 Appendix Computer Input/HDMI Input/Video Input Setting Setting Language 12 languages provided. Menu position Input button Mode 1/Mode 2/Mode 3 Display On/Countdown Off/Off Background Blue/User/Black Logo select Logo User Default Capture Yes/No Off/On Logo PIN code lock Logo PIN code change Picture in Picture Image Normal/Enhanced...

  • Page 79: Indicators And Projector Condition

    Appendix Indicators and Projector Condition Check the indicators for the projector condition. The projector is operating normally . Indicators Projector Condition WARNING WARNING LAMP POWER LAMP SHUTTER TEMP. FILTER REPLACE green blue orange orange The projector is off (The AC power cord is unplugged.). The projector is in stand-by mode.
  • Page 80 Appendix The projector is detecting abnormal condition . Indicators Projector Condition WARNING WARNING LAMP POWER LAMP SHUTTER TEMP. FILTER REPLACE green blue orange orange The temperature inside the projector is elevated close to the  ❖   abnormally high level. The temperature inside the projector is abnormally high.
  • Page 81 Appendix The projector is detecting abnormal condition . Indicators Projector Condition WARNING WARNING LAMP POWER LAMP SHUTTER TEMP. FILTER REPLACE green blue orange orange  If the Filter counter reached a time set in the timer setting, a Filter  ...

  • Page 82: Compatible Computer Specifications

    Appendix Compatible Computer Specifications Basically this projector can accept the signal from all computers with the V- and H-Frequency mentioned below and less than 140 MHz of Dot Clock. When the input signal is Analog, refer to the chart below. ON-SCREEN RESOLUTION H-Freq .
  • Page 83 Appendix When the input signal is digital from HDMI terminal, refer to the chart below. ON-SCREEN RESOLUTION H-Freq . V-Freq .(Hz) ON-SCREEN RESOLUTION H-Freq . V-Freq .(Hz) DISPLAy (kHz) DISPLAy (kHz) D-VGA 640x480 31.470 59.940 D-720p 1280x720 45.000 60.000 D-480p 720x480 31.470 59.880...

  • Page 84: Technical Specifications

    Scanning Frequency H-sync. 15 kHz–100 kHz, V-sync. 48 Hz–100 Hz Optical Information Projection Image Size (Diagonal) Adjustable from 40” to 400” (LC-WXL200A) Throw Distance 4.5' (1.4m) - 80.1' (24.4m) (LC-WXL200A) Projection Lens F1.7–2.3 lens with f=26.9 mm–45.4 mm with motor zoom and focus...

  • Page 85: Optional Parts

    Appendix Optional Parts The parts listed below are optionally available. When ordering those parts, specify the item name and Model No. to the sales dealer. Model No. Standard Zoom Lens : AH-24741 Long Zoom Lens : AH-24771 Ultra Long Zoom Lens : AH-24781 Short Zoom Lens : AH-24711...

  • Page 86: Configurations Of Terminals

    Appendix Configurations of Terminals ANALOG/ ANALOG OUT (Mini D-sub 15 pin) Input Red Input +5V Power Green Input Ground (Vert.sync.) Blue Input Ground No Connect DDC Data Ground (Horiz.sync.) Horiz. sync. Input (Composite H/V sync.) Ground (Red) Vert. sync. Input Ground (Green) DDC Clock Ground (Blue)

  • Page 87: Pin Code Number Memo

    Appendix PIN Code Number Memo Write down the PIN code number in the column below and keep it with this manual securely. If you forgot or lost the number and unable to operate the projector, contact the service center. PIN Code Lock No . Factory default set No: 1 2 3 4* Logo PIN Code Lock No .

  • Page 88: Dimensions

    Appendix Dimensions Unit: inch (mm) Screw Holes for Ceiling Mount Screw: M6 Depth: 0.393 (10.0) 16.39(416.2) 3.80(96.6) 4.34(110.3) 19.27(489.5) 7.70(195.5) 6.89(175.0) 6.25(158.8) 5.91(150.0) 3.78(96.0) 6.46(164.0)

  • Page 89: List Of Picture In Picture

    Appendix List of Picture in Picture o : Picture in Picture combinations are enabled. x : Picture in Picture combinations are disabled.  Note: • When the input signal(s) is/are incompatible, X mark will be displayed on the Main/Sub picture. •...
  • Page 90 Appendix Functional Execution Command Format The command is sent from PC to the projector with the format below; 'C' [Command] 'CR' Command: two characters (refer to the command table below. -The projector decodes the command and returns the 'ACK' with the format below; 'ACK' 'CR' -When the projector can not decode the command, it returns with format below.
  • Page 91 Appendix Status Read Command Format The command is sent from PC to the projector with the format below; 'CR' [Command] 'CR' Command: one character (refer to the command table below. The projector decodes the command and returns the 'Character string' with the format below; Projector Command Function...
  • Page 92 U.S.A. Canada EIKI International, Inc. EIKI CANADA - Eiki International, Inc. 30251 Esperanza P.O. Box 156, 310 First St. - Unit 2, Rancho Santa Margarita Midland, ON, L4R 4K8, Canada CA 92688-2132 Tel : 800-563-3454 (705)-527-4084 U.S.A. Fax : 800-567-4069 (705)-527-4087...
