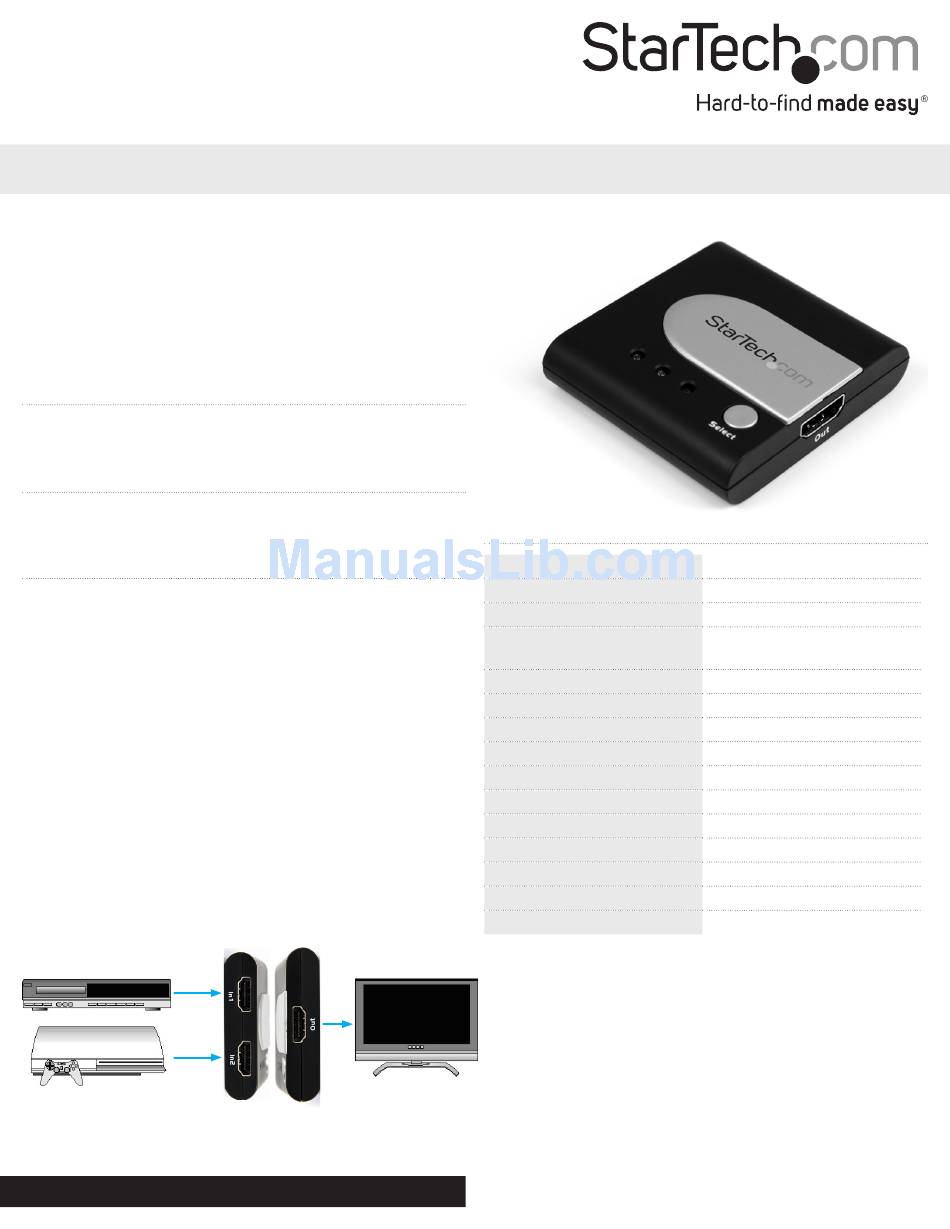

Instruction Manual
2 Port Auto High Speed HDMI Switch
VS122HDMIU
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging Contents
• 1 x VS122HDMIU switch
• 1 x HDMI cable
System Requirements
• HDMI enabled display device (i.e. HDTV, monitor, projector, etc.)
• HDMI enabled video sources (i.e. computer, game console, etc.)
Installation
1. Connect an HDMI cable (not included) from each of the video
source devices (i.e. computer, game console, DVR, etc.) to the 'IN'
connectors on the video switch. Port 1 is the primary input so will
be displayed by default.
2. Connect an HDMI cable from the display device (i.e. HDTV,
monitor, etc.) to the 'OUT' connector on the video switch.
3. Turn on the display device, followed by the video sources.
If the video signal on Port 1 is terminated (i.e. turned off, cable
disconnected, etc.), then the video switch will automatically select
Port 2. Once the video signal is restored on Port 1, the video switch
will automatically switch back to Port 1.
The video switch can be manually toggled between ports by
pressing the "Select" button on the top of the unit. This setting will
remain until the video signal on Port 1 changes, setting it back to
automatic mode.
HDMI Video Sources
For the most up-to-date information, please visit: www.startech.com
Specifications
Video Signal
Number of Ports
Connectors
LEDs
Video Bandwidth
Maximum Video Resolution
Maximum Cable Distance
Audio Support
HDCP Compliant
Power Adapter
Operating Temperature
Storage Temperature
Humidity
Dimensions
Weight
Display Device
*actual product may vary from photos
HDMI (1.3)
2
3 x HDMI type A female
1 x Power
2 x Port Selection Indicator
2.5Gbps
1080p
10 m
Yes
Yes (HDCP 1.1)
Self-powered
0°C ~ 70°C (32°F ~ 158°F)
-65°C ~ 150°C (-85°F ~ 302°F)
10% ~ 85% RH
63.0mm x 59.0mm x 15.0mm
35g
Manual Revision: 03/27/2012
