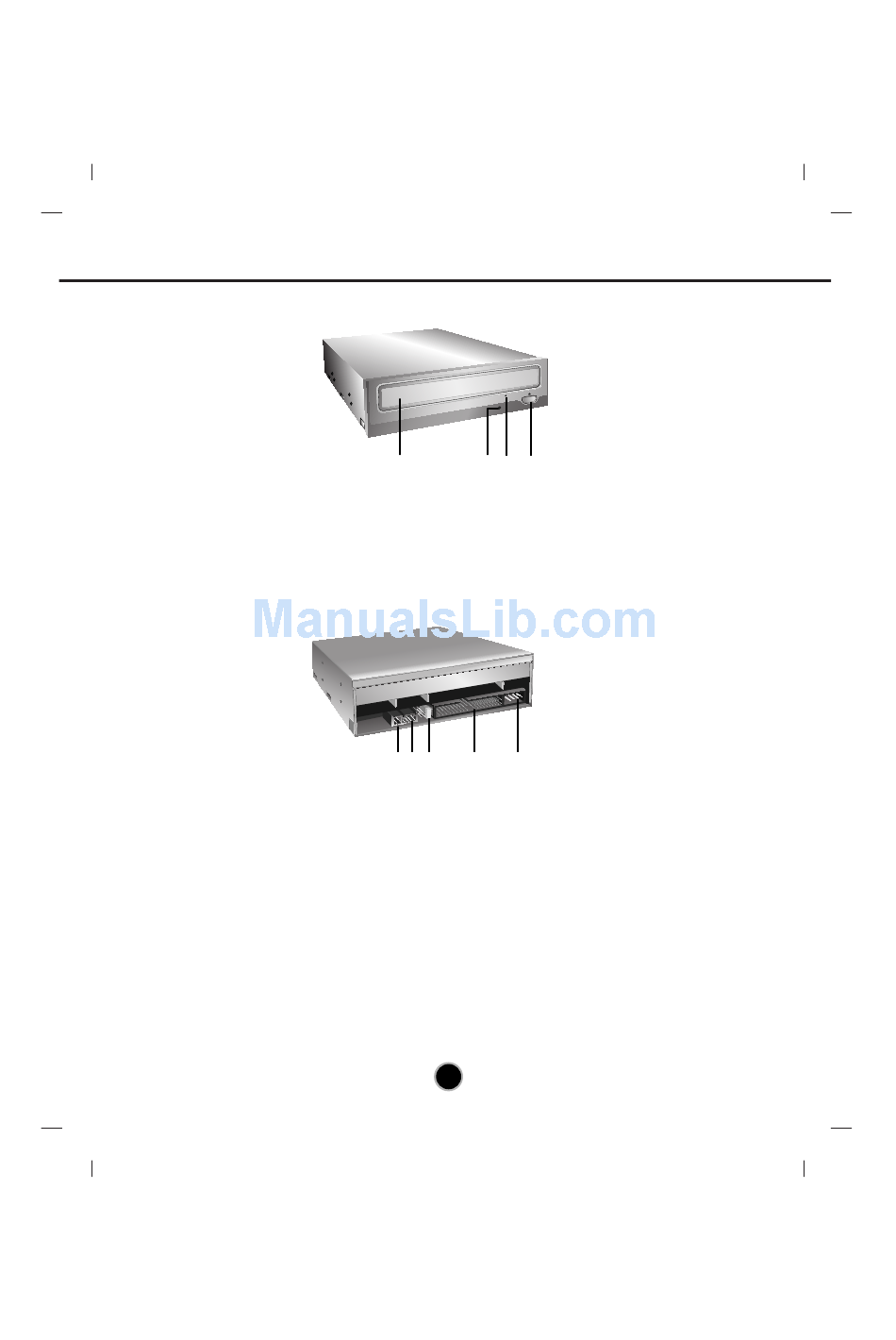

Location and Function of Controls

Front Panel
1. Disc Tray
2. Drive activity indicator (Read/Write)
3. Emergency Eject Hole
4. Stop/Eject Button
Rear Panel
1. Digital Audio Output Connector
This connector is not supported.
2. Analog Audio Output Connector
Connect to a sound card. This connection is normally not required.
3. Jumper Connector
This jumper determines whether the drive is configured as a master or slave. Changing the master-slave
configuration takes effect after power-on reset.
4. IDE Interface Connector
Connect to the IDE (Integrated Device Electronics) Interface using a 40-pin flat IDE cable.
NOTE : Do not connect or disconnect the cable when the power is on, as this could cause a short circuit
and damage the system. Always turn the power OFF when connecting or disconnecting this cable.
5. Power Connector
❋ The drive's appearance and specifications may change without prior notice.
1
2
3
4
1 2 3
4
5
3
