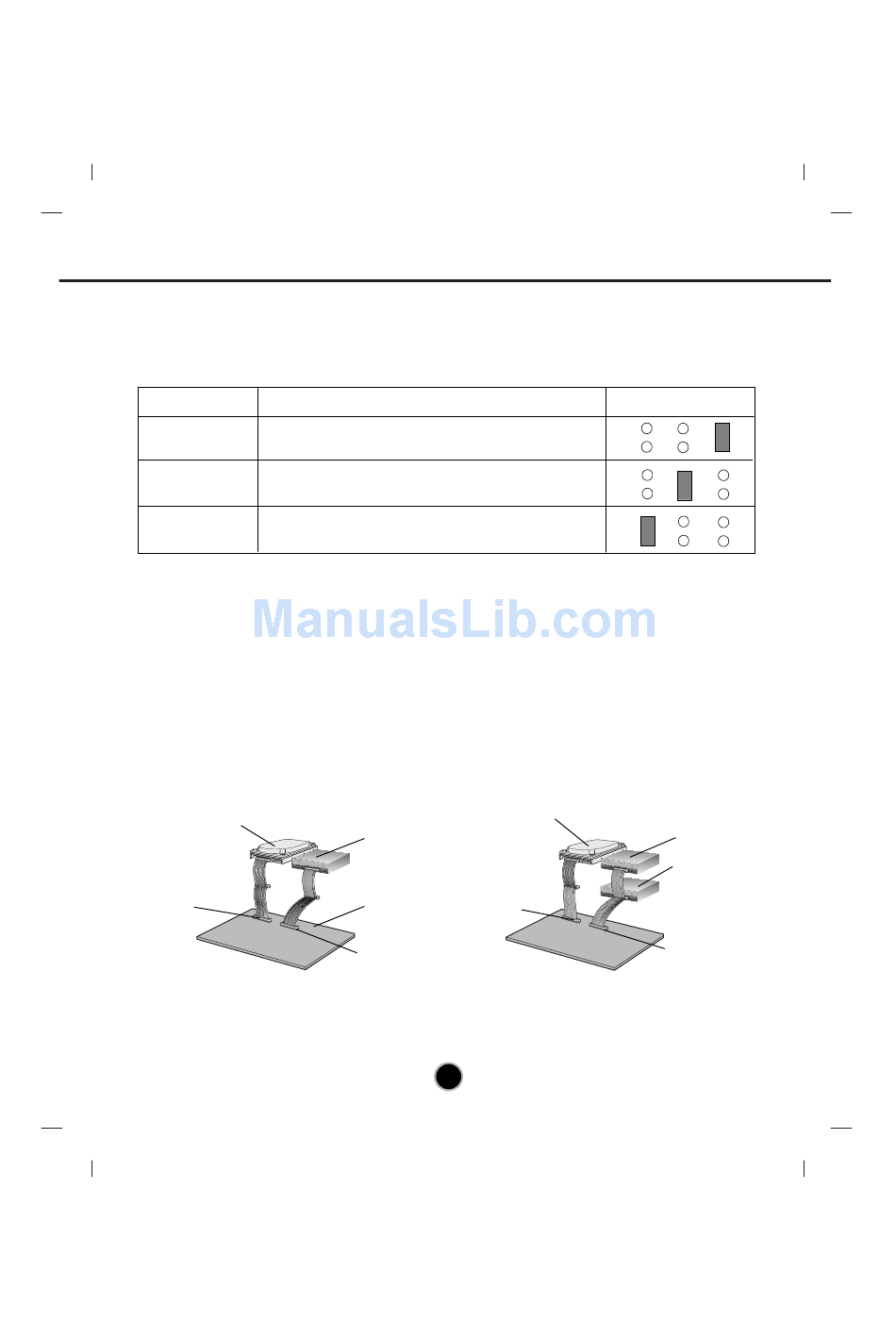

NOTE : Only one jumper should be installed on the jumper connector.
If more than one jumper is installed, the drive may malfunction or be damaged.
Master/Slave setting is determined by jumper installation on the Jumper Connector.
The following table shows the possible jumper settings.
Name
Function
MA
Drive set as Master
(Master)
Drive set as Slave
SL
(Slave)
Drive mode set by CSEL on the host IDE interface
CS
(Cable Select)
If you use CSEL setting, the MASTER/SLAVE setting will be made automatically, depending
on the hardware configuration. For more details refer to the manual of your computer.

PC Connection

The drive connects to the motherboard of the host computer using an IDE interface cable. You
may connect the Drive as a Slave or Master device, depending on your computer.
To Install as a Master Drive
To install the drive as a Master, the jumper can be left as supplied from the factory.
Master drive (DVD
Master drive
Writable/CD-RW drive)
(Booting hard disk)
(Jumper left as Master)
Primary
connector
NOTE : A hard disk is normally installed as the Primary Master on the EIDE (ATAPI) interface. Other EIDE
peripheral devices such as hard drives and DVD Writable/CD-RW Drives are then set differently.
Master drive
(Booting hard disk)
- OR -
Motherboard
Primary
connector
Secondary
connector
5
C
S
M
S
A
L
Master drive (DVD
Writable/CD-RW drive)
(Jumper left as Master)
Slave drive
(Other IDE
drive)
Secondary
connector
