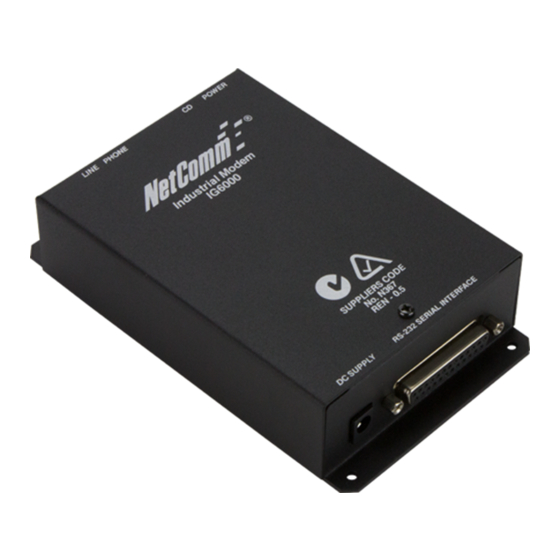

Industrial modem designed for unattended sites
Hide thumbs Also See for IG6000:

Advertisement

Industrial Modem
Designed for unattended sites
·
Designed to survive harsh environmental conditions for unattended operation,
such as remote monitoring.
·
Dual Watchdog Timers which can restart the modem if the modem crashes, starts
executing invalid code or has a power interruption.
·
Fully customisable.
·
A unique voice messaging system that can be used as a voice mail box or
answering machine.
·
Dial & Talk Alarm feature.
·
Automatic Power Off when modem is not used.
·
No internal batteries for non­volatile storage ensuring a long life.
·
Small rugged packaging.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IG6000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NetComm IG6000

  • Page 1 Industrial Modem  Designed for unattended sites ·  Designed to survive harsh environmental conditions for unattended operation,  such as remote monitoring. ·  Dual Watchdog Timers which can restart the modem if the modem crashes, starts  executing invalid code or has a power interruption. ·  Fully customisable. ·  A unique voice messaging system that can be used as a voice mail box or  answering machine. ·  Dial & Talk Alarm feature. ·  Automatic Power Off when modem is not used. ·  No internal batteries for non­volatile storage ensuring a long life. ·  Small rugged packaging.
  • Page 2: Table Of Contents

    Industrial Modem User Guide  Contact Information... 3  Technical Support... 3  TeleMarketing ... 3  Mailing List ... 3  Legal & Regulatory Information ... 4  Copyright Information ... 4  Australian Customer Information ... 4  New Zealand Customer Information... 4  Introduction... 6  Modem Controls and Indicators ... 7  Links (Internal controls)... 7  LEDS ... 7  Modem Features... 8  Power Down Feature ... 8  Dial and Talk Feature... 8  Voice Messaging System ... 9  How to Load the Voice Alarm Messages...
  • Page 3: Contact Information

    Industrial Modem User Guide  Contact Information  Please contact NetComm for help, information, sales enquiries or to join the NetComm Info Mailing List:  Technical Support  Web Page:  http://www.netcomm.com.au  Phone:  (02) 9870 2332  Fax:  (02) 9870 2619  TeleMarketing  Phone:  (02) 9424 2056  Fax:  (02) 9424 2525  Mailing List  For the latest sales and technical information, subscribe to the NetComm Info Mailing List by sending an e­mail to:  mailing­list@netcomm.com.au  In the body of the message enter the word:  subscribe  This will add your e­mail address to the NetComm Information Mailing List and you will be e­mailed news and  updates regularly. YML391­3A  3 ...
  • Page 4: Legal & Regulatory Information

    Industrial Modem User Guide  Legal & Regulatory Information  Copyright Information  This manual is copyright.  Apart from any fair dealing for the purposes of private study, research, criticism or  review, as permitted under the Copyright Act, no part may be reproduced, stored in a retrieval system or  transmitted in any form, by any means, be it electronic, mechanical, recording or otherwise, without the prior  written permission of NetComm Limited.  NetComm Limited accepts no liability or responsibility, for consequences arising from the use of this product.  NetComm limited reserves the right to change the specifications and operating details of this product without  notice.  NetComm is a registered trademark of NetComm Limited.  All other trademarks are acknowledged the property of their respective owners.  Australian Customer Information  Austel (The Australian Telecommunications Authority) requires you to be aware of the following information and  warnings:  Users may experience minor audio distortion when using this product.  This distortion may be generated by the low  bit rate for voice sampling.  Some of the modem default settings have been selected to comply with Austel technical specifications. If you  intend to change any default settings you must comply with the following rules:  1.  The modem must not answer an incoming call less than two seconds after the first ring signal. As a Òrule­of­  thumbÓ your modem should be set so it answers incoming calls after the second ring (ATS0=2).  2.  If Busy signal detection is switched off, the modem must not attempt more than two automatic redials and  must wait at least two seconds before redialling.  3.  If Busy signal detection is switched on, the modem must not attempt more than nine automatic redials and  must wait at least two seconds before redialling.  4.  If, after redialling the maximum number of times, the modem is still unable to establish a connection you must  wait 30 minutes before attempting to redial.  5.  The use of Bell standard 103 and 212A is not permitted in Australia. Use of these modes will cause your  modem to lose its permit status.  Changing the default values of the modem, in such a way as to cause your modem to operate in a non­compliant  manner when connected to a telecommunications network operated by a carrier, is contrary to the  Telecommunications Act 1991 and may result in penalties of $12,000.  New Zealand Customer Information  New Zealand Telecom requires you to be aware of these important warnings: ...
  • Page 5 Industrial Modem User Guide  If your modem ever suffers physical damage that causes its internal parts to become exposed, it should be  disconnected from the phone line immediately. The modem must then be repaired before reconnection to the phone  line is permissible.  Should it be necessary to physically move your modem, disconnect it from the phone line or earthing lead before  disconnecting the power connection. When reconnecting your modem, reconnect the power or earthing lead before  reconnecting it to the phone line.  Some parameters required for compliance with TelecomÕs PTC Specifications are dependent on the equipment  connected to the RS 232 port.  The connected equipment shall be set to operate within the following limits for  compliance with Telecom Specifications:  1.  Equipment connected to the RS 232 port shall be certified to meet the requirements of Reg. 18 of the New  Zealand Wiring Regulations 1976.  2.  When the user manually initiates a call, via equipment connected to the RS232 port, the equipment shall  operate within the following restrictions:  a.  Not more than 5 call attempts shall be made to the same number within a one hour period.  b.  There shall be at least 60 seconds between call attempts.  c.  Not more than a total of 10 call attempts shall be made to the same number for any single manual call  initiation.  d.  Automatic calls to different numbers shall be not less than 5 seconds apart.  FAILURE TO MEET THE ABOVE REQUIREMENTS MAY NEGATE THE USER RIGHTS UNDER THE  TELECOM TERMS OF SERVICE.  When operating in V.22bis or V.22 mode over some older telephone exchanges, it may be necessary to issue the  &G2 command.  Setting the S0 register (auto­answer) to S0 = 1 or to values greater than 5 will render this equipment non­compliant  with the Telepermit requirements.  This equipment does not provide a guard tone with the V.22 and V.22bis answer modes.  In some circumstances  this could cause interference with the telephone network signalling systems, and could result in lost calls.  Telecom  will not accept responsibility should such problems occur.  Such occurrences will be rare.  The preferred method is to use DTMF tones (ATDT...) as this is faster than pulse (decadic) dialling, and is  available on most New Zealand telephone exchanges.  Where DTMF is not available and decadic must be used,  your communications software must be set up to record numbers according to the following translation table as the  modem is not directly compatible with the New Zealand (10­N) Reverse dialling standard.  Number to be dialled  Number to program into computer ...
  • Page 6: Introduction

    Industrial Modem User Guide  Introduction  This manual provides a brief introduction to the Industrial SmartModem and gives an overview of the features and  commands available.  The IG6000 Industrial SmartModem has a SmartModem 336 core with additional features that make it suitable for  industrial and unattended operation.  Particular attention has been paid to ensuring that the modem restarts reliably  in the event of power interruption or internal malfunction.  The modem uses the latest generation Rockwell DSP  which will enable new features to be soft­uploadable when they become available. YML391­3A  6 ...
  • Page 7: Modem Controls And Indicators

    Industrial Modem User Guide  Modem Controls and Indicators  Links (Internal controls)  LK1  1  Set factory defaults  2  Normal  LK2  1  Reserved  LK3  1  Reserved  1  Reserved  LK4  LK5  Reserved  LK6  Reserved  LK7  Reserved  LK8  1  Power down disabled  2  DTR wakeup enabled  None  DTR wakeup disabled  LK9  Link connects RS232 shield to ground  PSTN  IN  PSTN  OUT  Leased Line  LEDS  DCD ­ Data Carrier Detect (Inner LED)  LED will glow when the modem detects a valid carrier signal from a remote modem.  PWR ­ Power (Outer LED) ...
  • Page 8: Modem Features

    Industrial Modem User Guide  Modem Features  Power Down Feature  S119 can be set with the number of seconds of no activity before the modem shuts down. The modem will not shut  down if DTR is asserted, if the modem is connected, any key on the keyboard is pressed or an alarm switch is on.  The modem will wake up if: ·  DTR is raised ·  there is a Ringing signal or ·  an alarm switch is asserted.  S119 defaults to 0 (power down disabled).  The modem draws almost no power when powered down.  Dial and Talk Feature  This feature enables a modem to alert, by spoken word, that an alarm situation at a remote site needs attention.  The  modems can be configured to dial up to 10 preset numbers and speak a stored message when one of two external  switches are closed.  These switches will connect to pins 12 and 7 (alarm 1) and pins 13 and 7 (alarm2) of the RS232 connector.  An  alarm condition is recognised when a short circuit is applied across either pair of pins, eg by use of a relay.  By default to modem will ring stored number 0 if either alarm switch is closed.  To set stored number 0 type:  AT&Z0 = nnnnnnnnnn  where nnnnnnnn is the phone number.  You may store up to 10 numbers using &Z0 to &Z9.  The numbers to ring for each alarm can be specified by the AT#ALM command:  AT#ALM1=1,4,8,3  Means than if alarm switch 1 is pressed the modem should ring the stored numbers 1 then 4 then 8 then 3.  AT#ALM2= 9  Means that if alarm switch 2 is pressed dial stored number 9. YML391­3A  8 ...
  • Page 9: Voice Messaging System

    Industrial Modem User Guide  Voice Messaging System  This feature can be installed into an IG6000 by downloading a vocabulary file to the modem to enable it to respond  to DTMF tones from a remote modem.  If this feature is enabled by using the #MEM command:  AT#MEM1  Modem will answer in voice mode after S110 rings if DTR is low  AT#MEM2  Modem will answer in voice mode after S110 rings regardless of DTR  AT#MEM0  All voice features off  Dial the modem and wait for it to answer. After the number of rings specified by S110 (default 4) the modem will  answer the call and respond with "Leave a Message after the Beep". If you key in a DTMF digit during the time  this message is played, the message will stop and you can complete entering the PIN number. The factory default  PIN number is 1234. This can be changed by using the new #PIN command.  AT#PINnn…nnn  where nn…nnn is the pin number. Up to 10 digits of PIN number can be specified  If you key in the correct PIN number the modem will say "OK" and ask for a command. You may key in 0 for a  menu of available functions.  Functions Available using DTMF keys  1­9  Play back stored message 1 to 20  *1  Record a new welcome message to replace "Leave a Message after the Beep"  *2  Record a new message  *3  Playback the current welcome message  *4  Report number of stored messages and the state of the alarm switches (ON or OFF)  *5  Play all messages  *6  Enable / disable answering machine record function  *9  Erase stored messages but retain the welcome message  *0  Erase all stored messages including the welcome message (return to factory default message)  ##  Hang up ...
  • Page 10: Remote Voice Setting Of Alarm Messages

    Industrial Modem User Guide  7.  Press the # button on the phone when your message is finished.  8.  Hang up the phone wait a few seconds.  9.  Ring the modem again and record a second message for Alarm #2 following steps 8 and 9.  Your  messages are now recorded.  10.  Reconnect modem to a terminal program and type AT#MCD to display the stored messages.  The duration  of the 2 messages you have recorded should be visible.  11.  If you wish the modem to answer calls in data mode type AT#MEM0&W in a terminal program to turn  off the voice answering function or AT#MEM1 if you want the voice answering function only when DTR  is low.  To redo the messages, erase the EPROMs using AT#MINI and record the messages again.  Remote Voice Setting of Alarm Messages  If you have installed the vocabulary file, use the procedure detailed in the VOICE MESSAGING SYSTEM to enter  the modem PIN number then use DTMF command *2 the record the first message then enter *2 again to enter the  second message. You may playback the messages immediately by keying DTMF 1 and DTMF 2 to verify that they  sound OK.  Hang up by keying ##. YML391­3A  10 ...
  • Page 11: Operating Modes

    Industrial Modem User Guide  Operating Modes  Asynchronous Mode  Asynchronous Mode is the normal default mode of the modem.  Control and monitoring is performed by executing  the AT commands using a PC fitted with suitable communications software.  Synchronous Operation  Your modem supports two synchronous modes.  Mode 1 allows operation with computers which support  asynchronous and synchronous communication on a single RS­232 port.  Mode 2 allows your modem to be  operated with dedicated synchronous terminals.  Although your modem can only operate over a single two­wire connection, it will still perform full­duplex  synchronous communication.  Half­duplex operation could be simulated by controlling the state of the RTS and  CTS signals.  Terminal Speeds  Your synchronous terminal or host should use the clock signals provided by the modem to synchronise transmit  and receive data.  The clock speed will represent the actual connection speed of the modem.  +  When synchronous mode is selected, your modem cannot operate in constant speed mode or use the error  correction or data compression facilities of the modem.  Only variable speed mode is available in synchronous  connections (this refers to the modem's terminal speed).  Line Speeds  Your modem supports a number of synchronous line speeds.  When operating in synchronous mode, your modem should always be configured with a locked, non­auto­ranging  B setting (this refers to modem line speed).  For V.34, the B setting only sets the maximum speed.  The modem will automatically determine the highest usable  speed for the line.  Synchronous Mode 1  Synchronous mode 1 is selected with the &M1 command. ·  Type:  AT&M1  <E>  Your modem will enter synchronous mode whenever it successfully connects to a remote modem.  You should also: ·  Type:  AT&D2  <E>  This allows hang up via your computerÕs DTR signal.  To return to asynchronous operation: ·  Type:  AT&M0  <E>  Synchronous Mode 2  Synchronous mode 2 is selected with the &M2 command.
  • Page 12: Leased Line Operation

    Industrial Modem User Guide  When the terminal asserts the DTR signal (DTR makes an OFF­ON transition), your modem will dial stored phone  number zero.    The phone number may contain dial modifiers.  To return to asynchronous mode: ·  Type:  AT&M0  <E>  Your modem will remain in asynchronous mode.  Leased Line Operation  A leased line, or private line, is a telephone line that permanently connects two or more locations.  The leased line  does not have any switching equipment associated with it.  Leased­line operation with the modem is selected with the &L command.  If you select leased line operation with the &L1 command, you must issue the ATA command to answer a call, and  the ATD command to initiate a call.  If you use &L2 or &L3 to select Auto leased line operation, you do not need to issue the ATA or ATD commands;  &L2 selects Originate mode automatically and &L3 selects Answer mode automatically.  To dial or answer, raise  DTR; to hang up and return to local command state, lower DTR.  +  You will require a special phone cable (available from your dealer) to connect your modem to a leased­  line socket.  The phone cable supplied with your modem is suitable for use with normal, dial­up, voice (PSTN)  lines.  Before commencing leased­line communications, it is recommended that a non­auto­ranging B setting be specified.  +  If error correction is required, select a Reliable mode, not an Auto­Reliable mode.  (See the \N command.)  Auto­ranging and fallback are disabled in leased­line mode.  Your modem will only attempt to connect using the  communications standard specified by the B command and the terminal speed.  Once a connection has been established, if your modem detects a loss of carrier it will continuously attempt to re­  establish the connection.  If the modem is in auto leased­line operation and this configuration has ben stored in memory using the AT&W  command, a timeout period of 10 seconds is available after power up to disable the leased­line mode via the AT&O  command.  Alternatively, this command can be sent with DTR low. YML391­3A  12 ...
  • Page 13: Modem At Commands

    Industrial Modem User Guide  Modem AT Commands  Your Industrial Modem ª has a number of specific commands that control and enhance its operation.  To access and  change these commands open a local terminal connection with your modem using your preferred communications  software, such as WinFax Pro, and type the letters AT followed by the specific command and press <Enter>.  The  AT commands are case insensitive and may be entered in either lower or capital letters.  n  indicates the default settings  Commands  Command  Description  A  Answer call  D  Dial number  H  Hang up modem  O  Enter On­line state  Dial Modifiers  Dial Digits  0­9, A, B, C, D, #, *  ,  Pause while dialling  F or ^  Disable calling tones  J  Initiate MNP 10 at 1200 bps (V.22)  K  MNP 10 cellular power level adjustment for this call  L  Redial last number  M  Initiate MNP 10 at 4800 bps (V.32)  P  Pulse dial number  R  Switch to answer mode  S=n  Dial stored number ÔnÕ (where n=0­9) ...
  • Page 14: General Commands

    Industrial Modem User Guide  General Commands  +++  ?  A/  n  B0  B1  B2  B3  B4  B5  B6  B7  B8  B9  B10  B11  B12  B13  B14  B15  B16  B17  B18  B19  B20  B21  B22  B23  B24  E0  n  E1  H0  H1  I0  I1  I2  I3  I4 ...
  • Page 15 Industrial Modem User Guide  M4  O1  O2  O3  O4  O5  O6  O7  P  n  Q0  Q1  Q2  R9  R14  R19  R28  R38  R57  R115  R230  Sn?  Sn=x  n  T  V0  n  V1  W0  W1  n  W2  X0  X1  X2  X3  X4  n  X5  X6 ...
  • Page 16 Industrial Modem User Guide  &F1  &F.  n  &G0  &G1  &G2  &K0  &K3  &K4  &K5  n  &K9  n  &M0  &N0  n  &N1  &P0  n  &P1  &S0  n  &S1  &S2  &T0  &T1  &T3  n  &T4  &T5  &T6  &T7  &T8  &V  &Vn  &V8  &Wn  &Yn  &Zn=x  #A0 ...
  • Page 17 Industrial Modem User Guide  #O1  #O2  #O3  #PIN=n  #R0  #V0  n  #V1  n  %B0  %B1  %C0  %C1  %C2  n  %C3  %Dn  %E0  n  %E1  %E2  n  %H0  %H1  %H2  %H3  %H9  n  %K0  %K1  %L0  %Ln  n  %M0  %M1  n  %N0  %N1  %N2  n ...
  • Page 18: Modulation Setting

    Industrial Modem User Guide  n  \J0  \J1  \Kn  \N0  \N1  \N2  n  \N3  \N4  \N5  \N6  \N7  \Q0  \Q1  \Q2  \Q3  \Q4  \Q5  \Q6  \S  \Tn  n  \V0  \V1  \V8  \V9  n  \X0  \X1  n  *C0  *C1  *Wttt...tt  Modulation Setting  +MS?  +MS=?  +MS=  <mod>  <automode> ...
  • Page 19: Distinctive Ring

    Industrial Modem User Guide  Distinctive Ring  The Industrial Modem is able to discriminate between three different types of rings.  This is useful if you purchase  the Telstra Duet service.  With Telstra Duet, two phone numbers are shared for one telephone line.  One number  can be used for Voice and the other number can be used for your Modem.  To enable the modem to answer only  when your modem number is dialled, issue the command: AT­SDR=4 S0=2&W.  AT­SDR=n,x  where n=0 to 7, default=0,  AT­SDR=0  Any ring detected and reported as "RING"  AT­SDR=1,1  Single ring detected and reported as "RING1"  AT­SDR=1,0  Single ring detected and reported as "RING"  AT­SDR=2,1  Double ring detected and reported as "RING2"  AT­SDR=2,0  Double ring detected and reported as "RING"  AT­SDR=3,1  Single and double ring detected and reported as "RING1"or"RING2"  AT­SDR=3,0  Single and double ring detected and reported as "RING"  AT­SDR=4,1  Triple ring detected and reported as "RING3"  AT­SDR=4,0  Triple ring detected and reported as "RING"  AT­SDR=5,1  Single and triple ring detected and reported as "RING1"or"RING3"  AT­SDR=5,0  Single and triple ring detected and reported as "RING"  AT­SDR=6,1  Double and triple ring detected and reported as "RING2"or"RING3"  AT­SDR=6,0  Double and triple ring detected and reported as "RING"  AT­SDR=7  Any ring detected and reported as "RING1"or "RING2"or"RING3"  +  Use AT­SDR=4  for Telstra's Duet service.   Do not set Auto Answer below 2 when Distinctive Ring is  enabled.
  • Page 20: Response Codes

    30  CONNECT 12000  31  CONNECT 14400  33  CONNECT 16800  34  CONNECT 19200  35  CONNECT 21600  36  CONNECT 24000  37  CONNECT 26400  38  CONNECT 28800  95  CONNECT 31200  97  CONNECT 33600  A full list of response codes is provided in your SmartModem Reference Guide included on the NetComm CD  ROM. YML391­3A  Description  Command accepted  Connection established  Incoming call detected  Carrier not detected  Command error  Dial tone has not been detected  The number dialled is busy  Silence not detected  The number dialled is ringing  Connected at 1200 bps  Connected at 2400 bps  Connected at 4800 bps  Connected at 7200 bps  Connected at 9600 bps  Connected at 12000 bps  Connected at 14400 bps ...
  • Page 21: S Registers

    Industrial Modem User Guide  S Registers  Reg  Range  0  0­255  1  0­255  2  1­255  3  0­127  4  0­127  5  0­127  6  4­7  7  1­60  8  1­7  9  1­255  10  1­255  11  70­254  12  3­255  16  0­8  18  0­255  25  0­255  26  0­255  27  0­255  29 ...
  • Page 22: Specifications

    Industrial Modem User Guide  Specifications  Dimensions ·  Height: 31mm ·  Length: 218mm ·  Width: 122mm  Communications ·  ITU­T 33600bps ·  ITU­T 31200bps ·  ITU­T  V.34  (2400­33600bps) ·  ITU­T V.32bis (14400bps) ·  ITU­T V.32bis (1200bps) ·  ITU­T V.32 (9600bps) ·  ITU­T V.32 (7200bps) ·  ITU­T V.32 (4800bps) ·  ITU­T V.22bis (2400bps) ·  ITU­T V.22 (1200bps) ·  ITU­T V.23 (1200/75bps) ·  ITU­T V.21 (300bps) ·  Bell 212A (1200bps) ·  Bell 103 (300bps) ·  ITU­T V.17 (fax 12,000­14,400bps) · ...
  • Page 23: Data Compression

    Industrial Modem User Guide  ·  Error Correction ·  V.42, MNP 2­4, MNP10  Data Compression ·  V.42bis, MNP 5  Encryption ·  DES 64­bit Cypher Feedback (Aust only) ·  SuperSecure ·  Failsafe Feature ·  Hardware and firmware watchdog circuitry resets modem in the event of a lockup condition  Environmental ·  Operating: ­10¡ to +50¡ C  Humidity ·  Up to 95% non­condensing  Build Options ·  9­38 V DC operation ·  HOST interface TTL levels via 20 way dual row pinstrip connector. YML391­3A ...
