Toa DM-1200 Instruction Manual

MICROPHONE

GENERAL DESCRIPTION

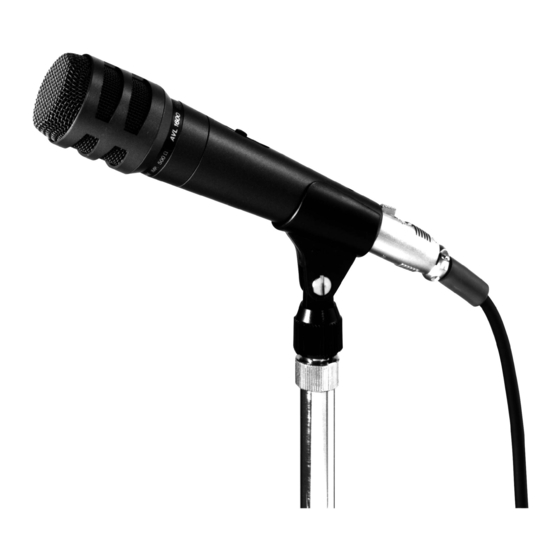

The TOA DM-1200 series microphones are unidirectional microphones provided consistently clear sound reinforcement
suited for hand-held speech use. This microphone body is rigidly constructed of diecast-zinc, and designed to reduce
switching and handling noises. In addition, the DM-1200D comes with a remote control function to activate amplifier's
power or chime unit. Refer to the amplifier's instruction manual for details of the remote function and connection.

APPEARANCE

DM-1200
Phone Plug

SPECIFICATIONS

Model
Type
Directivity
Rated Impedance
Rated Sensitivity
Frequency Response
Connection Cable
Cable Length
Terminal of Cable
Weight
Dimensions
Talk Switch
Remote Switch
Finish

Standard Accessory

*Specifications are subject to change without notice.
DM-1200D
5-Pin DIN Plug
DM-1200
Moving coil microphone
Unidirectional
unbalanced
-55 dB (1 kHz 0 dB=1 V/Pa)
50Hz~12kHz
1-core shielded cable
10m (32.8ft.)
Phone plug
265 g (0.58 Ib.) (without connection cable)
39.5X163 mm ( 1.6X6.4 in.)
Short-off circuit type, slide switch
None
Body: Zinc-diecast, painted Metallic Gray
Head: Aluminum-diecast and Zinc plated steel wire, painted Metallic Gray
Microphone holder (W5/16",W5/8",W3/8")
TOA Corporation

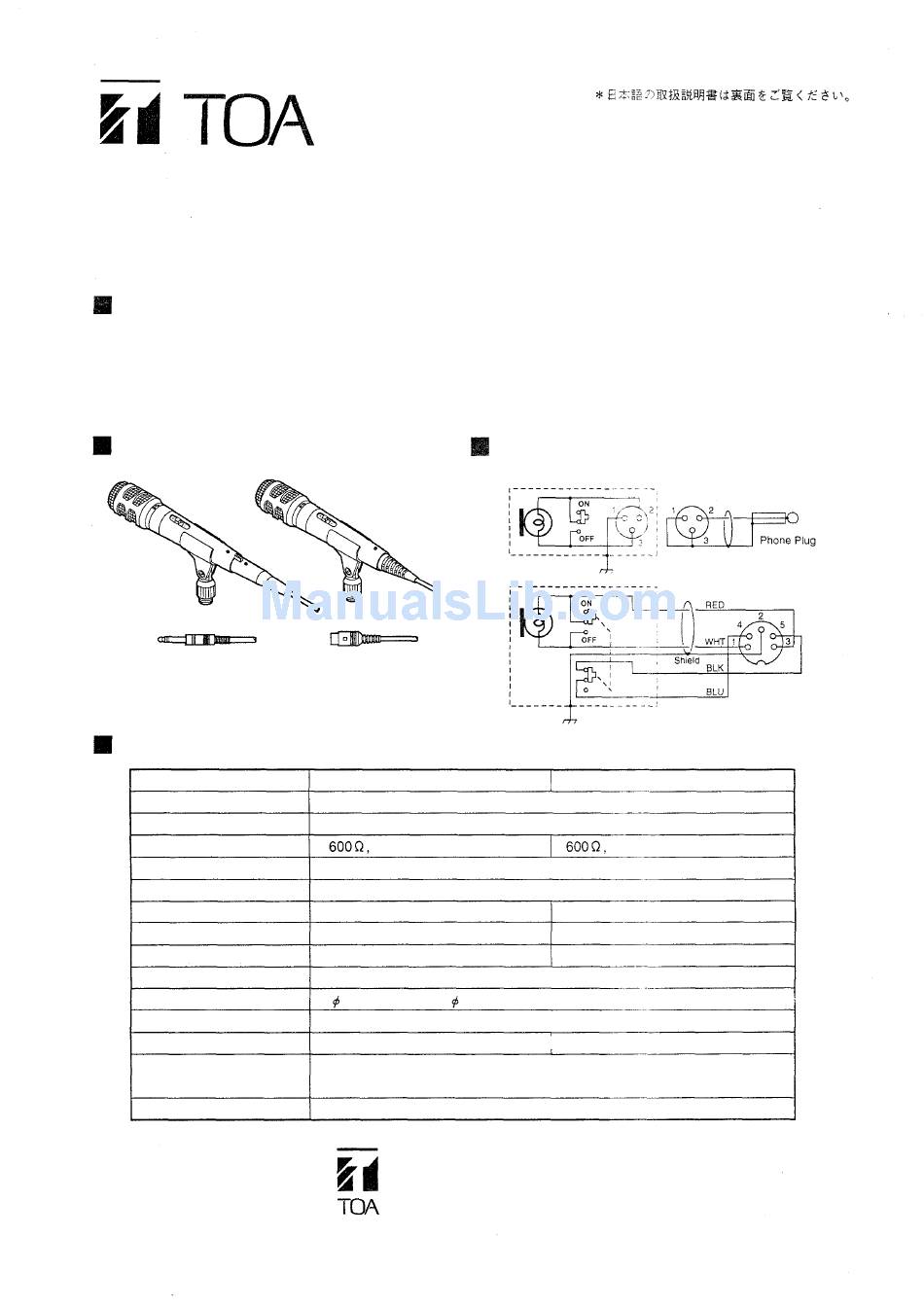

INSTRUCTION MANUAL
DM-1200
DM-1200D

CIRCUIT DIAGRAMS

DM-1200
DM-1200D
DM-1200D
balanced
2-core shielded plus 2-core cable
5m (16.4ft.)
5-pin DIN plug
| Slide switch (interlocked with talk switch)
5-Pin DIN Plug
