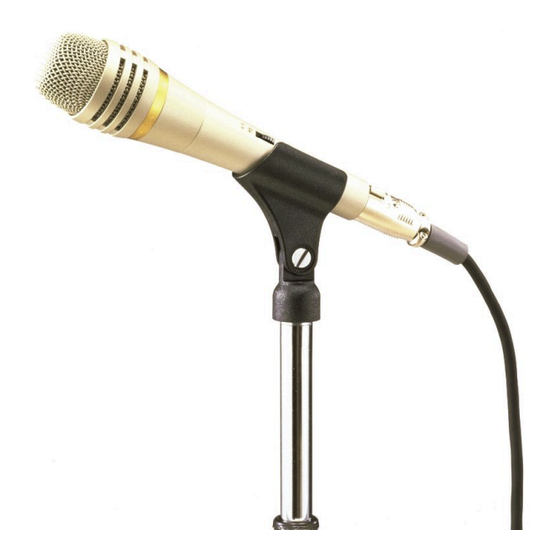

The DM-1500 is designed for both voice and speech applications.
Specifications
Controls
Frequency response
Connection
Rated impedance
Controls
Frequency response
Microphone type
Directivity
Sensitivity
Connection
Rated impedance
Finish
We supply sound,
not equipment.
www.toa.eu.
Talk switch: Short-off type, slide on/off switch
70 Hz - 15 kHz
3-pin XLR jack
600 Ω
Talk switch: Short-off type, slide on/off switch
70 Hz - 15 kHz
Dynamic microphone
Cardioid
-56 dB (1 kHz 0 dB = 1 V/Pa)
3-pin XLR jack
600 Ω
Zinc, die-cast, paint, metallic gold,
DYNAMIC MICROPHONE
©TOA Electronics Europe GmbH | Data subject to change without notice.
DM-1500
Article number:DM-1500
EN, 2022/07/29
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Toa DM-1500
Summary of Contents for Toa DM-1500
- Page 1 DM-1500 DYNAMIC MICROPHONE The DM-1500 is designed for both voice and speech applications. Article number:DM-1500 Specifications Controls Talk switch: Short-off type, slide on/off switch Frequency response 70 Hz - 15 kHz Connection 3-pin XLR jack Rated impedance 600 Ω Controls...
- Page 2 DM-1500 DYNAMIC MICROPHONE Appearance Phone plug Shield Ø23 U5/16 Circuit Diagram SCALE:1/2 UNIT:mm We supply sound, not equipment. ©TOA Electronics Europe GmbH | Data subject to change without notice. www.toa.eu. EN, 2022/07/29...
