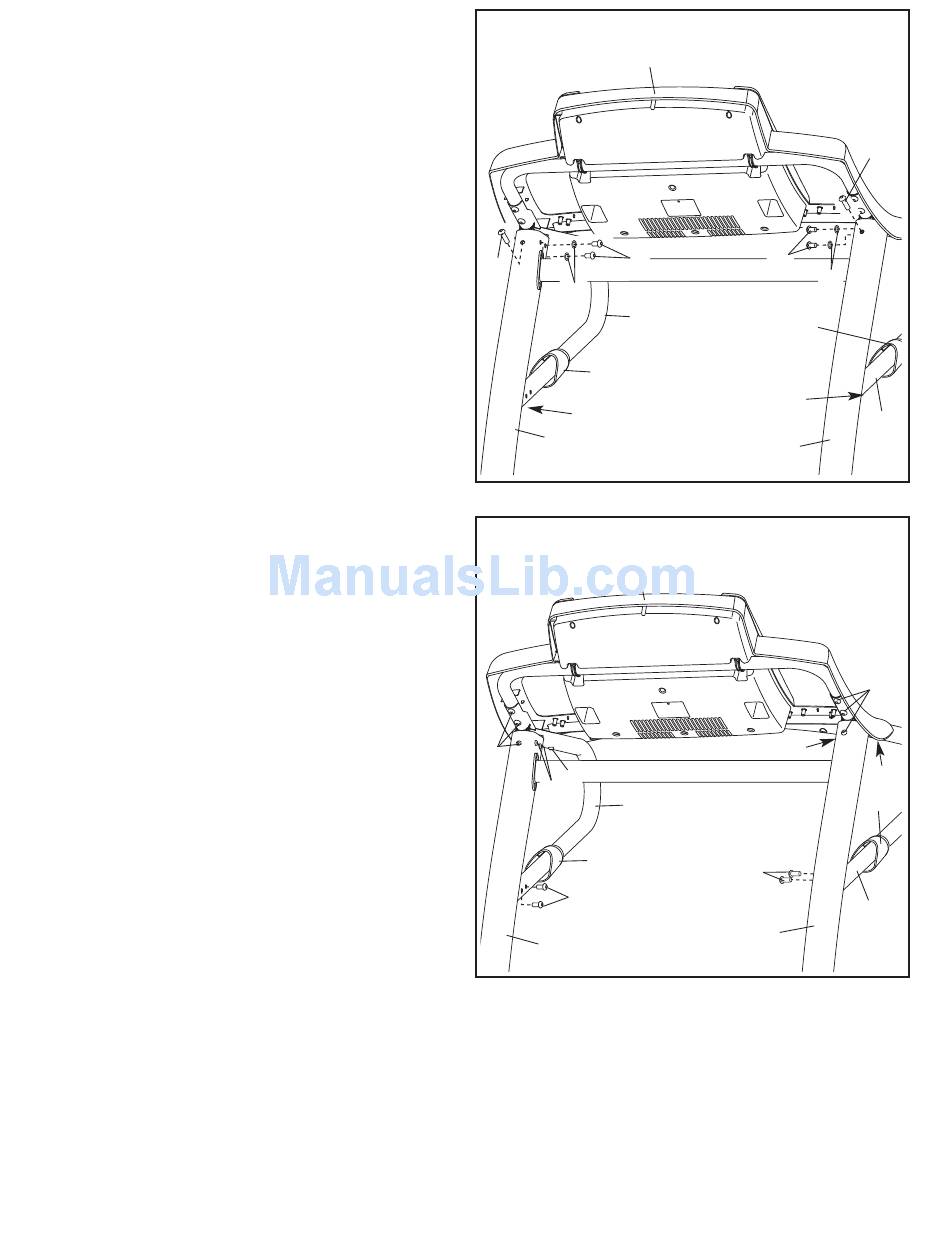

11. Slide a Handrail Cover (77) onto the lower end
of each Handrail (78, 79).
Set the console assembly on the Left and Right
Uprights (82, 83). At the same time, insert the
lower end of the Handrails (78, 79) over the
brackets on the Uprights. Be careful not to
pinch any wires. Insert the excess wire into the
Right Upright.
Start four 5/16" x 3/4" Patch Bolts (5) with four
5/16" Star Washers (9) into the Uprights (82,
83). Then, start two 5/16" x 1 1/2" Patch Bolts
(4) into the Uprights. Do not tighten the Patch
Bolts yet.
12. Start two 1/4" x 1/2" Patch Bolts (8) into the
lower ends of both Handrails (78, 79). Tighten
all sixteen Patch Bolts (4, 5, 8).
Slide the Handrail Covers (77) against the
Uprights (82, 83).
See step 8. Tighten the four 1/4" x 5/8" Patch
Bolts (112).
11
Console
Assembly
5
4
9
79
77
Bracket
83
12
Console
Assembly
4
8
5
79
77
8
83
12
4
5
9
77
Bracket
78
82
4
5
8
77
8
78
82
