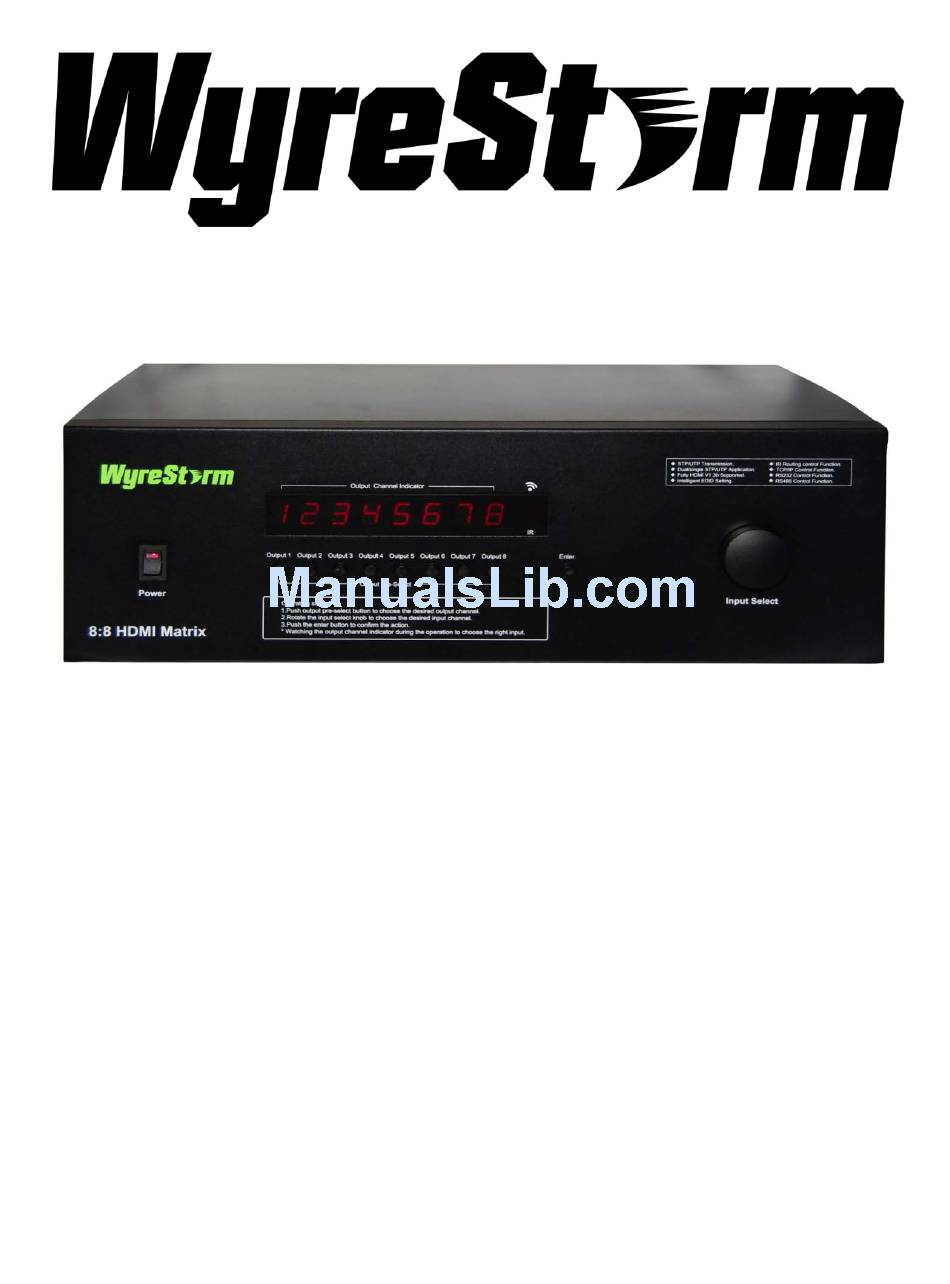

HDMI 8 x 8 Matrixes (Routing Type)
Model No. MAT8T820 (P/N of this Instructions is INS- MAT8T820)
Features
1) Allows up to eight HDMI audio/video devices to be independently switched to eight
HDMI monitors, HDTVs, or projectors.
2) The eight outputs could show the same or different source simultaneously no matter the
source is HDCP or not.
3) Each output includes one HDMI A type connecter and a set of dual RJ-45 connecters as
the second mirrored HDMI output. The two outputs work simultaneously. The UTP
output supports both dual and single cat5e/cat6
4) Reading and saving EDID function from displays.
5) Support high definition resolutions, including 1080p, 1080i, 720p and other standard
video formats.
6) Each port supports both HDMI and DVI inputs.
7) With extra infrared extension receiver.
8) Six switching modes: panel buttons, local IR, IR call back from remote locations, RS232,
RS485 and Ethernet.
9) Eight IR emitters to control the HDMI sources.
10) HDCP compliant.
11) HDMI 1.3 version.
Advertisement
Table of Contents
Related Manuals for Wyrestorm MAT8T820
Summary of Contents for Wyrestorm MAT8T820
- Page 1 HDMI 8 x 8 Matrixes (Routing Type) Model No. MAT8T820 (P/N of this Instructions is INS- MAT8T820) Features 1) Allows up to eight HDMI audio/video devices to be independently switched to eight HDMI monitors, HDTVs, or projectors. 2) The eight outputs could show the same or different source simultaneously no matter the source is HDCP or not.
- Page 2 Please keep this manual for future reference. NOTICE Wyrestorm reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE: 1) DO NOT EXPOSE THIS UNIT TO WATER OR MOISTURE OF ANY KIND.
-
Page 3: Table Of Contents
Contact Information INTRODUCTION Wyrestorm’s MAT8T820 is an 8-by-8 DVI/HDMI true matrix. It allows any of the eight source (Blue-Ray player, HD DVD player, satellite receiver, game system, etc.) to be routed to any of the eight displays simultaneously, no matter the source is HDCP or not. Users can choose several different ways to control the matrix: by using infrared extension receiver, RS232, RS485, LAN, and supplied remote control. -
Page 4: Package Contents
Main Unit. P/N_ MAT8T820. 1) 12VDC Power Supply. P/N_VDC1204 2) Remote. 3) IR extension cable. 4) USB to UART cable. 5) Operating Instructions. P/N_INS MAT8T820. 6) Mounting ears. *PART NUMBER (Abbreviation as P/N). PANEL DESCRIPTIONS Front panel 1) Power switch. -
Page 5: Connect And Operation
UTP and connected to the router or switcher via direct UTP. CONNECT AND OPERATION 1) Connect the HDMI input sources (such as HD-DVD, PS3, STB etc) into MAT8T820 2) Connect the standard HDMI outputs (such as HD-LCD, HD-DLP) into MAT8T820. - Page 6 6) Power on the input source you want to show. (Keep the unused input power off, otherwise it may interfere the normal display.) 7) Connect the power supply into MAT8T820 8) Turn on the power, when the LED panel stops flashing circularly, the initialization of the matrix is ready.
- Page 7 3) Press the ‘Enter’ button to confirm the action. Then the LED stops blinking.
- Page 8 Control via RS232. The Interface of _COMCTL MAT8T820 The Message Window...
- Page 9 Receive Window The “receive window” will show the message received from MAT8T820. When you click the Control Buttons (see step 4) or send Control Command (see 2.3) to MAT8T820, it will send out the message about “operation results” as seen below: Status Button Click this button to read the status of MAT8T820.
-
Page 10: The Com Status
Click this button to set the switch mode: Quick switch or Normal switch. When you click this button it will read the current mode of MAT8T820, if you want to change the mode, select the mode you want and click OK. -
Page 11: Control Command Format
Control code, ‘↙’ is carriage return. For example: (hex: 63 69 72 20 33 39 0D 0A “cir 39↙” , when the MAT8T820 received this command ,it will change the Outport4 status to the next input port. ( “c”-0x63,”I”-0x69,”r”-0x72,” “-0x20,”3”- 0x33,”9”-0x39, ‘↙’-0x0d0a) -
Page 12: Control Code
The return status format is as follows: “s” Output port Input port 1st byte 2nd byte 3rd byte For example, if you send “cir 44.” to MAT8T820, if succeeds, it will feedback “s55”, meaning OutPut5 selects InPut5. -
Page 13: Read Status Command
+ ‘_’ + ‘↙’ “bc” is the key word, ‘_’ is Space, ‘↙’ is carriage return. When you send the read status command to MAT8T820, if successful, it will feedback the status of all outputs. When you send “Bc” to MAT8T820, if successful, it will feedback the current status of MAT8T820. -
Page 14: Web Password Reset
The command length is 4 bytes. rpw+ ‘.’ “rpw” is the key word , ‘.’ is carriage return. When you send the Web password reset command to MAT8T820, if successful, it will feedback "rpw", and the web password will be set as “0000000000”. - Page 15 Picture 3 3) Double click the device name or right click and click the ‘open’. A web browser will be shown. The default password is "0000000000", input the password and login. The device controller page will be displayed. Picture 4...
- Page 16 The right area is for device controlling. Click these buttons to control the device. It is the same as using the remote controller. The left area shows which input ports are being chosen by the output ports. 4) When ‘Assign IP’ is displayed, it means that the device has not been assigned IP automatically.
- Page 17 ATTENTION: In this application the assign IP is different from SetIP in COMCTL. SetIP in COMCTL is used to save the IP address in flash, when the MAT8T820 power is on, it will read the IP from flash and set it as static IP. Use the Assign IP function when the automatically obtain IP address fails.
-
Page 18: Instruction Of Tx Ir
Instruction of TX IR The sequence of "TX IR1,TX IR2,TX IR3,TX IR4,TX IR5,TX IR6,TX IR7, TX IR8" one-to-one correspond with "HDMI INPUT1,HDMI INPUT2,HDMI INPUT3,HDMI INPUT4, HDMI INPUT5,HDMI INPUT6,HDMI INPUT7,HDMI INPUT8". When an output has been chosen for a certain input, the call-back IR signal of RJ45 on this output port will choose the corresponding "TX IR"... - Page 19 MIX FL. Push the ‘ENTER’ button. MAT8T820 goes into normal working condition. For example: Copy the EDID from the display connected to OUTPUT1 to INPUT8. 1) Connect the display to OUTPUT1 of MAT8T820. Power on MAT8T820 and the display. 2) Switch the matrix to connect OUTPUT1 to INPUT8.
- Page 20 4) If the EDID COPY succeeds, the LEDs will show ‘MIX OK’; otherwise the LEDs will display ‘MIX FL’. Then push the ‘ENTER’ button, MAT8T820 goes back to normal working condition. 5) Succeed, LED shows MIX OK...
-
Page 21: Specification
Output Video HDMI1.2 and HDMI 1.3 Maximum Transmission Distance <15m (If needed, HDMI extender is optional) UTP cable Transmission Distance <40m (use Wyrestorm UTP receiver, if need longer distance, Wyrestorm UTP repeater should be used) Power Consumption 35wtts (Max) Dimensions 282.58mmD×438.15mmW×141.2mmH/... -
Page 22: Maintenance
If your product does not work properly because of a defect in materials or workmanship, Wyrestorm (referred to as “the warrantor”) will, for the length of the period indicated as below, (Parts and Labor (2) Year) which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace... - Page 23 Please contact our customer service department describing the issue, and a new product will be sent to you immediately with an applicable charge. Please place the damaged product in the new package and send back with the return shipping label provided. Once the damaged product is received, a reimbursement will be provided.
- Page 24 Thank you for your purchase. We appreciate your business. Please contact us with your question and comments. WyreStorm 6755 Buckles Cove Memphis, TN 38133 1-877-HDMI WYRE – Toll Free 901-363-0111 – Office Phone 901-363-0115 – Office Fax Email: info@wyrestorm.com Website: www.WyreStorm.com...
