CYBEX VR3 Leg Extension Owner's And Service Manual page 43

ITEM QTY PART NO.
1 1 11040-366
2 1 11040-367
3 2 11040-369
4 2 11040-370
5 1 11040-427
6 1 11040-426
7 1 11040-424
8 1 11040-416
9 1 11040-425
10 1 BH030207
11 1 4700-251
12 4 BR030209
13 2 BR030220
14 1 HP016820
15 1 HP266765
16 2 HS720004
Cybex VR3 12050 Leg Extension Owner's Manual

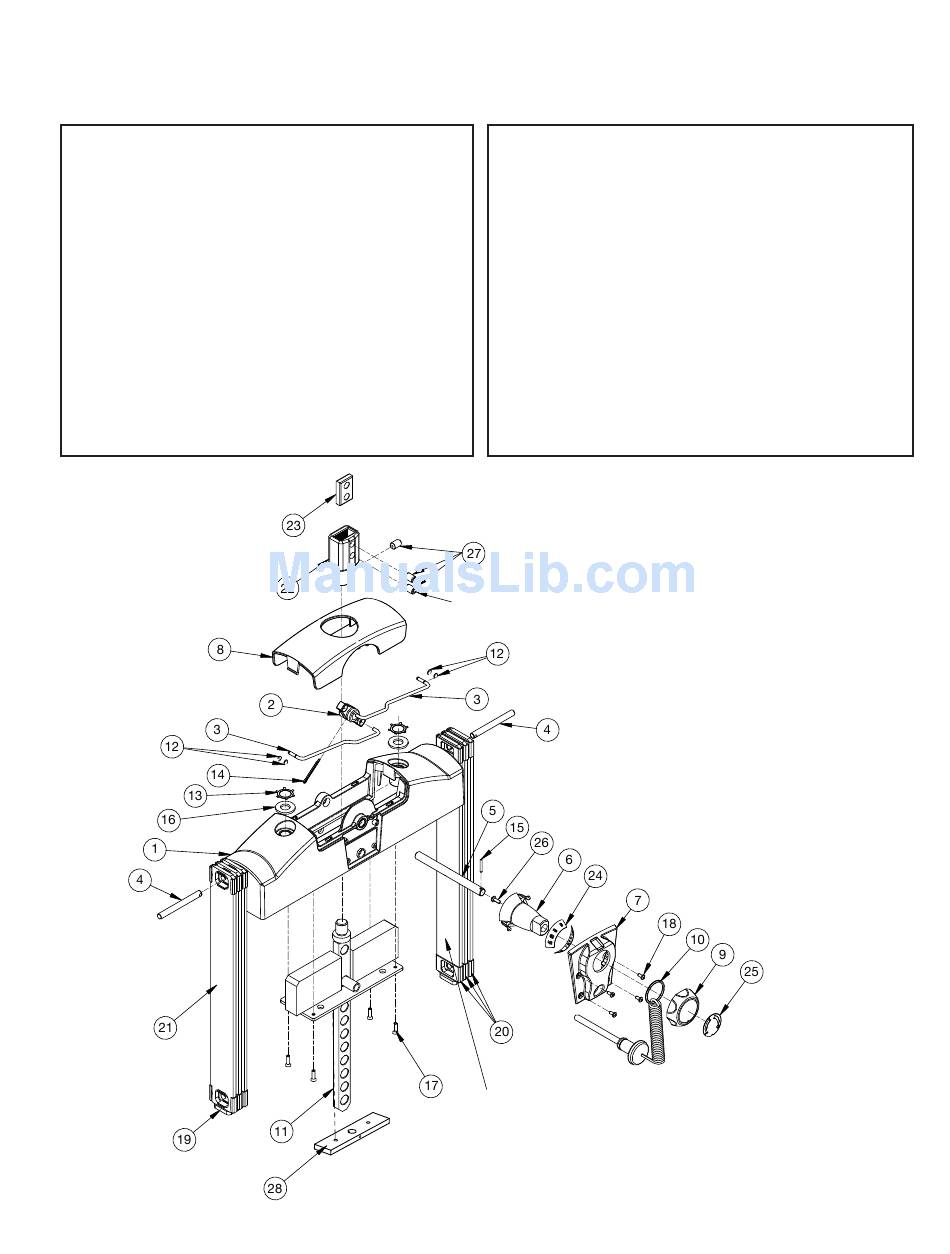

Top Weight Assembly
(Light Stack and Heavy Stack Configurations)
DESCRIPTION
Top Weight Assembly, Molded
Hub, Molded
Rod, Linkage
Pin
Rod
Stem
Cover Plate
Cover, Top Weight
Knob
Pin, Weight Selector
Lifting Post 15
External Retaining Ring .188
Internal Retaining Ring 1.250
Cotter Pin .125 X 1.25
Roll Pin, .125 X .938
Felt Washer, .641 1.250 .125 T
ITEM QTY PART NO.
17 4 HT562715
18 4 HT582510
19 2 11040-409
20 12 11040-572
21 6 11040-573
22 1 11040-216
23 1 11040-301
24 1 11040-428
25 1 11040-429
26 1 HT552512
27 3 HY740000
28 11 4000C101
28 14 4000C101
29 1 12050-007
30 1 4701-013
TOURQUE SET SCREWS
300-350 IN./LBS
NOTE: Increment weights are located
in the increment weight channel.
See main assembly.
DESCRIPTION
Tap SC NO 10 x .750 F Phil
Tap SC NO 10 x .375 PN HD
Phil
Molded Bumper Pad
Guard, Increment Weight
Weight Increment
Belt Clamp
Clamp Block Insert
Adjustment Decal
Rotaion Decal
Screw, Pan HD Phil HD Self
Tapping 8-16 x .50, Type WB
Set Screw
Weight Plate Light Stack
Weight Plate Heavy Stack
Light Weight Pack (Not Shown)
Heavy Weight Pack (Not Shown)
Service
Page 6-13
