Installation - Wiring

Wiring Requirements

WARNING
Electrical shock hazard can cause severe
personal injury, death or substantial prop-
erty damage. Disconnect power before
installing and/or servicing.
1. All wiring must be a minimum of 18 gauge
and installed in accordance with:
• U.S.A. - National Electrical Code and any
other national, state or local code require-
ments having jurisdiction.
• Canada - C.S.A. C22.1 Canadian Electrical
Code Part 1 and any other national, provin-
cial and local code requirements having
jurisdiction.
2. If original wire supplied with appliance must
be replaced, Type 90ºC or its equivalent must
be used.
3. Refer to control component instructions
packed with boiler for application information.
4. An optional service switch may be installed in
water heater electrical circuit. This switch
would only shut off the water heater, not the
home heating system. Do not shut off water
heater if there is a chance of freezing.
5. All electrical contacts shown do not have
power applied - off the shelf condition. See
pages 15 thru 18.

Circulators

• Priority relay must be sized for total amp draw
of all circulators.

Zone Valves

• Transformer must be sized for maximum load
of all zone valves.
Snap Set Connection
• For easy wiring between water heater thermo-
stat and boiler controls see Installation Wiring
section pages 15 through 18.
• Make sure snap set is firmly snapped together
after wiring.
15

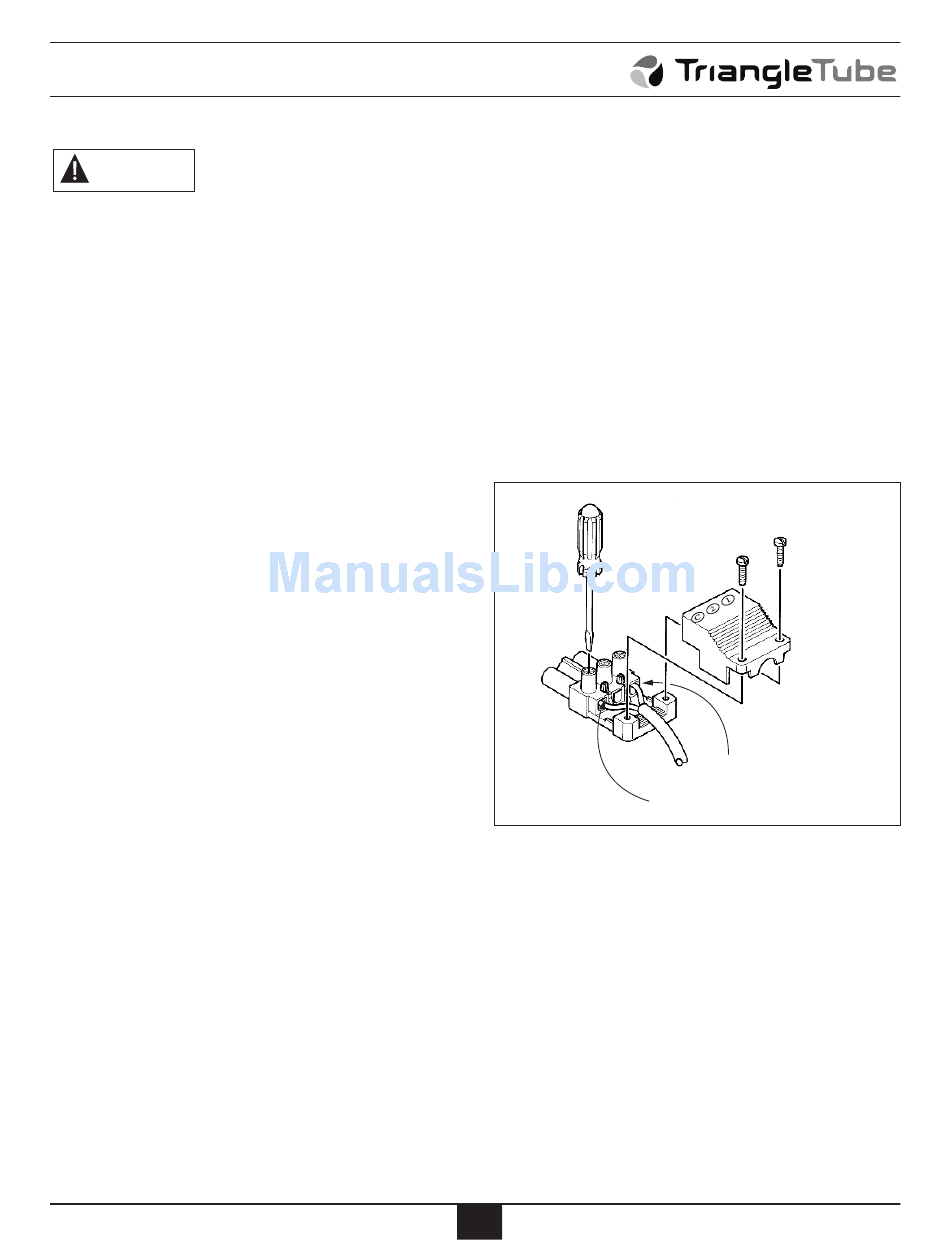

Snap Set Wiring
Connect to
outer 2 terminals
