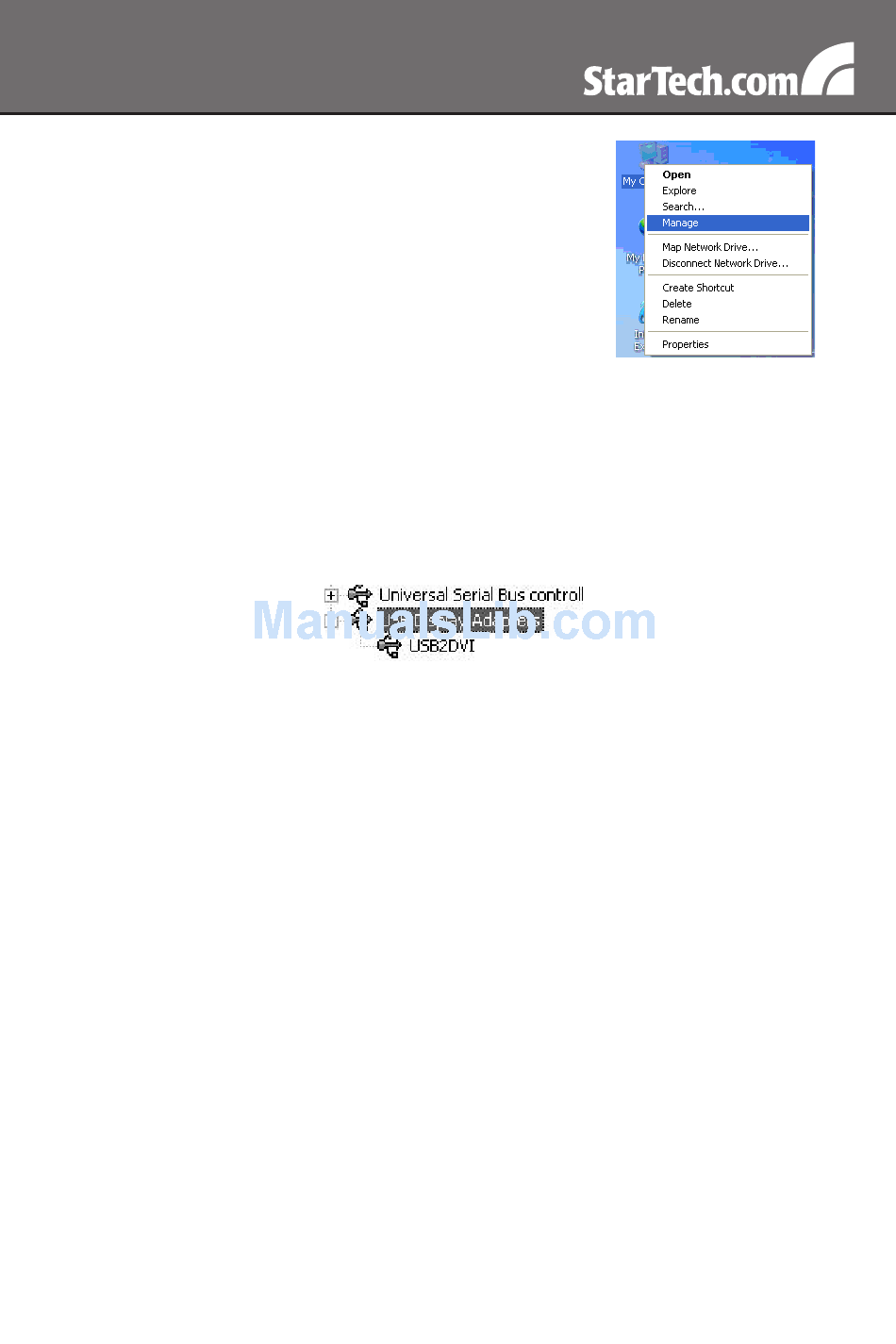

5. To verify the installation, right-click on "My
Computer" and select Manage to open the
Computer Management window.
6. In the left pane of the Computer Management window, click on
Device Manager.
7. In the right pane of the Computer Management window, click on
Universal Serial Bus Controllers, and ensure that the USB Video
Adapter is listed underneath. Under the Sound category, will be a
CMedia USB Audio device.
8. Additional (up to 4) HDMI Video Adapters can now be connected to
the computer system. Each device will add additonal entries to the
Device Manager. Note that only one audio device can be used by
Windows at a time. So audio will only be output to one of the HDMI
Video Adapters.
OPTIONAL: Connect any USB peripherals to be shared along with
the HDMI Video Adapter, into the available USB hub ports on the unit.
They will appear as directly connected to the computer system.

Hardware Installation for Ethernet

1. Set the EDID slide switch to the ON position.
2. Connect the power adapter to the HDMI Video Adapter. The Power
LED will light up steady.
3. Slide the "Input" selection switch to Ethernet.
4. Connect the RJ45 connector on the HDMI Video Adapter to an
available Ethernet port on the network equipment, or directly to the
computer system.
