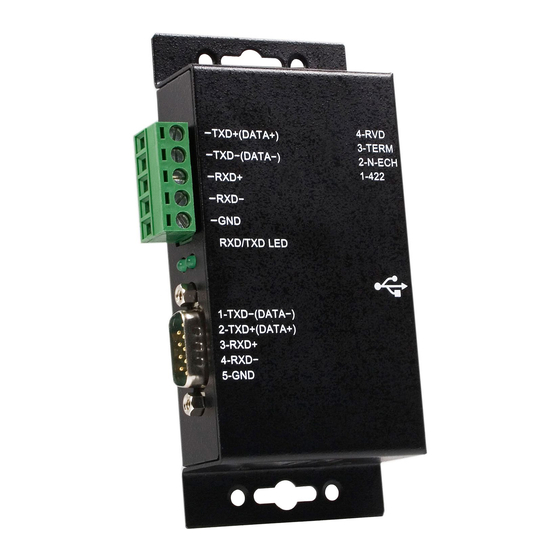

1 Port Industrial USB to RS422/RS485 Serial
Adapter
ICUSB422IS
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 11/11/2011
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com ICUSB422IS
Summary of Contents for StarTech.com ICUSB422IS
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 11/11/2011...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ...................1 Features ................................ 1 Package Contents ............................. 1 Hardware Guide ..................2 Front Panel ..............................2 Rear Panel ..............................2 Switch Settings ..................3 Switch Description ............................ 3 Installing Drivers ..................4 Male DB9 Pin Assignments and Cable Wiring ........5 DB9-Male Pin Assignment ........................ -
Page 4: Introduction
Introduction Thank you for purchasing the ICUSB422IS USB to RS422/485 Converter with Isolation. This unit is an intelligent expansion module that connects to a PC or server via the Universal Serial Bus (USB), providing high-speed serial connectivity. The RS485 port supports Auto-Tranceiver-Turn-Around, to support applications that control the transmitter driver. -
Page 5: Hardware Guide
Hardware Guide Front Panel DB9 Male Connector 5-Pin Terminal Blocks RS422/485 RXD (down) and TXD (up) Activity LEDs Note: The DB9 Male Connector at the Terminal Blocks are connected to the same signals internally. They are not two individual ports. As such, the signals coming from the Terminal Blocks and the DB9 connector are identical Rear Panel... -
Page 6: Switch Settings
Switch Settings The default settings on the ICUSB422IS are set at 2-wire RS-485 mode. If you require RS422, change the mode pin to the “422” position (ON). Maintain all other settings unchanged. Switch Description Switch Switch Switch Description Pin #... -
Page 7: Installing Drivers
Installing Drivers The RS-422/485 Adapter Cable can be hot-plugged to the USB port of your computer according to the USB specifications. It supports Linux, Mac OS 9.8, X, and X (intel), Windows 98 ME, 2000, 2003, XP, and Vista™. The drivers for each can be found in the corresponding folder on the driver CD. -
Page 8: Male Db9 Pin Assignments And Cable Wiring
Male DB9 Pin Assignments and Cable Wiring DB9-Male Pin Assignment Pins Signal TXD- (DATA-) TXD+ (DATA+) RXD+ RXD- NC= No Connection 5-Pin Terminal Blocks Pin Assignment Instruction Manual... -
Page 9: Rs-422 Cable Wiring
RS-422 Cable Wiring DB9 (RS422 to USB Cable) DB9 (RS422 Device) 1. TXD- 1. TXD- 2. TXD+ 2. TXD+ 3. RXD+ 3. RXD+ 4. RXD- 4. RXD- 5. GND 5. GND RS-485 Cable Wiring DB9 (RS485 to USB Cable) DB9 (RS485 Device) 1. -
Page 10: Specifications
Specifications Type Specifications Connectors USB type B, DB9 Male 1 RS422/485 (for DB9M or Number of Ports Terminal Blocks) TXD+, TXD-, RXD+, RXD-, RS-422 Signals RS-485 Signals (2-wire) DATA+, DATA-, GND Baud Rate 300 bps to 921.6Kbps Data Bits Stop Bits 1, 2 None, Even, Odd, Mark, Parity... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
