Instruction Manual

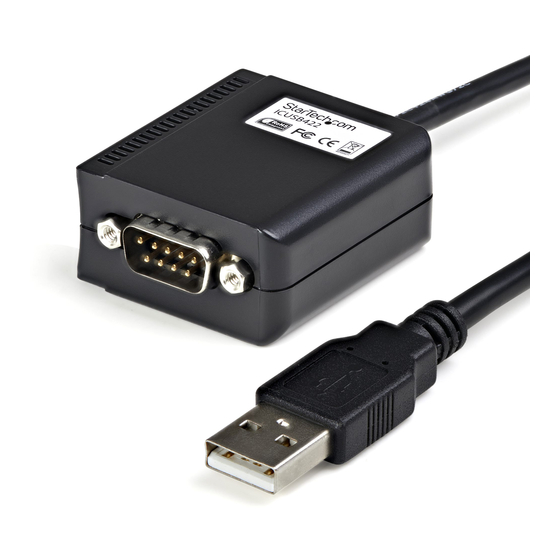

6ft RS422 RS485 USB to Serial Cable
Adapter w/ COM Retention
ICUSB422
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 11/05/2012
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com ICUSB422
Summary of Contents for StarTech.com ICUSB422
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 11/05/2012...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................1 Hardware Installation ..........................1 Driver Installation ............................1 Verifying Installation ..........................2 DIP Switch Settings ................2 DB9 Pin Assignment ................3 Specifications ..................4 Technical Support ..................5 Warranty Information ................5 Instruction Manual... -
Page 4: Introduction
Introduction Packaging Contents • 1 x USB to Serial Adapter Cable • 1 x Driver CD • 1 x Instruction Manual System Requirements • Available USB port ® ® • Microsoft Windows 98SE/ME/2000/XP/Server 2003/Vista/7, ® or Linux kernel 2.4.x or later Installation Hardware Installation 1. -
Page 5: Verifying Installation
3. If a Windows Security dialog window appears, click the “Install this driver software anyway” option to proceed. 4. Once the driver is installed, click the Close button. Verifying Installation Windows 2000/Server 2003/XP/Vista/7 From the main desktop, right-click on “My Computer” (“Computer” in Vista), then select Manage. -
Page 6: Db9 Pin Assignment
• NOTE: In “422” mode, the ECHO setting is not used. • The Echo mode is useful for detecting if there is data collision occurring on RS- 485. If the echoed data is not equal to the transmitted data, then data collision is occurring. -
Page 7: Specifications
Specifications Bus Interface USB 2.0 1 x USB type A Connectors 1 x 9-pin DB9 male Maximum Baud Rate 921.6Kbps Termination Resistor 120 Ohm Chipset FTDI FT232RL RS-422 (4-wire) Serial Protocol RS-485 (2-wire) Power Consumption 110mA Windows 98SE/ME/2000/XP/Server Compatible Operating Systems 2003/Vista/7, or Linux Instruction Manual... -
Page 8: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 9 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
