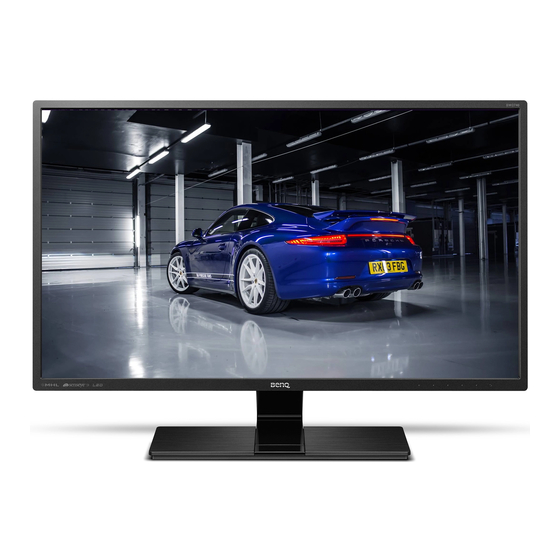

  • Page 1 EW Series LCD Monitor User Manual...

  • Page 2: Copyright

    Copyright Copyright © 2013 by BenQ Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of BenQ Corporation.

  • Page 3: Care And Cleaning

    BenQ ecoFACTS BenQ has been dedicated to the design and development of greener product as part of its aspiration to realize the ideal of the "Bringing Enjoyment 'N Quality to Life" corporate vision with the ultimate goal to achieve a low-carbon society. Besides meeting international regulatory...

  • Page 4: Table Of Contents

    How to use the phone holder ......................14 How to detach the stand and the base ....................15 Getting the most from your BenQ monitor ..............16 How to install the monitor on a new computer ................17 How to upgrade the monitor on an existing computer ..............18 How to install on Windows 8 system ....................

  • Page 5: Getting Started

    Getting started When unpacking please check you have the following items. If any are missing or damaged, please contact the place of purchase for a replacement. BenQ LCD Monitor Monitor Stand Monitor Base Quick Start Guide CD-ROM Power Cord (Picture may differ from product supplied for your region.)

  • Page 6: Audio Cable

    Video Cable: D-Sub Video Cable: HDMI (Optional accessory, sold separately) Video Cable: MHL Audio Cable (Optional accessory, sold separately) Cable strap • Available accessories and the pictures shown here may differ from the actual contents and the product supplied for your region. For cables that are not supplied with your product, you can purchase them separately. •...

  • Page 7: Getting To Know Your Monitor

    Getting to know your monitor Front view 1. Control buttons 2. Power button Back view 3. D-Sub socket 4. HDMI socket 5. HDMI / MHL socket 6. Audio Line In 7. Kensington lock slot 8. Speakers 9. Headphone jack 10. DC power input jack 10 9 •...

  • Page 8: Connection

    Connection The following connection illustrations are for your reference only. For cables that are not supplied with your product, you can purchase them separately. For detailed connection methods, see page - 12. Getting to know your monitor...

  • Page 9: How To Assemble Your Monitor Hardware

    How to assemble your monitor hardware If the computer is turned on you must turn it off before continuing. Do not plug-in or turn-on the power to the monitor until instructed to do so. 1. Attach the monitor base. Please be careful to prevent damage to the monitor. Placing the screen surface on an object like a stapler or a mouse will crack the glass or damage the LCD substrate voiding your warranty.
  • Page 10 Orient and align the stand arm with the monitor, then push them together until they click and lock into place. Tighten the screw that fixes the stand to the monitor. To secure or release a screw, a screwdriver or a coin is required.
  • Page 11 2. Connect the PC video cable. Either To Connect the D-Sub Cable Connect the plug of the D-Sub cable (at the end without the ferrite filter) to the monitor video socket. Connect the other end of the cable (at the end with the ferrite filter) to the computer video socket.

  • Page 12: Connect The Audio Cable

    3. Connect the audio cable. Connect the audio cable between the socket on the rear of the monitor (Line In) and your computer audio outlet. You may connect headphones to the headphone jack found next to the Line In jack of the monitor. 4.
  • Page 13 Turn on the monitor by pressing the power button on the monitor. Turn on the computer too, and follow the instructions Getting the most from your BenQ monitor on page to install the monitor software. To extend the service life of the product, we recommend that you use your computer's power management function.

  • Page 14: How To Use The Phone Holder

    How to use the phone holder The phone holder is designed to hold your mobile device (e.g. smartphone) when connected to the monitor using the MHL cable. 1. Open the phone holder. Open the cover of the phone holder, and the inner cover will flip open.

  • Page 15: How To Detach The Stand And The Base

    How to detach the stand and the base 1. Prepare the monitor and area. Turn off the monitor and the power before unplugging the power cable. Turn off the computer before unplugging the monitor signal cable. Protect the monitor and screen by clearing a flat open area on your desk and placing a soft item like a towel on the desk for padding, before laying the screen face down on a flat clean padded surface.

  • Page 16: Getting The Most From Your Benq Monitor

    Getting the most from your BenQ monitor To gain the most benefit from your new BenQ LCD monitor, you should install the custom BenQ LCD Monitor driver software as provided on the BenQ LCD Monitor CD-ROM. The circumstances under which you connect and install your BenQ LCD Monitor will determine which process you need to follow to successfully install the BenQ LCD Monitor driver software.

  • Page 17: How To Install The Monitor On A New Computer

    BenQ LCD Monitor is the first ever monitor to be connected to it. If you are adding the BenQ LCD Monitor to an existing computer that has already had another monitor connected to it (and has monitor driver software installed), you should not be following these instructions. You...

  • Page 18: How To Upgrade The Monitor On An Existing Computer

    The BenQ LCD Monitor driver for your model may well function perfectly with other versions of Windows, however, as at the time of writing, BenQ has done no testing of this driver on other versions of Windows and cannot guarantee its operation on those systems.

  • Page 19: How To Install On Windows 8 System

    5. Click the tab and the button. Driver Update Driver 6. Insert the BenQ LCD Monitor CD-ROM into a CD drive on the computer. 7. In the window, select the option Update Driver Software Browse my computer for driver software 8.

  • Page 20: How To Install On Windows 7 System

    5. Click the tab and the button. Driver Update Driver 6. Insert the BenQ LCD Monitor CD-ROM into a CD drive on the computer. 7. In the window, select the option Update Driver Software Browse my computer for driver software 8.

  • Page 21: How To Adjust Your Monitor

    How to adjust your monitor The control panel Name Description Control keys Accesses the functions or menu items displayed on the screen, right next to each key. Power key Turns the power on or off. How to adjust your monitor...

  • Page 22: Basic Menu Operation

    Basic menu operation All OSD (On Screen Display) menus can be accessed by the control keys. You can use the OSD menu to adjust all the settings on your monitor. 1. Press any of the control keys. 2. The hot key menu is displayed. The left three controls are custom keys and are designated for particular functions.
  • Page 23 OSD icon OSD in hot key in main Function menu menu • By default, the key is the hot key for . To change Custom Key 2 Input the default settings, see Customizing the hot keys on page • For Down/Decrease adjustment. •...

  • Page 24: Picture Optimization

    If you wish, you can always adjust the screen geometric settings manually using geometry menu items. To assist you in this endeavour, BenQ has provided a screen test image utility which you can use to check for screen color, grayscale and line gradient display.

  • Page 25: Choosing An Appropriate Picture Mode

    Choosing an appropriate picture mode Your monitor provides various picture modes that are suitable for different types of images. Picture Mode on page 31 for all the available picture modes. Go to for a desired picture mode. If Picture Advanced Picture Mode Low Blue Light preferred, press the first control key (...

  • Page 26: Navigating The Main Menu

    Navigating the main menu You can use the OSD (On Screen Display) menu to adjust all the settings on your monitor. Press any of the control keys to bring up the hot key menu, and press to access the main Menu menu.

  • Page 27: Display Menu

    Display menu Available menu options may vary depending on the input sources, functions and settings. Menu options that are not available will become grayed out. And keys that are not available will be disabled and the corresponding OSD icons will disappear. Mode: Standard Display Auto Adjustment...
  • Page 28 Item Function Range Adjusts the pixel clock frequency timing to 0 to 100 Pixel Clock synchronize with the analog input video signal. See also: Picture optimization on page Not applicable to a digital input signal. Adjusts the pixel clock phase timing to synchronize 0 to 63 Phase with the analog input video signal.

  • Page 29: Picture Menu

    Picture menu Available menu options may vary depending on the input sources, functions and settings. Menu options that are not available will become grayed out. And keys that are not available will be disabled and the corresponding OSD icons will disappear. Mode: Standard Display Brightness...
  • Page 30 Item Function Range Allows video and still photographs to be viewed Color Normal Temperature with natural coloring. This is the factory default color. Applies a cool tint to the image and is factory Bluish pre-set to the PC industry standard white color. Applies a warm tint to the image and is factory Reddish pre-set to the news print standard white color.

  • Page 31: Picture Advanced Menu

    Picture Advanced menu Available menu options may vary depending on the input sources, functions and settings. Menu options that are not available will become grayed out. And keys that are not available will be disabled and the corresponding OSD icons will disappear. Mode: Standard Display Picture Mode...
  • Page 32 Item Function Range Decreases the blue light emitted from the display Low Blue to reduce the risk of blue light exposure to your Light eyes. The value for each mode indicates Low Blue Light how much blue light is decreased compared with the mode.

  • Page 33: Super Resolution

    Item Function Range This feature is provided to allow aspect ratios other than 16:9 Display to be displayed without geometric distortion. Mode The options under will be different depending on the Display Mode input signal sources. Depending on your selection of , different Picture Mode Display...

  • Page 34: Audio Menu

    Audio menu Available menu options may vary depending on the input sources, functions and settings. Menu options that are not available will become grayed out. And keys that are not available will be disabled and the corresponding OSD icons will disappear. Mode: Standard Display Volume...

  • Page 35: System Menu

    System menu Available menu options may vary depending on the input sources, functions and settings. Menu options that are not available will become grayed out. And keys that are not available will be disabled and the corresponding OSD icons will disappear. Mode: Standard Display OSD Settings...
  • Page 36 Item Function Range Sets the OSD menu language. • Language English Settings • Français The language options displayed on your OSD may • Deutsch differ from those shown on the right, depending • Italiano on the product supplied in your region. •...
  • Page 37 Item Function Range Sets the function to be accessed by custom key 1. • Picture Mode Custom Key • Low Blue Light • Display Mode Sets the function to be accessed by custom key 2. Custom Key • Brightness • Sets the function to be accessed by custom key 3.

  • Page 38: Troubleshooting

    Troubleshooting Frequently asked questions (FAQ) The image is blurred. Read the instructions on the link on the CD, and then "Adjusting the Screen Resolution" select the correct resolution, refresh rate and make adjustments based on these instructions. How do you use a VGA extension cable? Remove the extension cable for the test.
  • Page 39 Faint shadow from the static image displayed is visible on the screen. • Activate the power management function to let your computer and monitor go into a low power "sleep" mode when not actively in use. • Use a screensaver to prevent the occurrence of image retention. Is the prompt on the display illuminated in orange? If the LED is illuminated in orange, the power management mode is active.

  • Page 40: Need More Help

    • Increase the volume (volume may be muted or too low) on the external speakers. Sound cannot be muted. • Restart your computer. • Update the graphics and/or audio driver. Need more help? If your problems remain after checking this manual, please contact your place of purchase or e-mail us at: Support@BenQ.com. Troubleshooting...
