Xerox WorkCentre 7232 Specifications

Xerox WorkCentre 7232 Specifications

Hide thumbs Also See for WorkCentre 7232:
Table of Contents

Advertisement

Quick Links

See also: System Administrator Manual , Quick User Manual
OUTPUT SPEED – Printing and Copying
OUTPUT SPEED – printing and copying
Black and White
Up to 32 ppm (pages per minute)
8.5 x 11 in. (A4/210 x 297 mm) LEF,
Up to 16 ppm
8.5 x 14 in. (216 x 356 mm),
Up to 16 ppm
11 x 17 in. (A3/297 x 420 mm)
Color
Up to 10 ppm
8.5 x 11 in. (A4/210 x 297 mm)
Up to 5 ppm
8.5 x 14 in. (216 x 356 mm)
Up to 5 ppm
11 x 17 in. (A3/297 x 420 mm)
FIRST-IMAGE-OUT TIME
Black and White
Color
SYSTEM
Memory
1.2 GB
System Disk
40 GB
WorkCentre 7232
shown with the Two Tray option.
WorkCentre
WorkCentre
®
®
7232
7655
As fast as 15 seconds
As fast as 24 seconds
WorkCentre
shown with High-Capacity Tandem Tray and Office Finisher options.
Up to 40 ppm
8.5 x 11 in. (A4/210 x 297 mm) LEF,
Up to 20 ppm
8.5 x 14 in. (216 x 356 mm)
Up to 20 ppm
11 x 17 in. (A3/297 x 420 mm)
Up to 10 ppm
8.5 x 11 in. (A4/210 x 297 mm)
Up to 5 ppm
8.5 x 14 in. (216 x 356 mm)
Up to 5 ppm
11 x 17 in. (A3/297 x 420 mm)
Print Specifications
®
7232/7242
Detailed Specifications
WorkCentre 7242
WorkCentre
WorkCentre
®
®
7242
7665
1 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WorkCentre 7232 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Xerox WorkCentre 7232

Summary of Contents for Xerox WorkCentre 7232

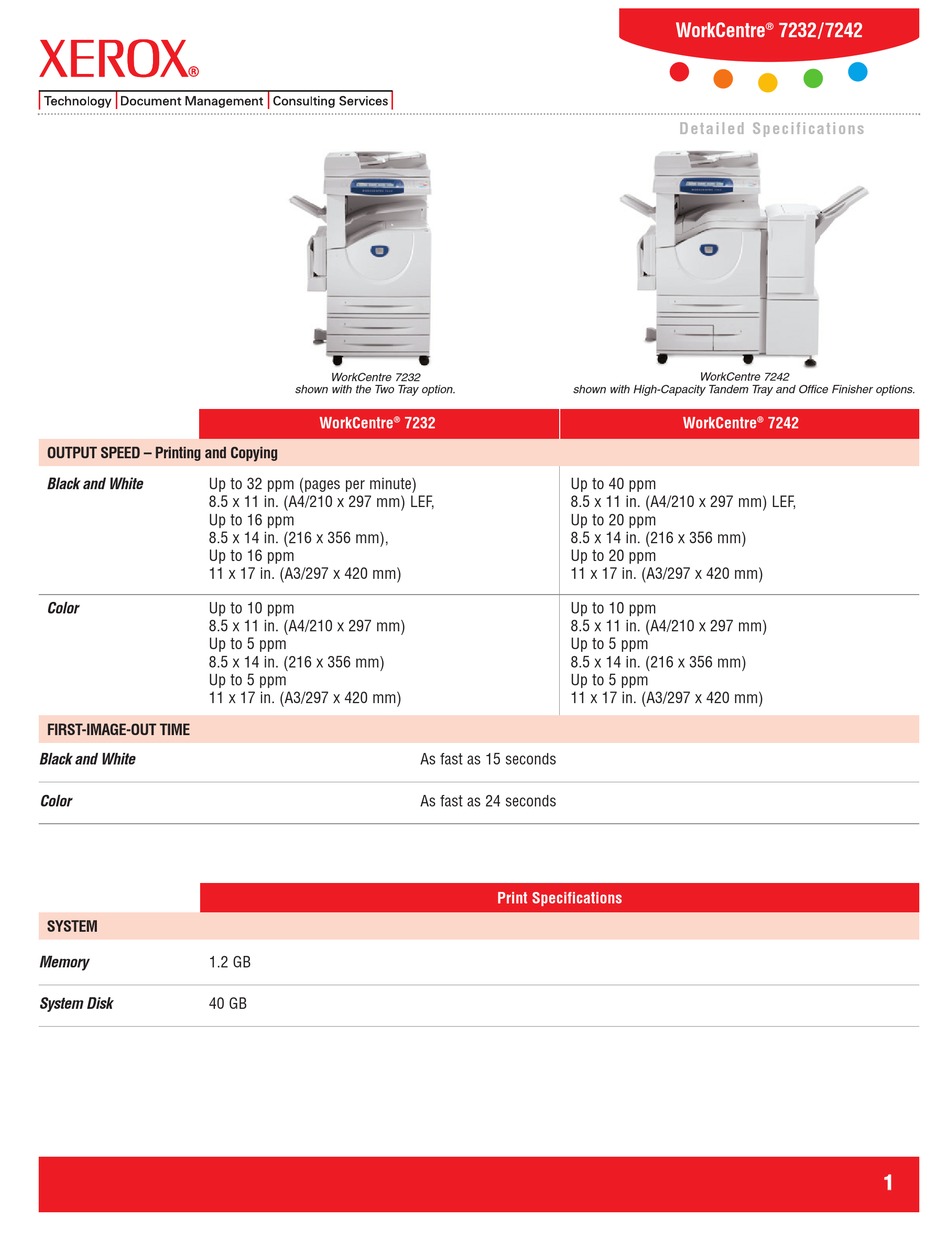

  • Page 1 WorkCentre ® 7232/7242 Detailed Specifications WorkCentre 7232 WorkCentre 7242 shown with the Two Tray option. shown with High-Capacity Tandem Tray and Office Finisher options. WorkCentre WorkCentre ® ® 7655 7232 WorkCentre WorkCentre ® ® 7665 7242 OUTPUT SPEED – printing and copying OUTPUT SPEED –...
  • Page 2 WorkCentre ® 7232/7242 Print Specifications NETWORK PRINTING – Network Controller Processor 667 MHz Printer Languages Adobe ® Postscript ® ™ (optional) (auto sensing/switching) TIFF ® PDF 1.5 ® HP-GL2 ™ ® NETWORK PRINTING – Resolution 600 x 600 x 4 dpi (achieves 1200dpi with resolution enhancement) NETWORK PRINTING –...
  • Page 3 Print Submission Tools • Command prompt LPR/UNIX tool for print submission • Xerox TIFF submission tool supports TIFF and PDF: Supported in Windows 2000/XP/Vista/Windows Server 2005 • Submission Tool with full feature set (includes administration, GUI/TTY print driver and software installation) •...

  • Page 4: Device Management

    ® discovery performed by HP OpenView • Provides the ability to see the current status of discovered Xerox printers/devices under a Xerox PrinterMap and IP Map via color-coded icons • Provides traps and message updates to the OpenView alarm browser and the ability to launch CentreWare Internet...

  • Page 5: Consumables Status

    Provides built-in process intelligence that allows the printing of barcodes on any appropriately configured PostScript Intelligent Barcode printer on the SAP R/3 4.x (or higher) network. Used in conjunction with Xerox Device Types for SAP R/3 Environment Utility (Optional) and Xerox Font Center Barcode Fonts. Utility automatically calculates checksum, placement of start/stop characters,...
  • Page 6 WorkCentre ® 7232/7242 Scan Specifications SCANNING (Optional) Capability Color Scanning, Greyscale, Black and White (Auto Color Detection) Concurrency Scan while the system is printing copy or network print jobs, or while it is transferring scan to network or fax jobs Input Speed Scan at 50 ipm monochrome/45 ipm color (216 x 279 mm/A4 long edge feed) Resolution...
  • Page 7 — ScanSoft PaperPort – image viewing and file management software — ScanSoft OmniPage (for desktop/client installation) – OCR and file format conversion software — Image Retriever – provides fully automated retrieval of scanned images direct from a scan enabled Xerox WorkCentre to individual desktops.
  • Page 8 Finisher output tray selection (top tray or main tray) Secure print on/off Fax Vendors Multiple vendors, certified by the Xerox Business Partners Program For details, visit www.xerox.com FAX (Optional) - Standard with One or Three Line Fax Option ITY (CCITT) group 3 quality/resolution superfine/600x600, super fine/400 x 400, fine/200x200, standard/200x100 dpi Speed/Modem(s) V.34 modem(s): 33,600 bps.
  • Page 9 WorkCentre ® 7232/7242 Fax Specifications FAX (Optional) - Standard with One or Three Line Option (Continued) Fax Reports Activity report Dial directory Transmission confirmation Pending fax Mailbox Fax Receive Mailboxes Up to 200 password-protected mailboxes Auto Dialing Auto redial, Batch send Single Line option Total of 200 speed dials (single-line option) Up to 200 dial groups with up to 200 recipients per group (single line option)
  • Page 10 WorkCentre ® 7232/7242 Copy Specifications COPYING Document Scanner Duplex Automatic Document Feeder with 75-sheet capacity (based on 80 gsm paper) Sides (input:output) 1:1, 1:2, 2:2 and 2:1 Quantity 1 to 999 Resolution 600 x 600 dpi Concurrency Concurrent scanning and printing Digital Imaging Auto color Auto rotation...
  • Page 11 ID Card Copy Foreign Device Interface Interface to third-party access control devices, coin machines and card readers Supports a variety of vending stations available through the Xerox Custom Application Service Device Specifications PAPER HANDLING - Duplex Automatic Document Feeder Capacity...
  • Page 12 WorkCentre ® 7232/7242 Device Specifications PAPER HANDLING - Bypass Tray Capacity* 100 sheets Sizes 3.5 x 3.9 in. (A6/89 x 98.4 mm) to 11 x 17 in. (A3/297 x 420 mm) Weights 16 lb bond to 80 lb Cover/55 to 216 gsm Types Same as front-loading trays plus label stock and envelopes PAPER HANDLING - Front-Loading Paper Tray (Standard)
  • Page 13 WorkCentre ® 7232/7242 Device Specifications PAPER HANDLING - Input Tray Options - Two Tray Option (Tray One plus Two Tray Module) (Continued) Types Plain Paper Recycled Bond Custom Type 1 through 5 Lightweight Heavyweight Extra Heavyweight Transparency Heavyweight Gloss Labels Gloss Extra Heavyweight Gloss Punched...
  • Page 14 WorkCentre ® 7232/7242 Device Specifications PAPER HANDLING - Input Tray Options - High-Capacity Tandem Tray Option (Continued) Types Plain Paper Recycled Bond Custom Type 1 through 5 Lightweight Heavyweight Extra Heavyweight Transparency Heavyweight Gloss Labels Gloss Extra Heavyweight Gloss Punched Letterhead Pre-printed Envelopes...
  • Page 15 Controls and tracks black and color copy and print usage, supports up to 1,000 user accounts Note: Option to upload/download account and usage data via direct connection using Windows-based software. Limits user to black-only copy and print Accounting Control Xerox Standard Accounting Job based accounting Third-party integration Supports Foreign Device Interface Active directory user profile—Controls color copy and print usage...

  • Page 16: Basic Configurations

    WorkCentre ® 7232/7242 Device Specifications ACCOUNTING - Xerox Standard Accounting Tracking Copy, Print, Fax and Scan usage Accounting Up to 1,000 User accounts (User ID) Up to 500 General accounts (Client) Up to 750 Group accounts (Department) Features Enable/disable via the web UI or the GUI in tools, admin can manage the feature remotely via the web UI, Data can be exported via a CSV file, user required to enter XSA ID into the print driver when submitting a print job, similar to secure print.

  • Page 17: Electrical Requirements

    WorkCentre ® 7232/7242 Device Specifications ACCESSORIES Office Finisher Integrated Office Finisher One-line fax option Three-line fax option Foreign Device Interface Network Accounting Enablement Scan to Email with Scan to Mailbox Scan Performance Kit Network Scanning With Email PostScript Kit Fax Server Kit Data Security Kit Scan to PC Desktop Client Software (Professional or SE edition) External High Capacity Feeder...

  • Page 18: Dimensions And Weight

    XEROX EXTENSIBLE INTERFACE PLATFORM™ (EIP) Xerox Extensible Interface Platform (EIP) is an embedded software platform built with state of the art web technologies. This platform provides the means for software developers to quickly build solutions that are more intuitive and user- friendly for the office workers.

  • Page 19: Smart Kits

    ® , CentreWare ® and Copier Assistant are trademarks of Xerox Corporation. In support of Xerox’s environmental leadership goals, these models may contain some recycled components that are recondi- tioned. ENERGY STAR ® is a U.S. registered mark. As an ENERGY STAR ®...
